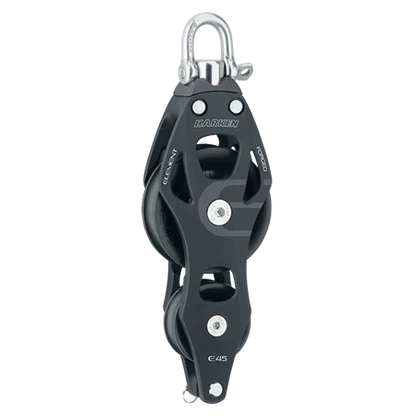

Harken Aluminum Element Fiddle Blocks 45mm, 60mm, 80mm
$172.90
(M13530E)
Aluminum Element Fiddle Block available in 45, 60 and 80mm.
Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Specifications of fiddle blocks
| 45mm | 60mm | 80mm | |
| Sheave Ø (mm) |
45 mm
|
60mm | 80mm |
| Length (mm) |
130 mm
|
165 mm
|
229 mm
|
|
Weight (g)
|
126 g
|
240 g
|
610 g
|
|
Shackle pin Ø (mm)
|
6 mm
|
6 mm
|
10 mm
|
| Maximum line Ø (mm) |
8 mm
|
10 mm
|
14 mm
|
|
Maximum working load (kg)
|
700 kg
|
1100 kg
|
2200 kg
|
|
Breaking load (kg)
|
Specifications of fiddle blocks with becket
| 45mm | 60mm | 80mm | |
| Sheave Ø (mm) |
45 mm
|
60mm | 80mm |
| Length (mm) |
146 mm
|
181 mm
|
254 mm
|
|
Weight (g)
|
130 g
|
250 g
|
640 g
|
|
Shackle pin Ø (mm)
|
6 mm
|
6 mm
|
10 mm
|
| Maximum line Ø (mm) |
8 mm
|
10 mm
|
14 mm
|
|
Maximum working load (kg)
|
700 kg
|
1100 kg
|
2200 kg
|
|
Breaking load (kg)
|

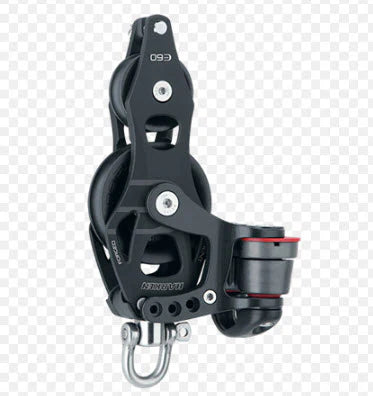

Specifications of fiddle blocks with becket and Cam
| 45mm | 60mm | ||
| Sheave Ø (mm) |
45 mm
|
60mm | |
| Length (mm) |
146 mm
|
181 mm
|
|
|
Weight (g)
|
245 g
|
370 g
|
|
|
Shackle pin Ø (mm)
|
6 mm
|
6 mm
|
|
| Maximum line Ø (mm) |
8 mm
|
10 mm
|
|
|
Maximum working load (kg)
|
550 kg
|
550 kg
|
|
|
Breaking load (kg)
|
