Viper Electric Drum Anchor Winch

$2,361.91
(07601L)

Click here to read our blog post about this product!

Viper is also the worlds first anchor winch company to offer a 5 YEAR WARRANTY!

Please select a model above -

Viper Micro Series II 1000 Electric Drum Anchor Winch

At last an Anchor Winch that fits even the smallest tinnies, bass boats & bow riders, with the same power and performance of the Viper Pro Series II 1000! The Viper Micro Series II 1000 winch travels at 40 metres per minutes so you can get right on top of your GPS mark before you drift away waiting for you anchor to hit bottom. Constructed from 8mm marine grade 316 stainless stell and we only use the highest output performance and torque electric motors on the market.

Max retrival rate: 36 mtrs per minuteViper Pro Series II 1000 Anchor Winch Submersible 3002IN

Max fall rate: 40 mtrs per minute

Vessel length: 4-8m / 12-26ft

Power supply (DC): 12V

Motor: Commercial 1000W stainless steel 12V motor

Max load: 180kgs

Working load: 75kgs

Mounting: Anchor well, Deck mount & Cabin mount using Hawse pipe 30023

Weight: 13kgs

Well clearance req: W 22cm L 37cm H 21cm

Comes with rope and chain on a reel

Viper Micro Series II 1000 Electric Drum Anchor Winch Dimensions

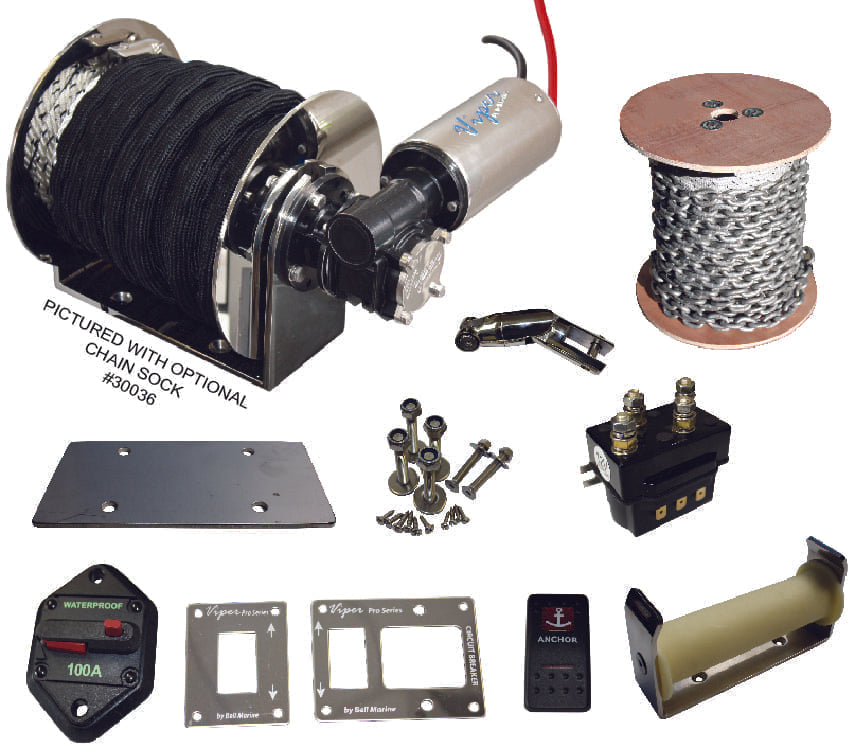

Viper Pro Series II 1000 Electric Drum Anchor Winch

At last an Anchor Winch that is as fast as free fall but without the stress! The Viper Pro Series winch travels at 45 metres per minute so you can get right on top of your GPS mark before you drift away waiting for you anchor to hit bottom. Constructed from 8mm marine grade 316 stainless steel, hand polished to a 2000 grid mirror finish. The electric motors are manufactured inhouse to stringent QC requirements.

Please note: Cables are already attached to tbe motor and water tested, so there is no need to removed caps that are not sealed properly!

Max retrival rate: 40 mtrs per minuteViper Pro Series II 1000 Anchor Winch Submersible 3002IN

Max fall rate: 45 mtrs per minute

Vessel length: 5-8m / 16-26ft

Power supply (DC): 12V

Motor: Commercial 1000W solid stainless steel 1 piece shaft fully constructed from 8mm plate 316 stainless steel with stainless steel support bearings

Max load: 180kgs

Working load: 75kgs

Mounting: Anchor well, Deck mount & Cabin mount using Hawse pipe 30023

Weight: 15.6kgs

Well clearance req: W 40cm L 35cm H 25cm

Fixing base size: 25.5cm x 12cm

Comes with rope and chain on a reel

Viper Pro Series II 1000 Electric Drum Anchor Winch Dimensions

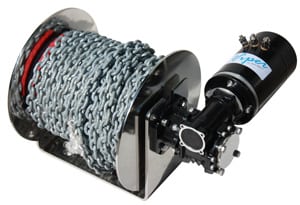

Viper Pro Series II 1500 Electric Drum Anchor Winch

The mother of all anchor winches! 1500 Watts of power and constructed from 8mm plate stainless steel this winch will handle even the toughest commercial applications up to 36ft vessels. At last an Anchor Winch that is as fast as free fall but without the stress! The Viper Pro Series winch travels at 75 metres per minute so you can get right on top of your GPS mark before you drift away waiting for you anchor to hit bottom. Constructed from 8mm marine grade 316 stainless steel and we only use the highest output performance and torque electric motors on the market.30003W

Max retrival rate: 55 mtrs per minute

Max fall rate: 75 mtrs per minute

Vessel length: 6-12m / 20-39ft

Motor: Commercial 1500W motor baseplate 8mm marine grade stainless steel 1 piece

Holding capacity at anchor: 3800kgs

Rope capacity: 100mtrs 8mm or 200mtrs 6mm double braid plus 10 mtrs 8mm short link

Diameter of drum: 300mm

Mounting: Anchor well, Deck mount & Cabin mount using Hawse pipe

Weight: 25.5kgs

Well clearance req: W 48cm L 45cm H 33cm

Fixing base size: 25.5cm x 12cm

Comes with rope and chain on a reel

Viper Pro Series II 1500 Electric Drum Anchor Winch Dimensions
