Engine Control Cables Gear Throttle 40 series Heavy Duty
$402.50
(19120B)
40 series control cables are suited where heavy use or high loads are encountered.
Typical installations include jet drive bucket control, commercial and industrial applications.

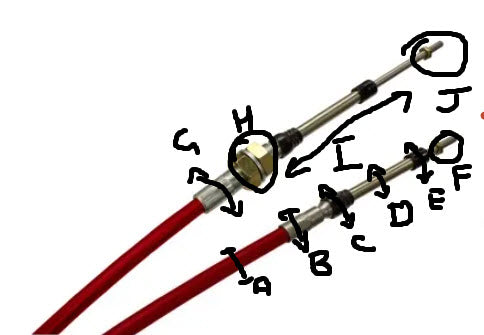

Specifications:
• Stainless steel rod ends, anti-corrosive sleeve and hub
• The inner cable has a 100mm nominal travel.
44C, clamp saddle notches allow the fitting of saddles over the outer at each end.
On application (allow 2-3 weeks) we can do clamp end on one end and bulkhead nuts that allow bulkhead mounting on the other end.
1/4"-UNF (28 threads per inch) UNF thread on both ends.
• Stainless steel armoured core
• Wire strand reinforced outer jacket, 10.8mm O.D.
• 200mm minimum bend radius
These are often referred to as 'Morse Cables'
If another increment is required let us know and there is a 2.5 week wait for production.
These cables are larger diameter than standard 30 series cables and as such, generally require adaptor kits to fit standard controls.
