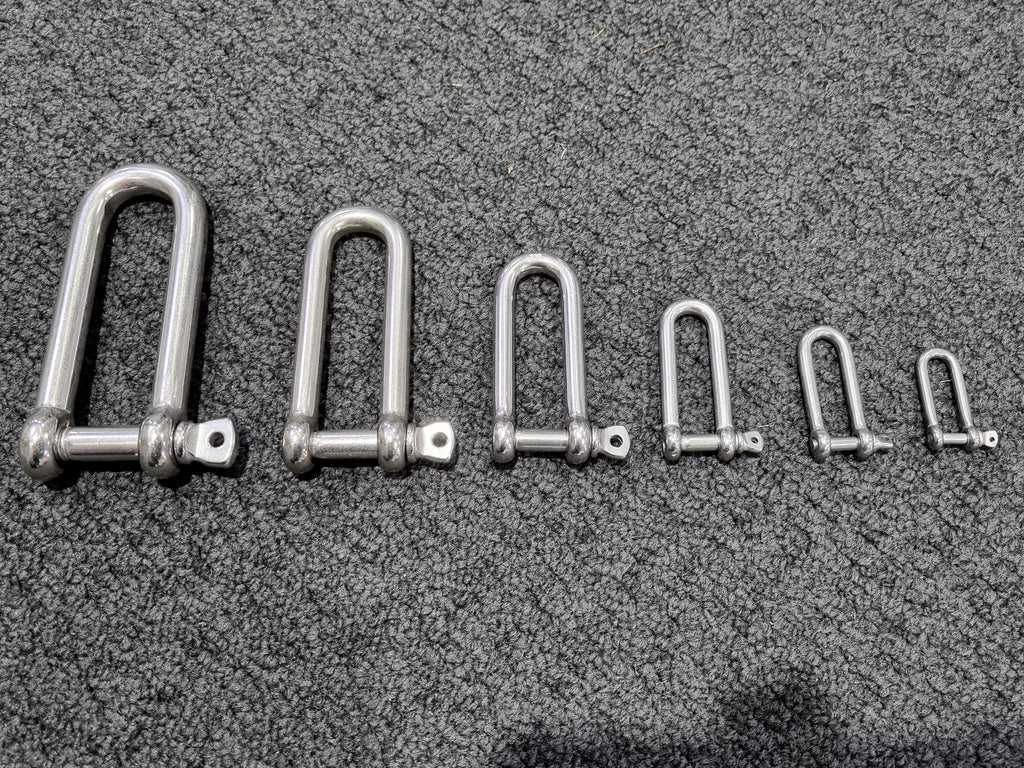

Stainless Steel Shackle - Deep Throat (Long dee) - (6 sizes)

$7.22
(06005)

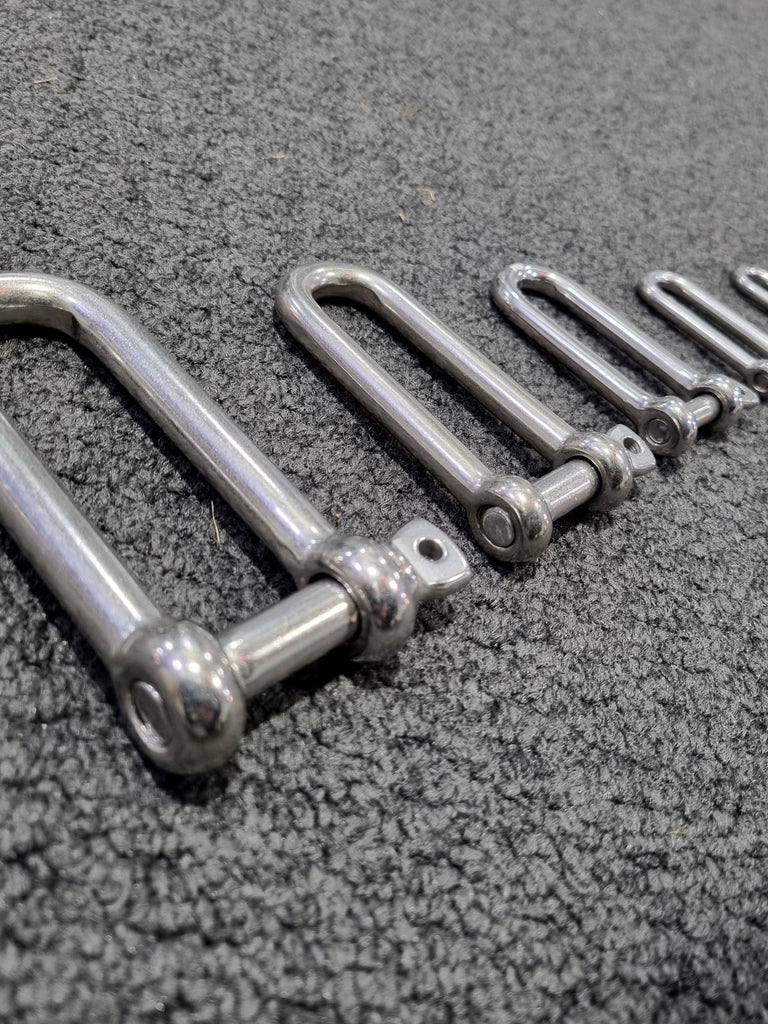

316 Stainless steel construction with an extra deep throat / Long dee shackle.

Ideal where your chain or wire is a little bit too short or your shackle has to reach over a longer area - for example at the top of a sail. The rounded cross section helps alleviate any friction.

The sizing refers to the diameter of the thread of the pin.

1st measurement is the pin diameter 2nd is the internal measurement (bearing point to bearing point)

4mm pin x 31mm L internally approx breaking strain = 800kg (06005)

5mm pin x 37mm L internally approx  breaking strain = 1000kg (06006)

6mm pin x 46mm L internally approx  breaking strain = 1500kg (06007)

8mm pin x 60mm L internally approx  breaking strain =3100kg (06008)

10mm pin x 75mm L internally approx breaking strain = 4800kg  (06009)

12mm pin x 90mm L internally approx  breaking strain = 6500kg (06010)
