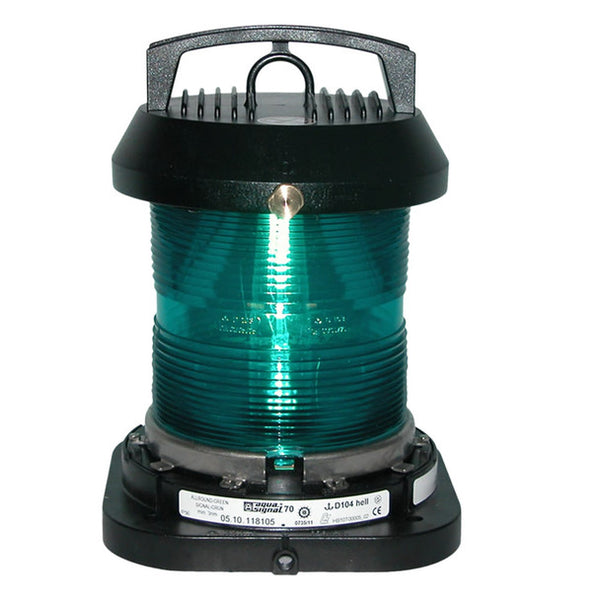

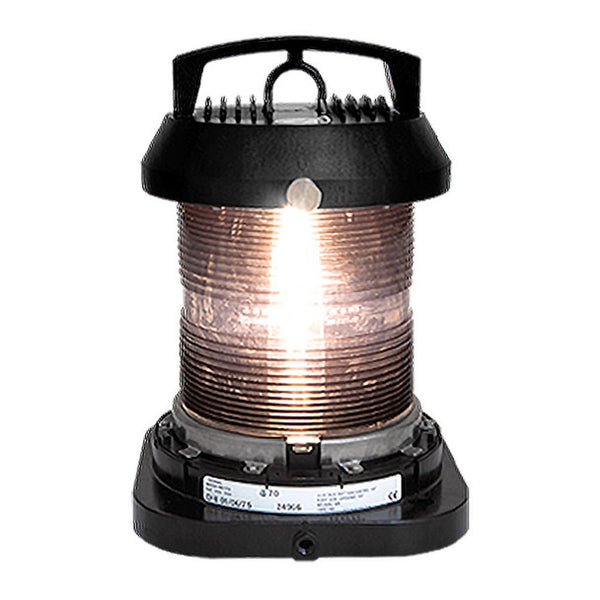

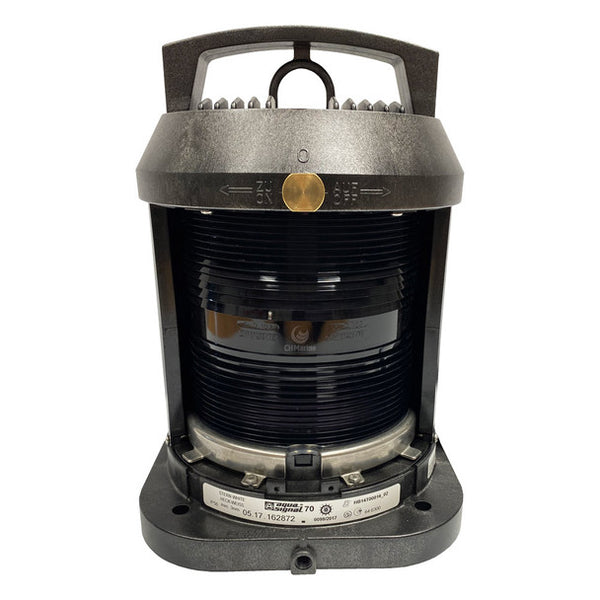

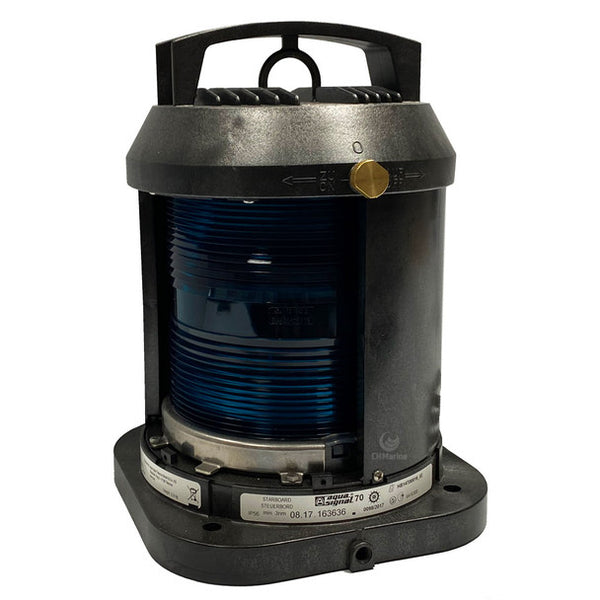

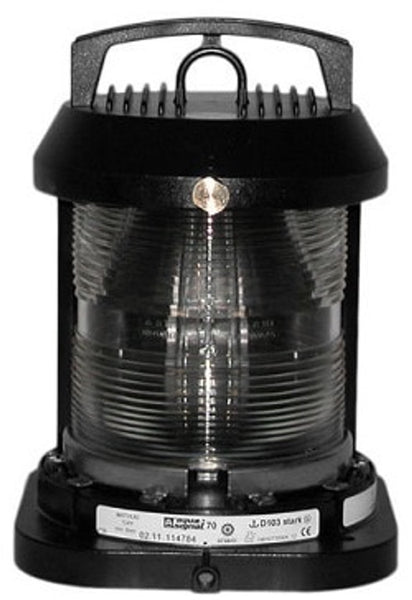

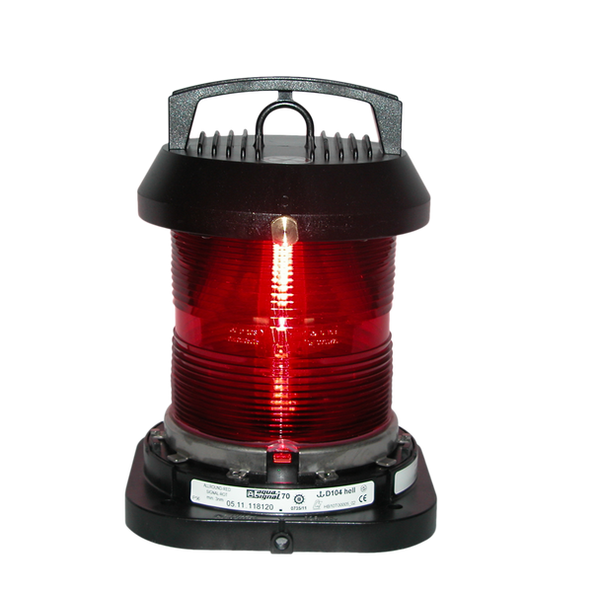

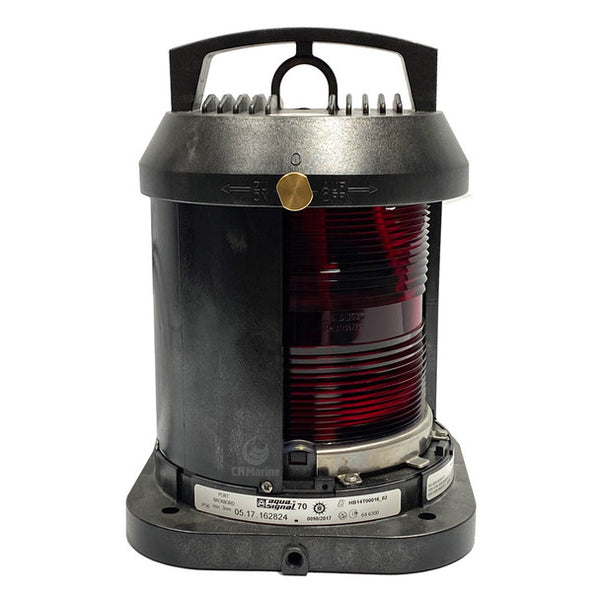

Series 70 Navigation Lights Single

$879.06
(M10058A)

Unbreakable and extremely reliable

Application


  • All vessels ≥ 20 m in length. Lights marked may also be used on inland waterways without limitation of ship´s length


Housing

  • Polycarbonate, glass fibre reinforced, other components of non-corrosive materials. Housing self-ventilated. Nonmagnetic, seawater resistant


Housing colour

  • Matte black


Electric

  • Conus inclusive 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II


Lamp

  • Easy to change special tungsten bulb


Cable insert

  • Special cabe gland metric pressure screw M24 x 1.5 with protection against buckling


Mounting

  • Base flange attachment, 4 screws (not included). Allround lights may also be hoisted. Additional mounting aids see drawing


Approvals

  • International according to IMO Colreg 1972, in Scandinavian countries too, in Germany through BSH, other countries in particular see list of approvals

  • US-Coastguard, China Classification Society. These lights may only be used on ships flying the flags of the USA or P.R. China


Min. visibilities

  • 3 n.m., masthead light 6 n.m., manoeuvre 5 n.m


Optics

  • Seawater resistant, special plastic Fresnel lens
