Seaview 5" and 16" Aft leaning Radar mounts universal
$395.60
()

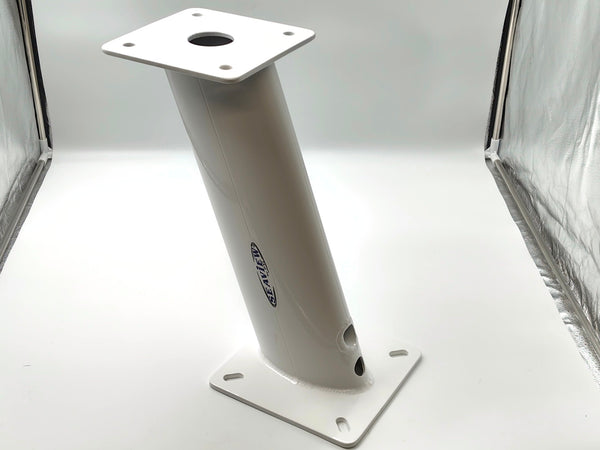

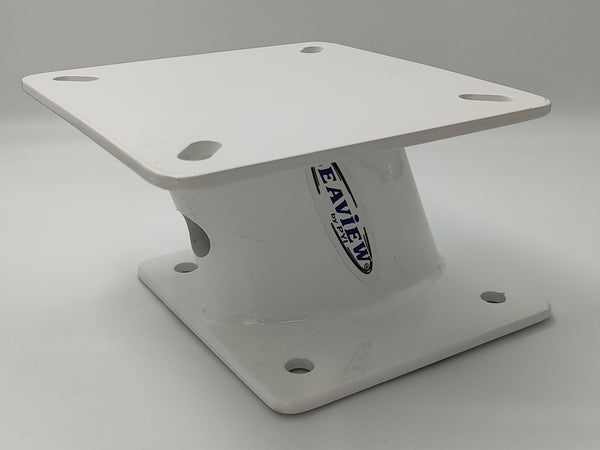

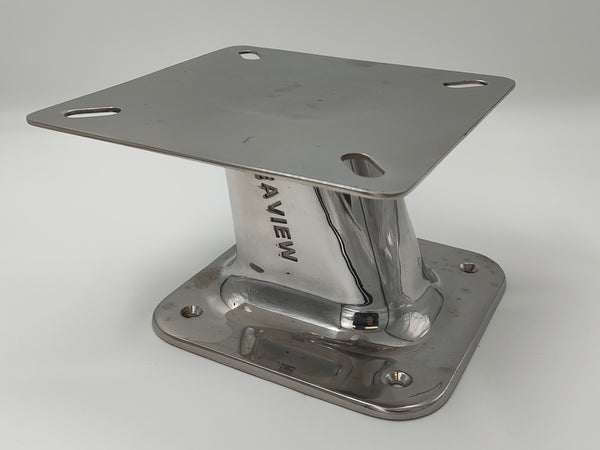

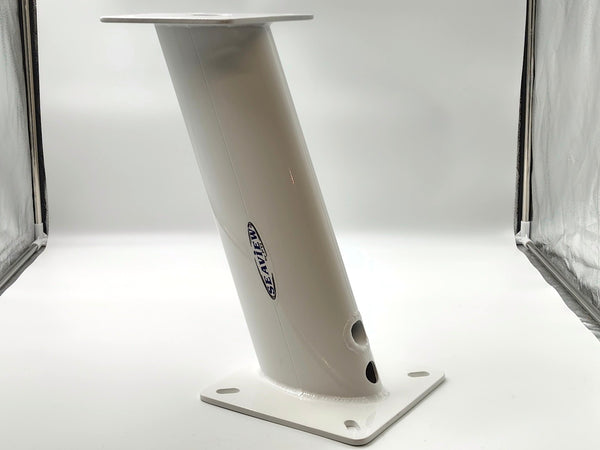

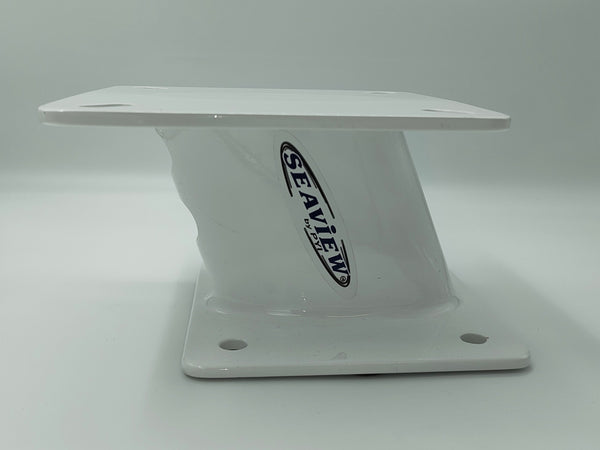

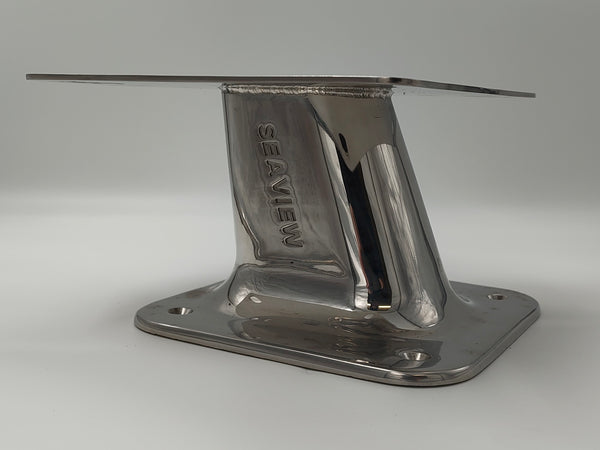

Thes 5" or 16" tall Seaview aft leaning radar mount is made of highly polished 316 stainless steel or powder coated Aluminium.
The top plate is welded on and pre-drilled for the radar types and models listed below.
The base plate of the mount measures 7" x 7".
This mount is compatible with Seaview's line of stainless steel light bars.
Holes on aft side of mount allow for cable routing and the optional lightbar.
The PMA-5U-7L or PMA-16U7L mount with integral top plate can be used with most closed dome radars.
The top plate has slotted mounting holes which will accept the following radomes:
• Furuno 15" - 19" radomes, DRS4D, and GYRO
• Geonav 24" radomes
• Koden 18" radomes
• Lowrance 18" radomes, and LRA 2000
• Lorenz 12" - 20" radomes
• Northstar 18" radomes
• Seiwa 12" - 23.5" radomes
• Simrad 18" radomes
• Sitex 12" - 24" radomes
• Tech Marine 12" - 20" radome
Base Dimensions 175 x 175mm (7" x 7") 4 pre drilled mounting holes.
Top Dimensions 200 x 200mm (8" x 8") 4 predrilled mounting slots for radar.
Height 125mm (5") 0r 400mm (16")
Rake 10° Aft
