Lay Flat Hose - water - also chafe guard for over ropes

Plasticized reinforced lay flat hose available in 3 sizes - because of it's thinner walls it is often used over mooring lines to minimize chafe, or of course hosing.

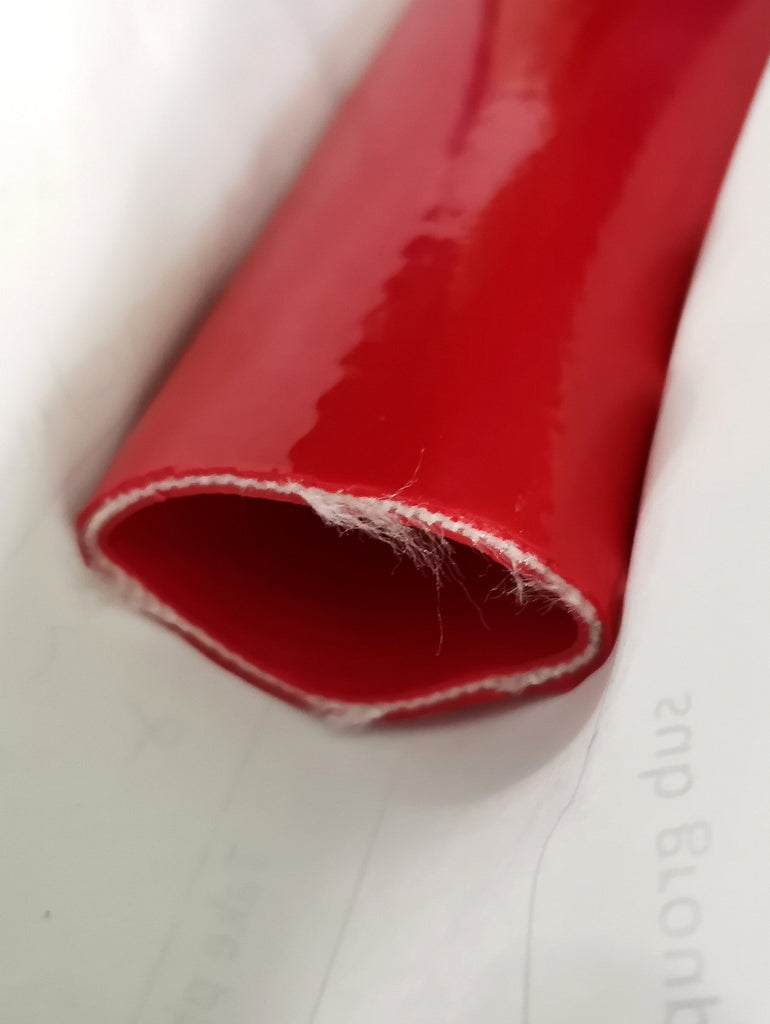

This is a multi lamination hose (Inner tube, braid reinforcing, outer cover) Designed for low pressure discharge of aqueous liquids compatible to P.V.C. The hose is light weight, supple and convenient to handle. The purpose for his hose is for open end discharge at pressures not exceeding our diameter to pressure and chemical resistance recommendations chart. (50 psi)

Suggested Application:
Open end discharge and low pressure transfer of Aqueous liquids.

Min Working Temp (C): -26
Max Working Temp (C): +66

Tube Material:PVC
Reinforcement: Polyester Yarn
Cover Material: PVC

Available in (internal diameter)

M14602G - suits 25mm (1") hose tail and measures approx 40mm wide when flat.  For anti-chafe use over rope we would normally thread up to 14mm diameter rope through on a short length.

M14602H - suits 38mm (1 1/2") hose tail and measures approx 60mm wide when flat.  For anti-chafe use over rope we would normally thread up to 20mm diameter rope through on a short length.

M14602J - suits 63mm (2 1/2") hose tail and measures approx 100mm wide when flat.  For anti-chafe use over rope we would normally thread up to 32mm diameter rope through on a short length.
