Rudder angle meter Gauge and Rudder Sensor 12 to 24v
$177.45
$398.84
(21717)
Price includes gauge and sender WITH both parts accepting of 12volt and 24volt

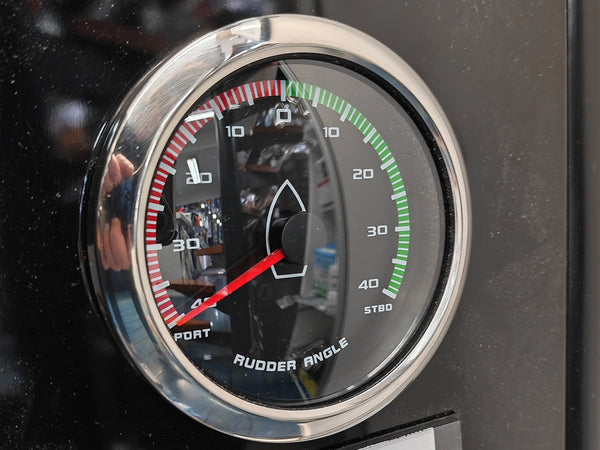

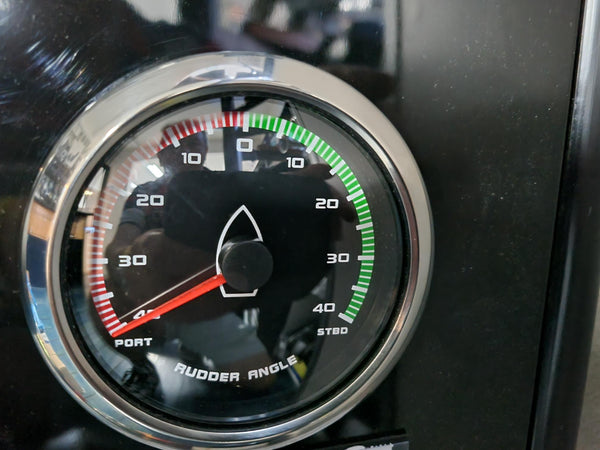

Easy vision rudder angle meter and a simple to fit sender.
GAUGE
• Double layer reinforced anti-fogging lens.
• Plug 'n Play multi-plug socket lead supplied (100mm).
• Waterproof rating of IP67.
• CE Certified.
Display Range: Left - Right
OHMS: 0-190
Cut Out: Dia. 85-87mm
Volts: 12V/24V
Bezel Colour: Black
Display Colour: Black
Sensor
Type: Single Gauge
OHMS: 0-190
Connector rod from rudder to sensor bar is necessary and because this distance is always variable for every boat, a simple rod with a right angle bend on each end is made up by the boat owner, if the sender bar is not long enough for those with larger rudders/quadrants.
