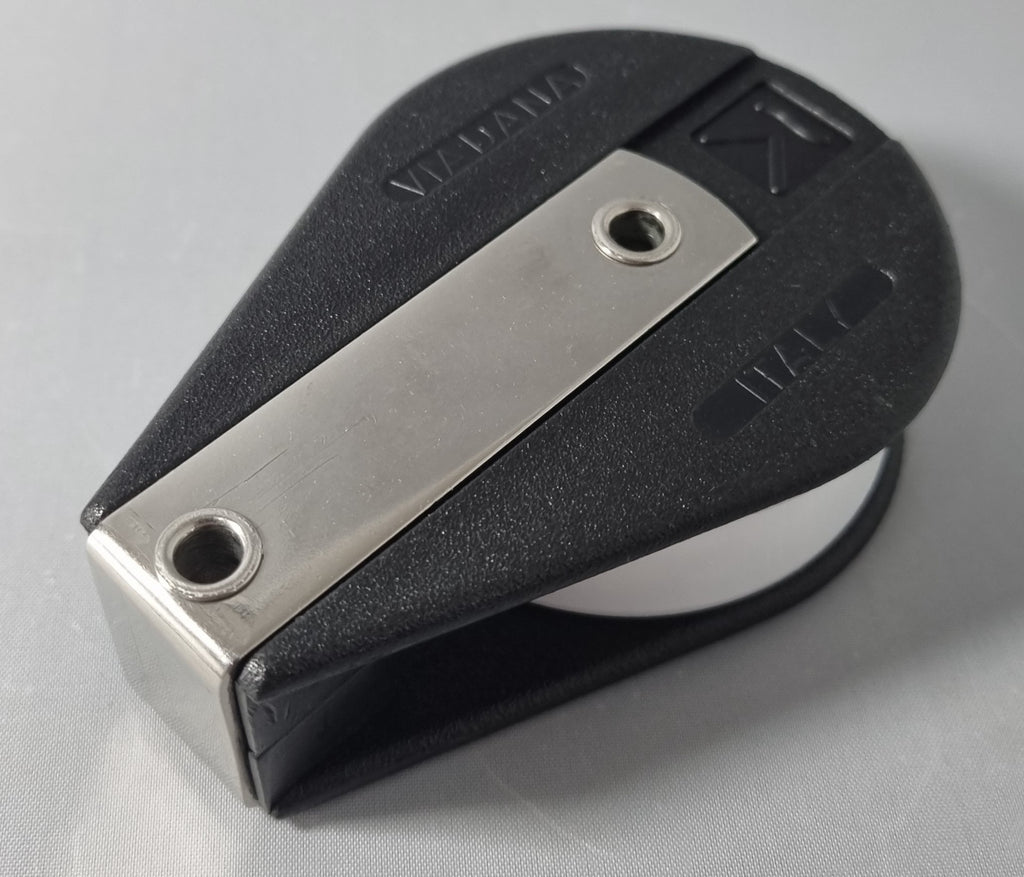

Pulley Block V Range for up to 12mm Rope (9 styles)
An Italian series of pulley block that stretches across the range of solid yet practical blocks with S/S Strapping, Fiberglass Cheeks and Nylon Sheaves.
Maximum Breaking load 1350 kg (working load generally a third of that) accepts up to 12mm diameter rope and a sheave Diameter of 57mm. Block length without top shackle or add-ons 90mm.
Pulleys with a shackle head have a 3 way universal head design, meaning they can be fixed in either direction or if collar is slipped off full 360 degree swiveling.
A becket is where the rope starts - so a single block with a becket has a upstand at the opposite end to the attachment shackle.
A double block has a sheave side by side, while a fiddle block has a sheave above a sheave.
