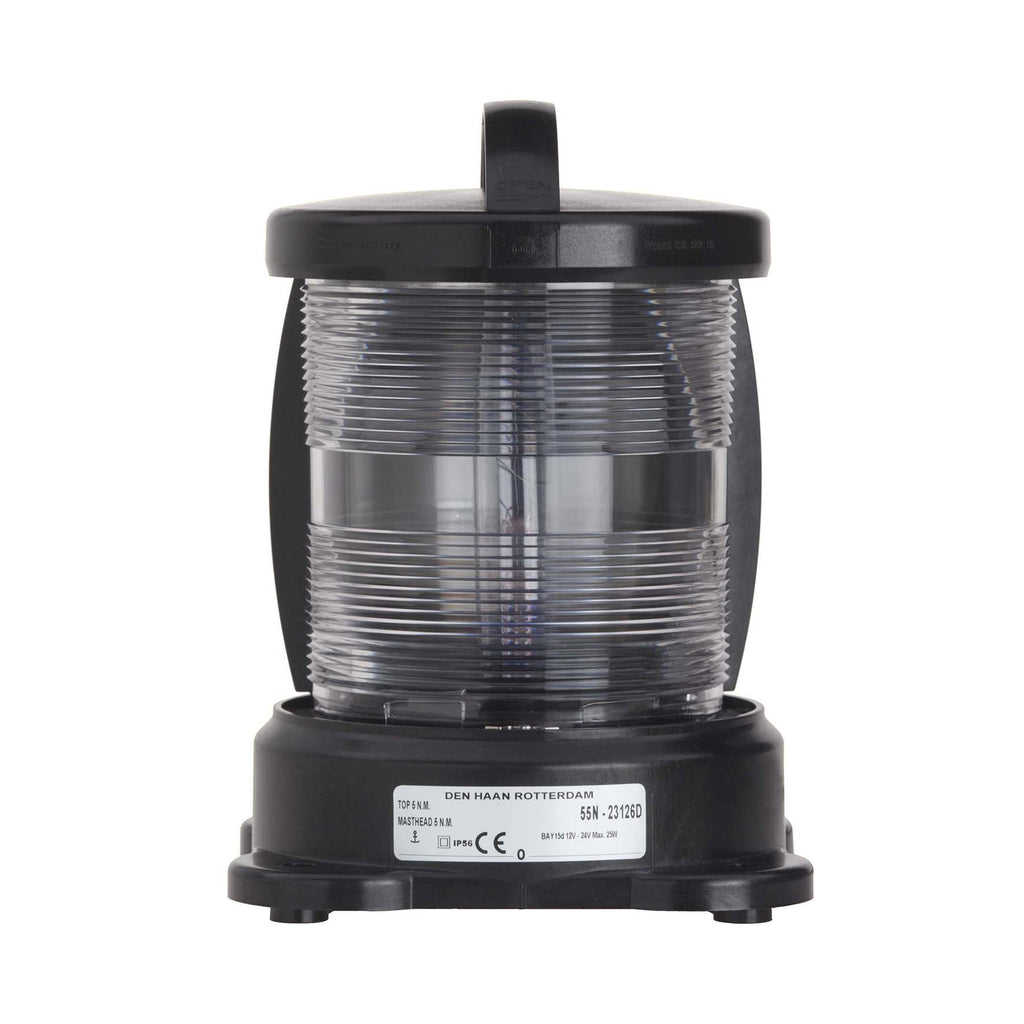

Series 55 Navigation Lights

Series 55 Navigation Lights

$421.65 NZD

Unbreakable and extremely reliable

Application


  • For all seagoing vessels with a length less than 50 metres

  • For all vessels in Rhine and (European) Inland navigation

  • NATO classification


Materials

  • Matt black polycarbonate reinforced with fibreglass

  • Corrosion-free, seawater resistant, non-magnetic

  • Fresnel polycarbonate lens, shock resistant


Wiring

  • Cable gland PG13, from below or side


Housing

  • Polycarbonate, glass fibre reinforced, other components of non-corrosive materials. Nonmagnetic, seawater resistant


Housing colour

  • Matte Black


Electric

  • Conus inclusive 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II


Lamp

  • Easy to change tungsten bulb with socket BAY 15d. Light sources installed


Cable insert

  • PG 13.5 with buckling protection


Mounting

  • Base flange attachement, 4 screws Ø8 mm (not included). Allround lights may also be hoisted when 2 halyard hooks are attached (not included). Additional mounting aids see drawing


Approvals

  • International according to IMO Colreg 1972, in Germany through BSH, other countries in particular see list of approvals


Min. visibilities

  • 2 n.m., masthead light 5 n.m


Optics

  • Seawater resistant special plastic Fresnel lens
