Ball Valve Bracket Mount

$79.99
(13405C)

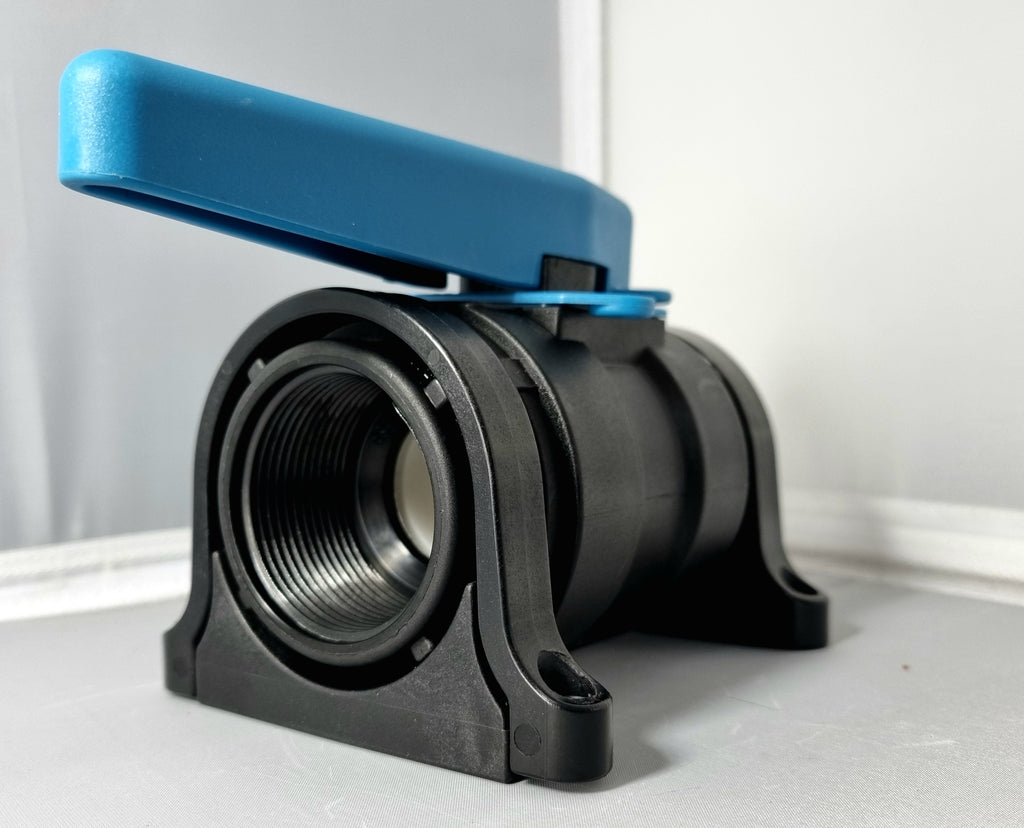

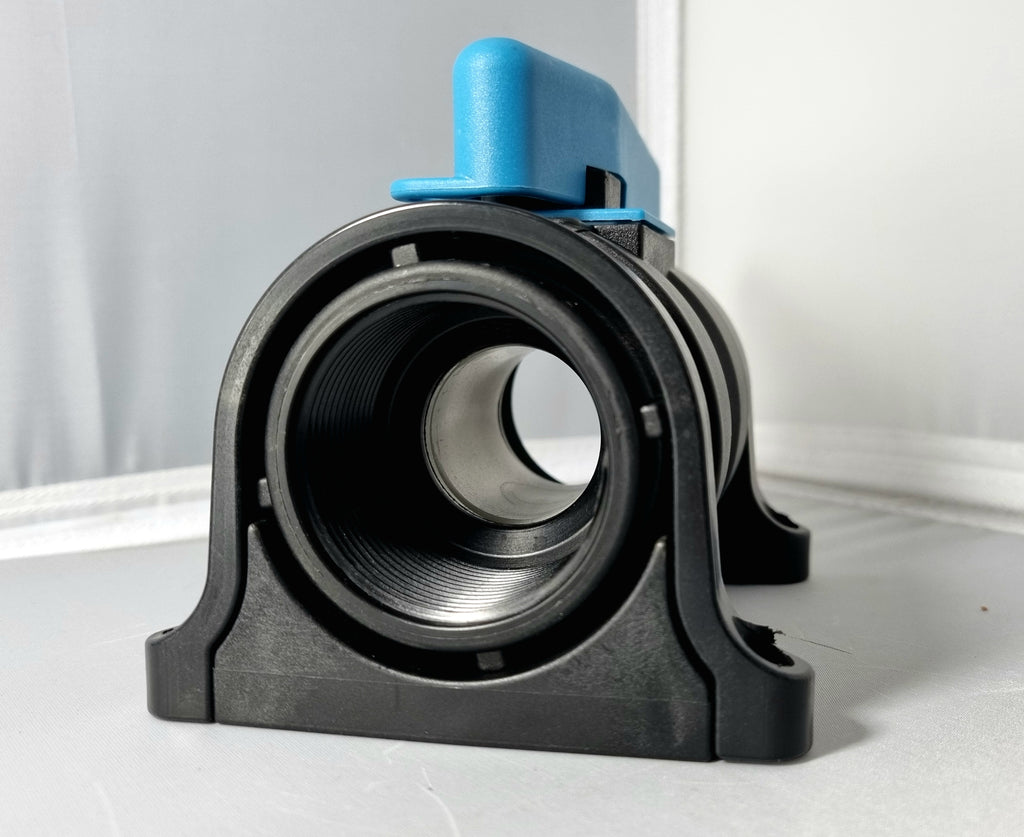

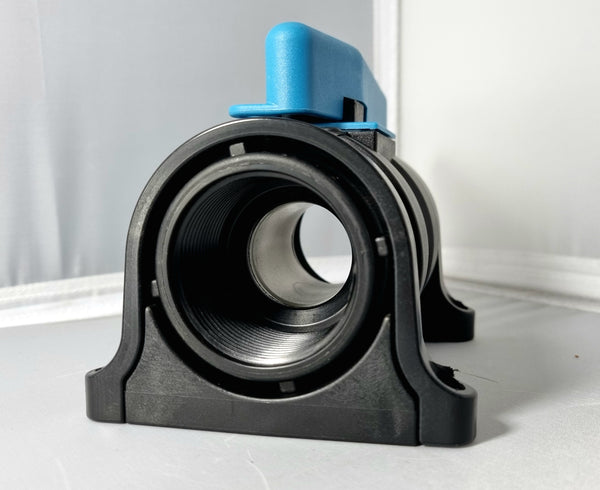

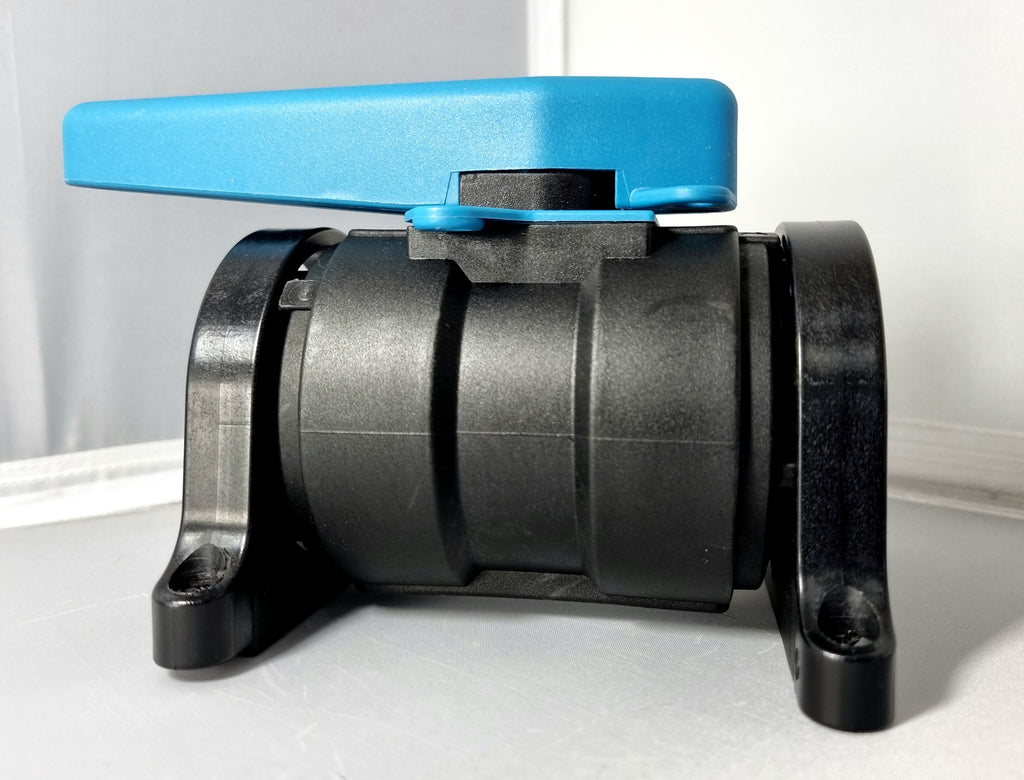

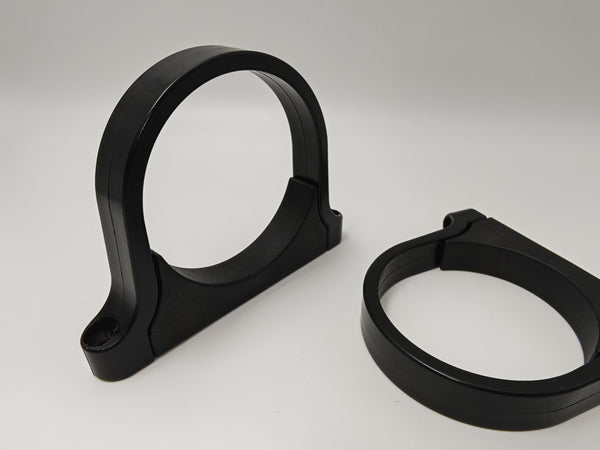

Our range of Marine Dept (& Det Norske Veritas) approved glass fibre impregnated ball valves are at this stage available in 1 1/4" and 1 1/2" as wall or floor mount units so you can fasten them to a flat surface.  Pictured with removable end mountings.

A 1 1/4" BSP thread (sometimes referred to as 32mm) will measure a maximum of 42mm on the outside of the threaded pipe, while the internal of the female end of the valve will measure 39mm.

A 1 1/2" BSP thread (sometimes referred to as 38mm) will measure a maximum of 49mm on the outside of the threaded pipe, while the internal of the female end of the valve will measure 45mm.

We expect other sizes becoming available.
