Battery Box 5 sizes

Battery Box

Made of rigid polypropylene; impervious to battery acid.
Comes with battery strap to run over the lid.

Gaps under lid allow cables to be connected while lid is secured. Internal measurements are internal of the bottom half which accommodates the battery. External measurements include the bottom half and the protrusions on the lid that allow the battery cables to pass through.

Material thickness approx 3mm.

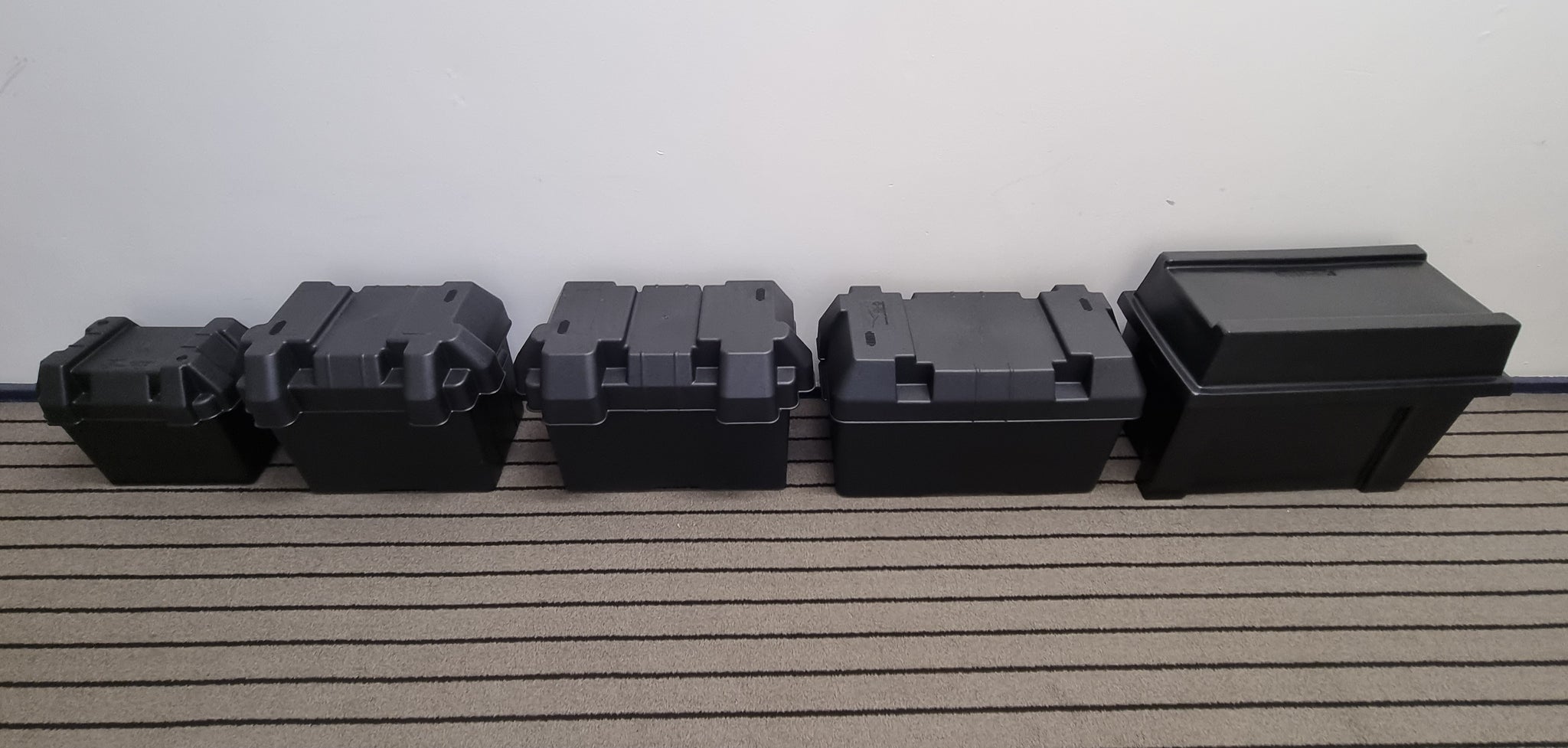

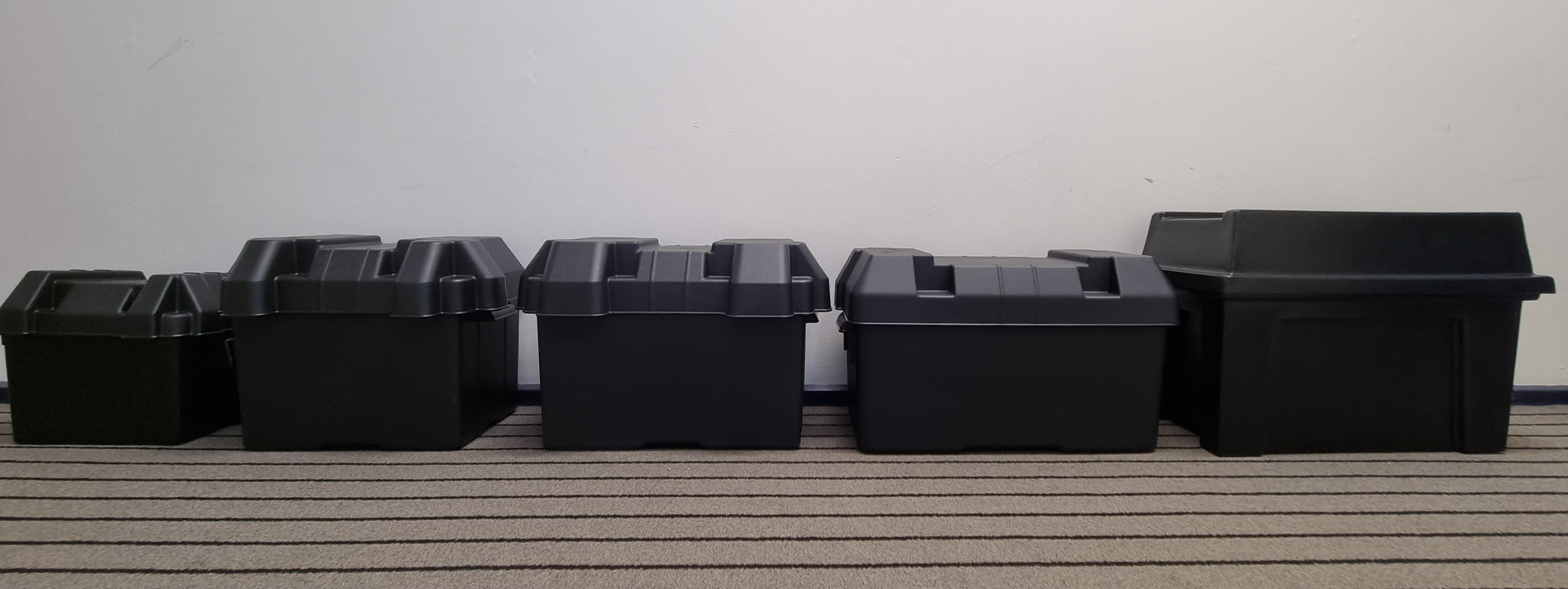

5 sizes available

- X Small Internal measurements:          209(L) x 139(W) x 200(H)

               External measurements:          275(L) x 190(W) x 220(H)

               (includes wire access indents and lid)

- Small Internal measurements:             270(L) x 180(W) x 205(H)

               External measurements:          360(L) x 235(W) x 260(H)

               (includes wire access indents and lid)

- Large  Internal Measurement:             330(L) x 180(W) x 205(H)

             External measurements:          420(L) x 235(W) x290(H)

               (includes wire access indents and lid)

- X Large Internal measurements:          395(L) x 185(W) x 194(H)

                External measurements:          450(L) x 235(W) x 260(H)

               (includes wire access indents and lid)

- XX Large  Internal measurements:       350(L )x 185(W) x 280(H)

                   External measurements:       000(L) x 000(W) x 000(H)

               (includes wire access indents and lid)
