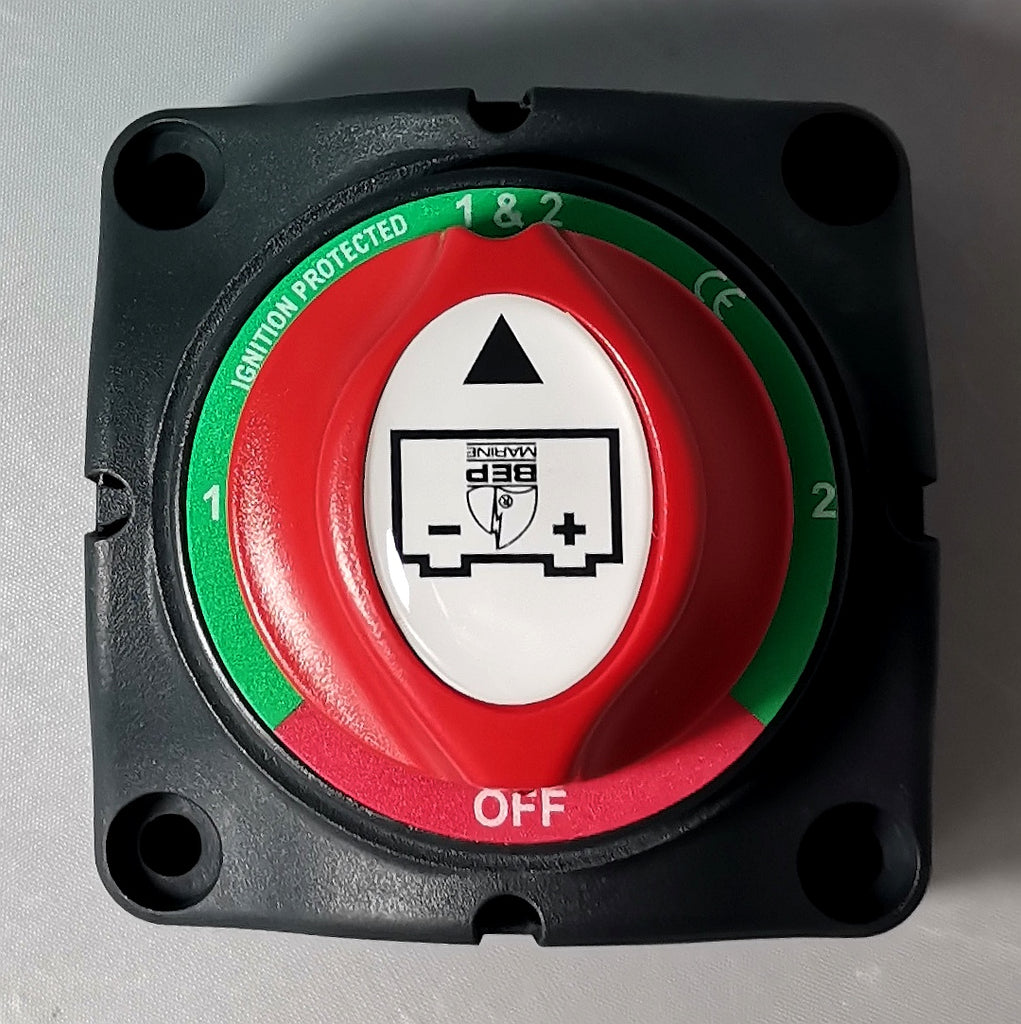

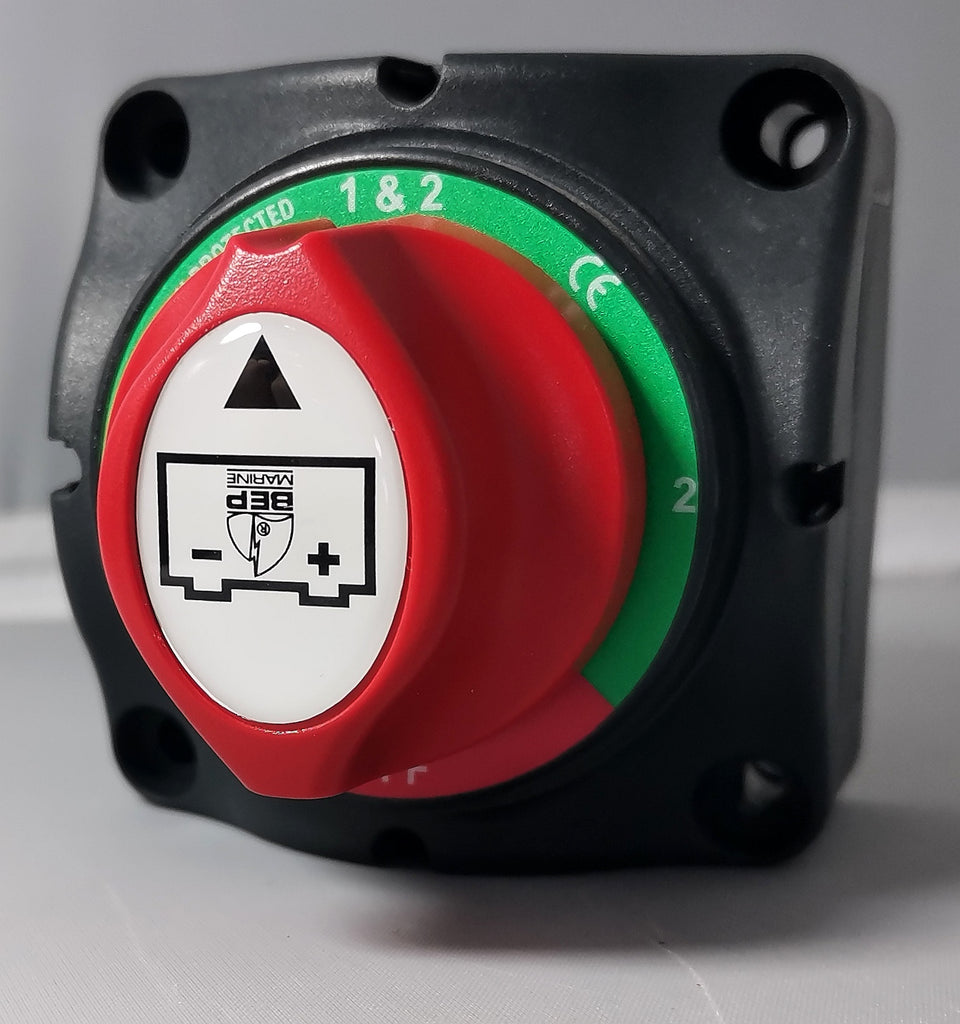

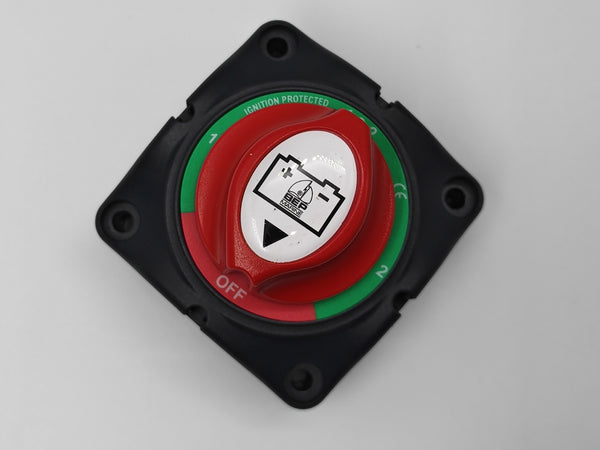

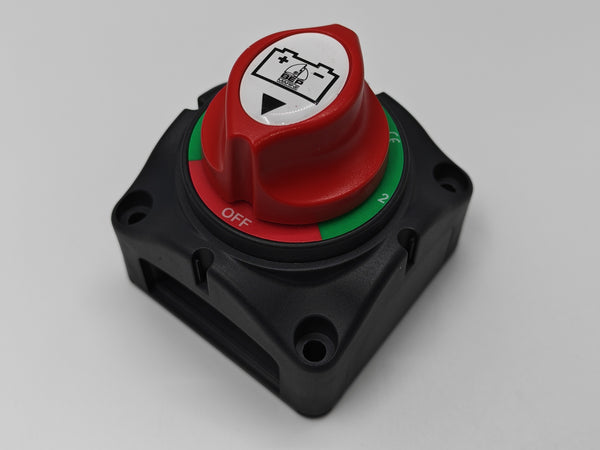

Battery Selector Switch


The 701-S is the most compact selector switch available on the market. Housed in the same dimensions as the 701 and includes the same removable side plates and back cover.
This product offers a simple economical way of separating two batteries.


• Continuous rating: 200 Amp DC

• Intermittent rating: 300 Amp DC

• Cranking rating: 1000 Amp DC

• Voltage rating: 48V DC

• Operation: Selector 1-2-both-off
• Mounting: recessed or surface
• Termination stud size: 3 x 8 mm (5/16”)
• Dimensions: 69 x 69 x 75h mm (2.75 x 2.75 x 3h inches)

• Tin plated copper studs and nuts
