BEP Contour 1100 Series Surface Mount Switches


The Contour Interior Switch can be either surface or recess mounted.

The Toggle version can be used in interior or exterior application.

Popular as a compact switch for lights, interior fans and shower drains.

The interior series is supplied standard with a three terminal on/on switch which can be used for on/off circuits or two-way light installations.

For applications such as shower drain pumps or electric toilets, momentary switches can be interchanged into the switch plate.

Switches can be turned 90 deg for horizontal mounting, and are current rated at 10A DC. The Toggle version is 20 amp DC.

All switches include a label sheet.

BEP part numbers

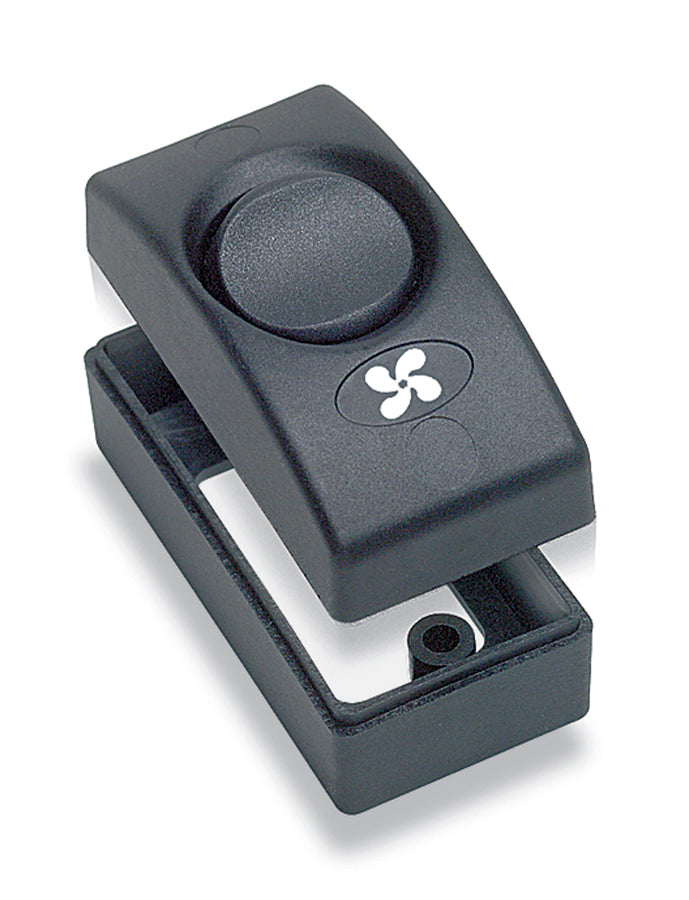

1100-bk   (m14180E) single 10 amp interior black

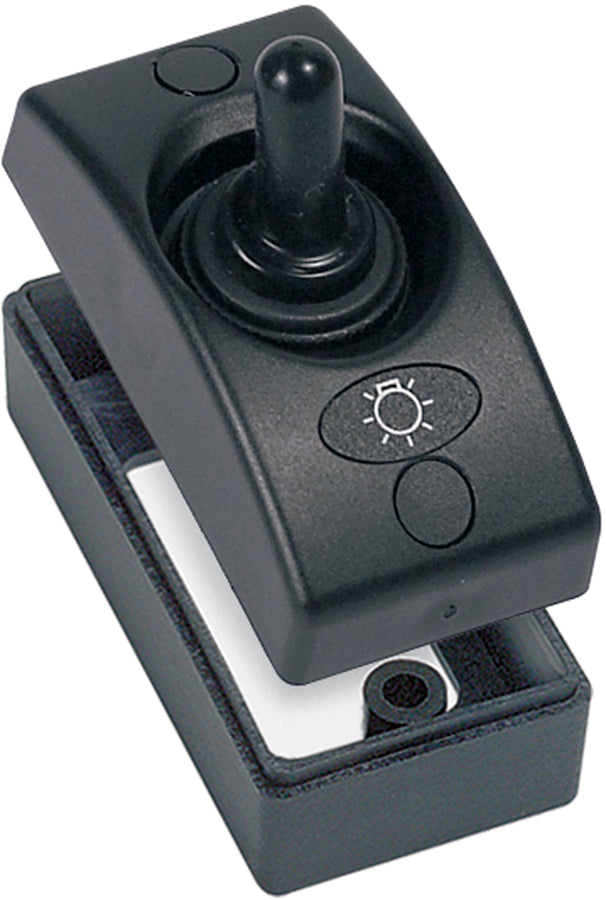

1100-bk-ts   (m14180I) single toggle 20amp interior/exterior black

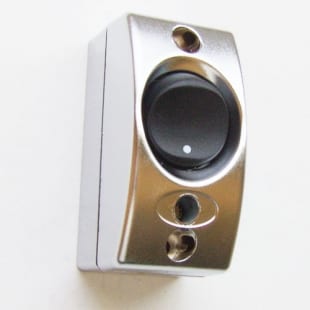

1100-ch  (M14180F) single  10 amp interior chrome

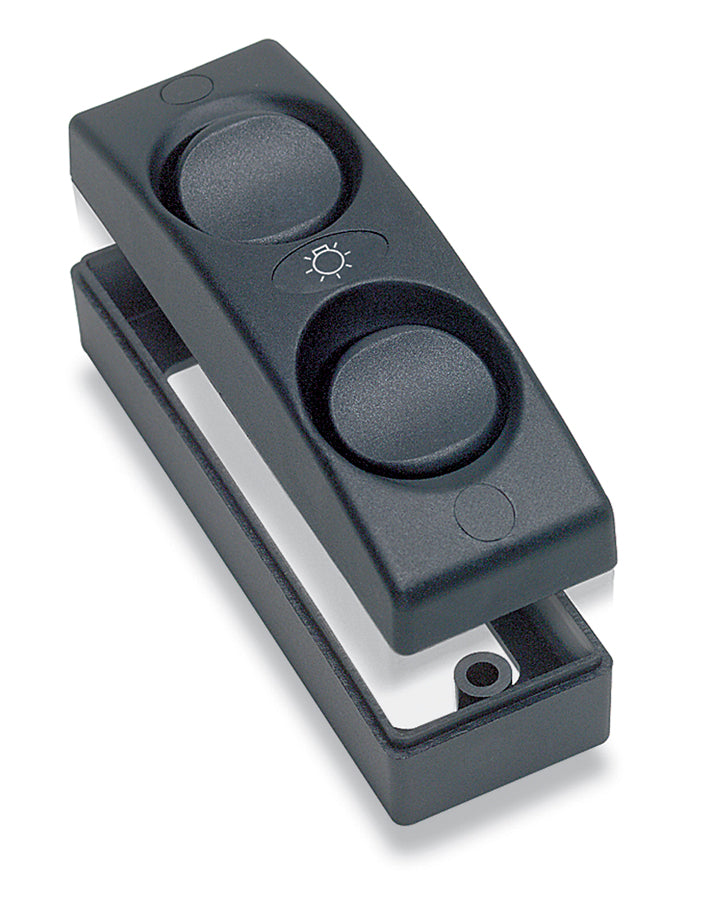

1101-bk (M14180G) double 10 amp interior black

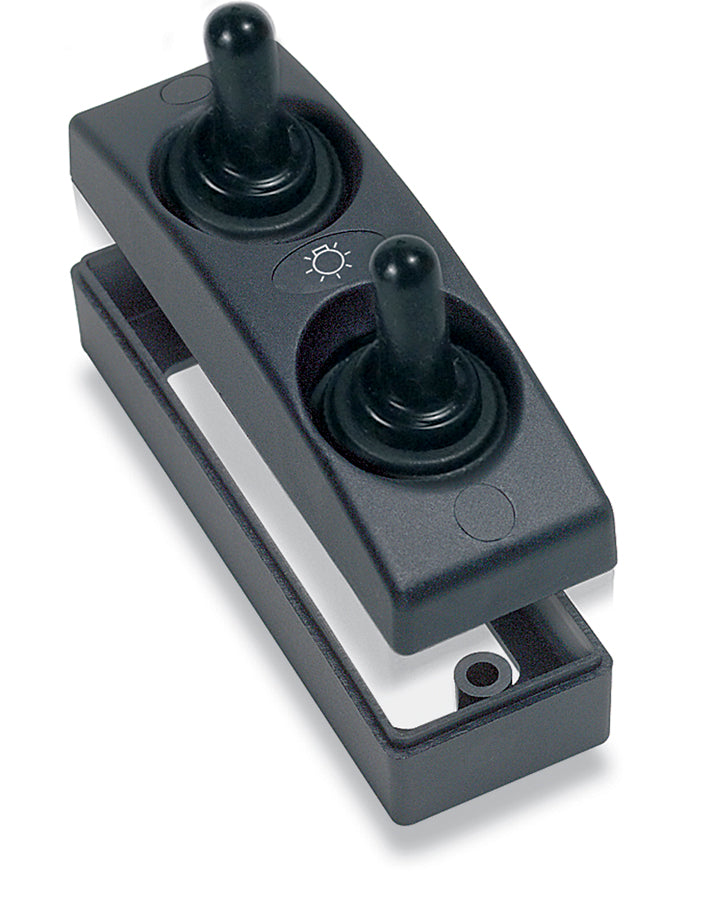

1101-bk-ts (M14180J) double toggle 20 amp interior/exterior black

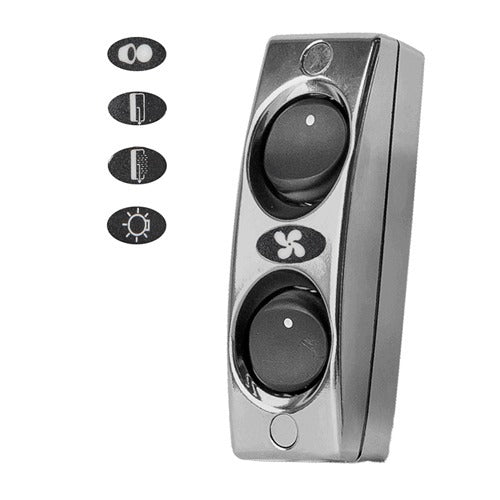

1101-ch  (M14180H)  double 10 amp interior chrome
