BEP Marine Battery Charging Cluster for Single Engines

$282.57
21308

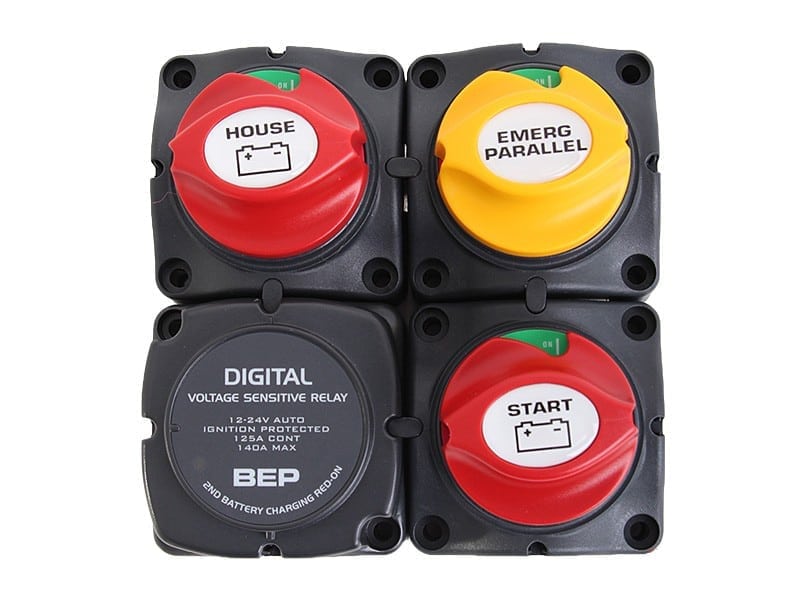

BEP Marine Battery Charging Cluster for Single Engines

Dual charging made easy

The BEP Marine Dual Battery Charging Cluster is the optimum battery management system for your single engine boat.

This dual battery charging cluster offers a number of unique features.

The highlights being the contour lock system that allows it to be locked together with other switches. With a control knob, it can’t easily be removed while in the On or Off position. You can remove it, however, by switching to an anti-clockwise 45-degree position.Also, the BEP Marine Dual Battery Charging Cluster has a removable rear cover that insulates the rear terminals against any short circuits and ensures that the switch meets ABYC requirements.The BEP Marine Dual Battery Charging comes with dedicated battery switches for each bank and a 710-125A voltage sensitive relay (VSR). The VSR allows for two batteries to be charged at the same time. When the engine is started, and the start battery reaches 13.7 volts, the relay closes, combining the battery banks (start and house) and allowing them to be charged simultaneously. When the engine is stopped and the voltage drops to 12.8 volts, the relay will open, separating the batteries.

This system eliminates the possibility of draining the wrong battery and protects sensitive electrical equipment powered from the house battery from harmful engine start up spikes.

The BEP Marine Dual Battery Charging Cluster cluster is designed for single outboard or inboard systems on power or sailboats with an alternator size up to 100A.

BEP Marine Dual Battery Charging Cluster for Single Engines Specifications:


    • Dual Battery charging clusters

    • For use on charging systems under 125A

    • Continuous rating: 275 Amps DC

    • Intermittent rating: 455 Amps DC

    • Cranking rating: 1250 Amps DC

    • Voltage rating: 48 Volts DC

    • Operation: On / Off

    • Mounting: recessed or surface

    • Termination stud size: 2 x 3/8” (10mm)

    • Dimensions: 276L X 69W x 75H mm (vertical & horizontal) ; 138L X 138W x 75H mm (square)
