Claw Bruce Style Anchor 316 S/S - 40kg & 20kg

40kg Claw/Bruce style anchor,  This spade style was designed many years ago for use on the North Sea oil rigs and is an ideal soft mud and shingle where adequate tonnage is available to apply to it for digging in.  It has become a base anchor for craft 15m and above, particularly in Southern areas - some smaller sizes are available on request.

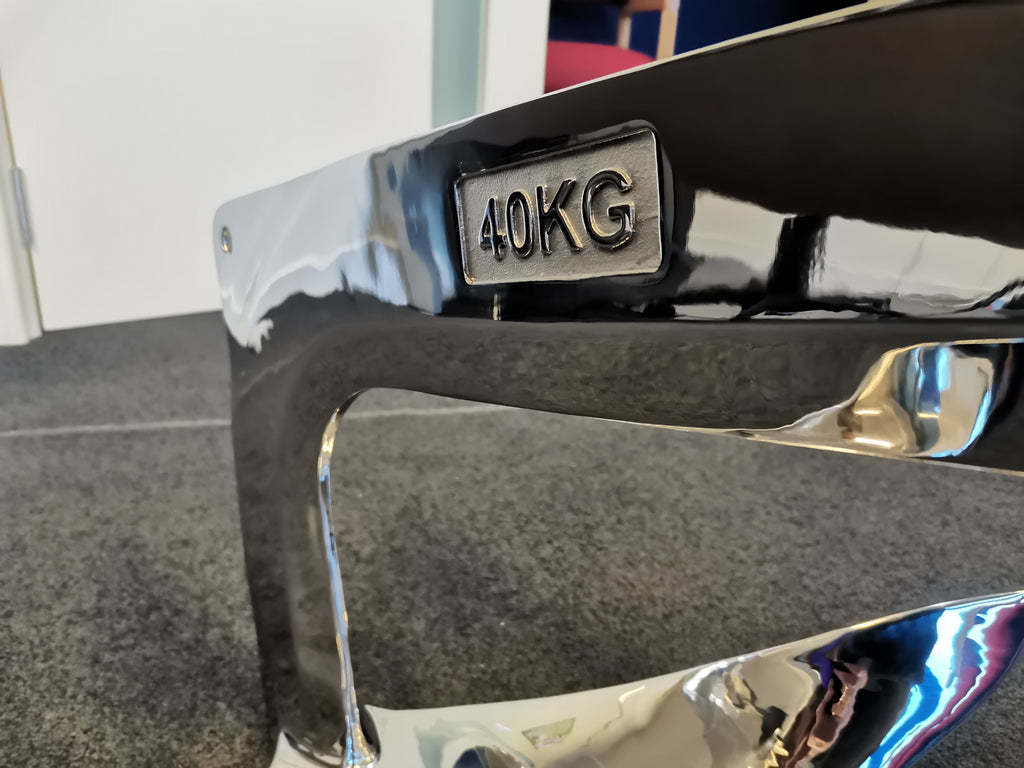

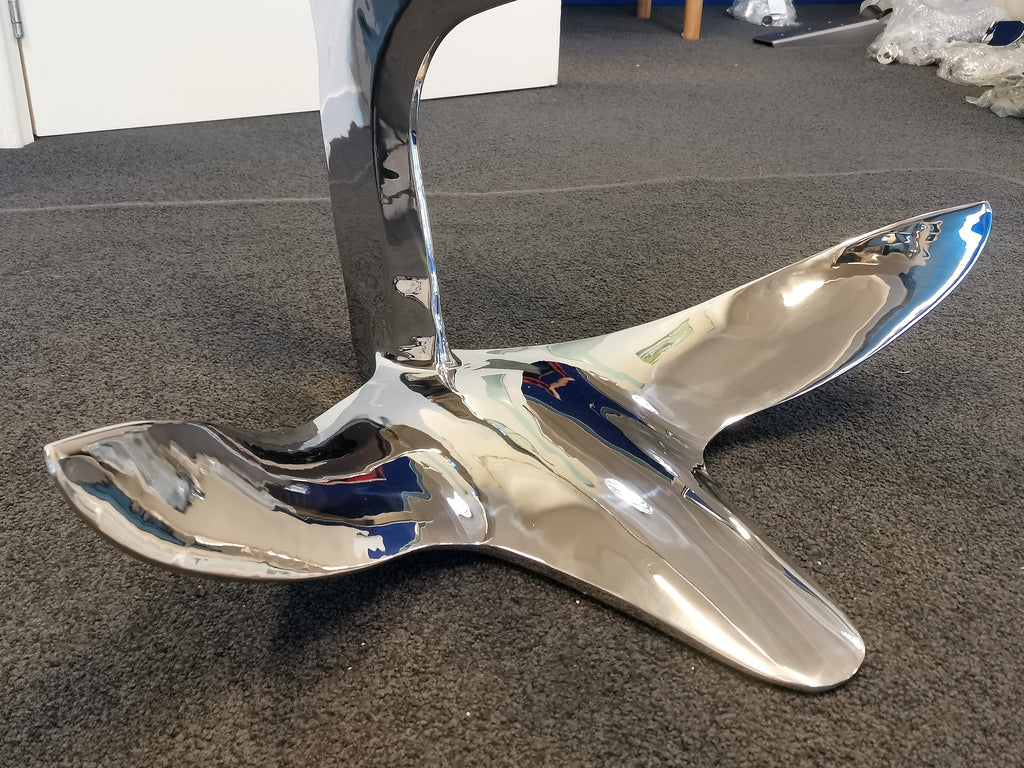

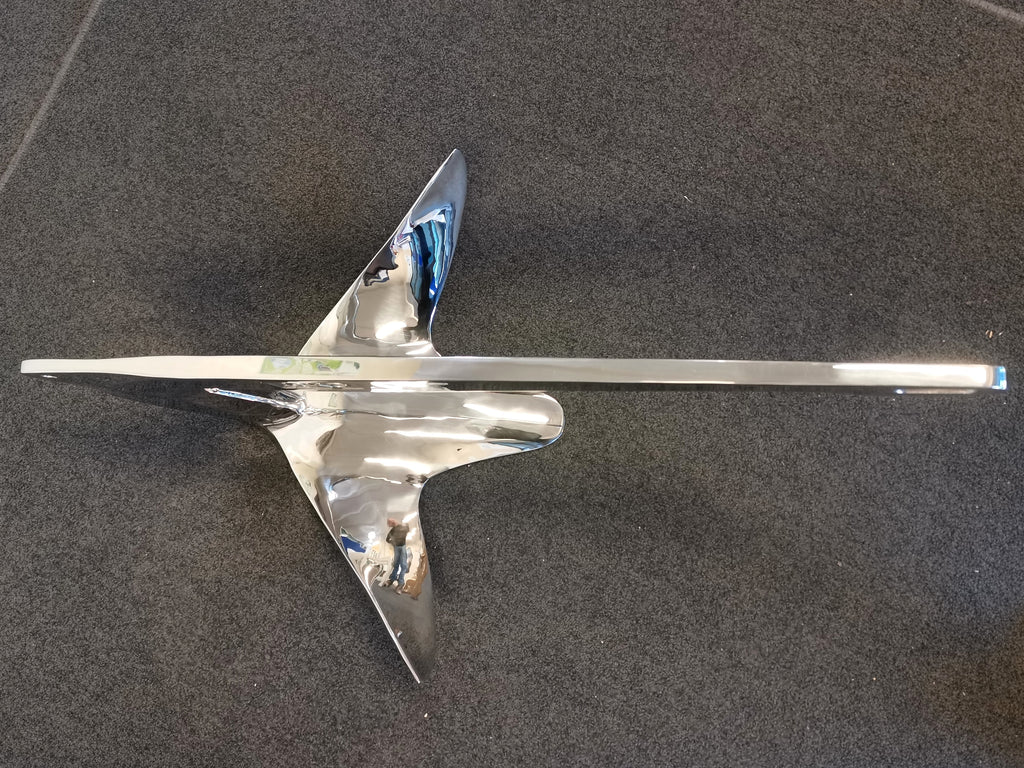

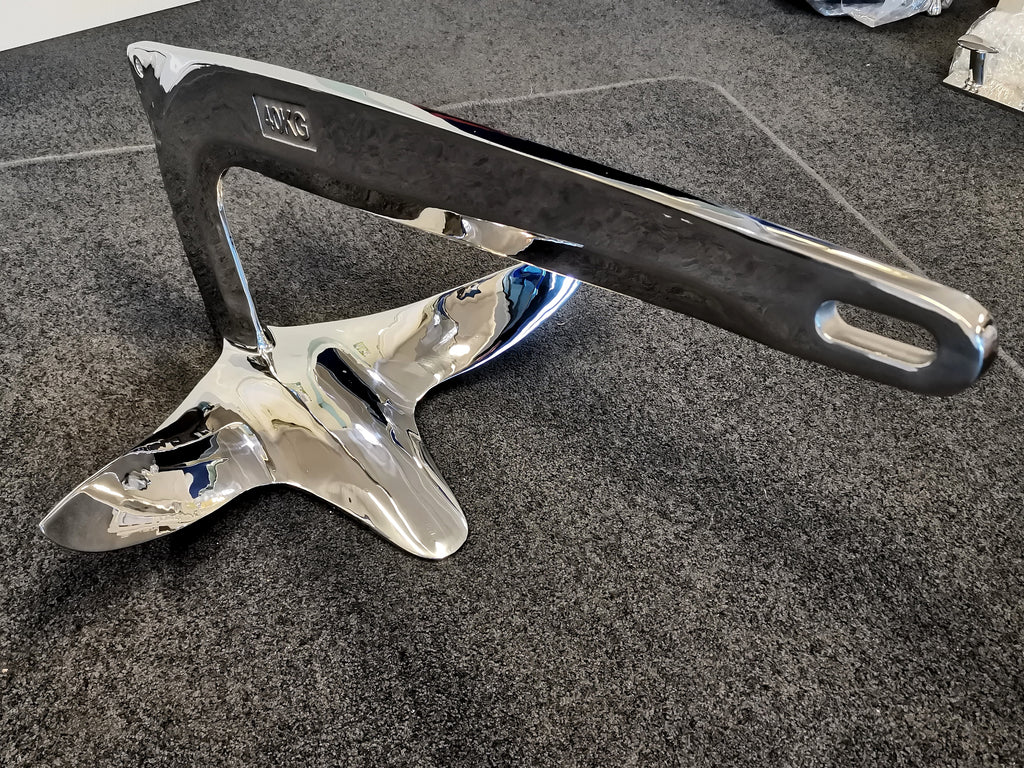

40kg #316 Stainless Steel polished, 900mm overall length x 630mm at its widest point.  The shaft (stock) is shaped to allow for over roller storage.  The distance from the end of the stock to where the bow roller would sit is approx 750mm This size would normally fit a craft 13-17m depending on windage, displacement and monohull/multihull.

20kg Claw/Bruce style anchor,  This spade style was designed many years ago for use on the North Sea oil rigs and is an ideal soft mud and shingle where adequate tonnage is available to apply to it for digging in.  It has become a base anchor for craft 10-12m and above - particularly in Southern areas - some smaller sizes are available on request.

20kg #316 Stainless Steel polished, 700mm overall length x 480mm at its widest point.  The shaft (stock) is shaped to allow for over roller storage.  The distance from the end of the stock to where the bow roller would sit is approx 600mm This size would normally fit a craft 10-12m depending on windage, displacement and monohull/multihull.
