Crimp Ring Terminal 3 sizes
$0.63
(21002P)
Popular conventional ring terminal designed for crimping with pliers and can be soldered as well if required.

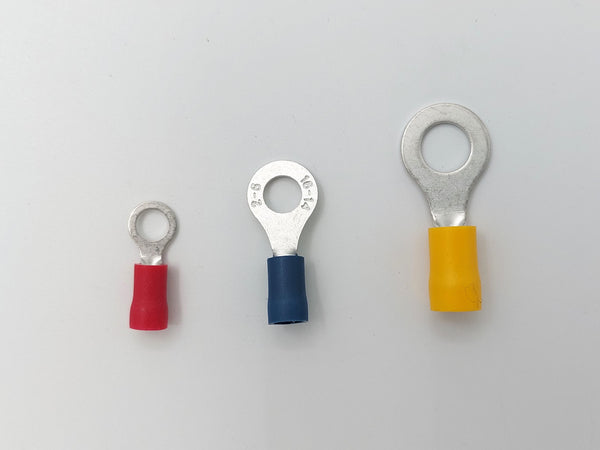

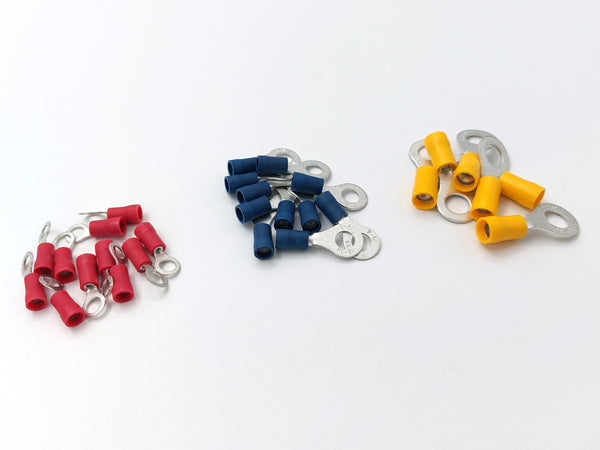

The colour conveniently signifies the size electrical wire it accepts.

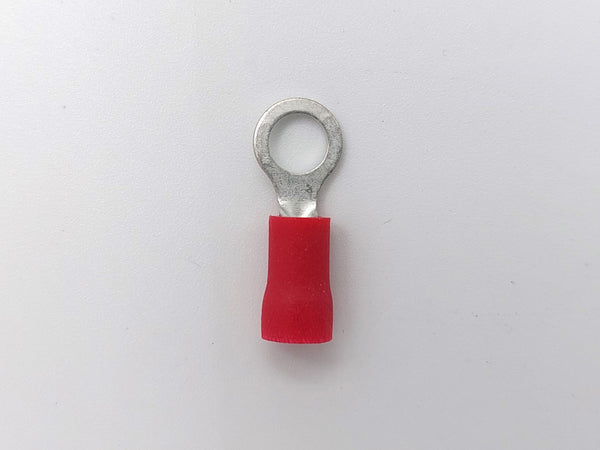

Red will take 2.5 - 3mm squared electrical wire and has a 5mm hole in the ring for a bolt or stud.

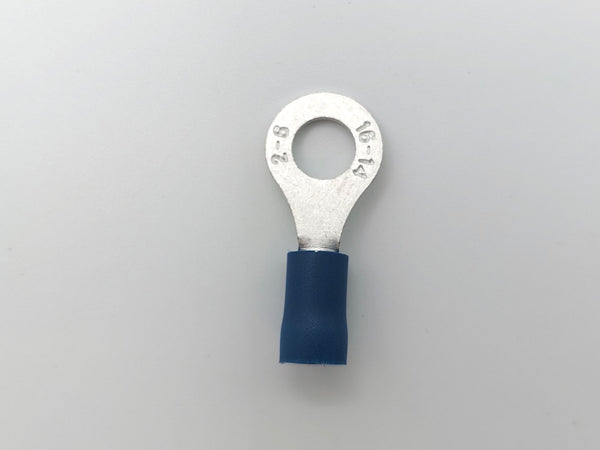

Blue will take 3 - 4mm squared electrical wire and has a 6.3mm hole in the ring for a bolt or stud.

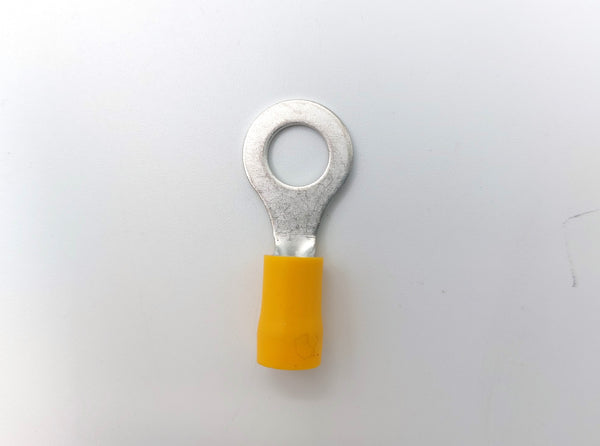

Yellow will take 5 - 6mm squared electrical wire and has a 8.4mm hole in the ring for a bolt or stud.
