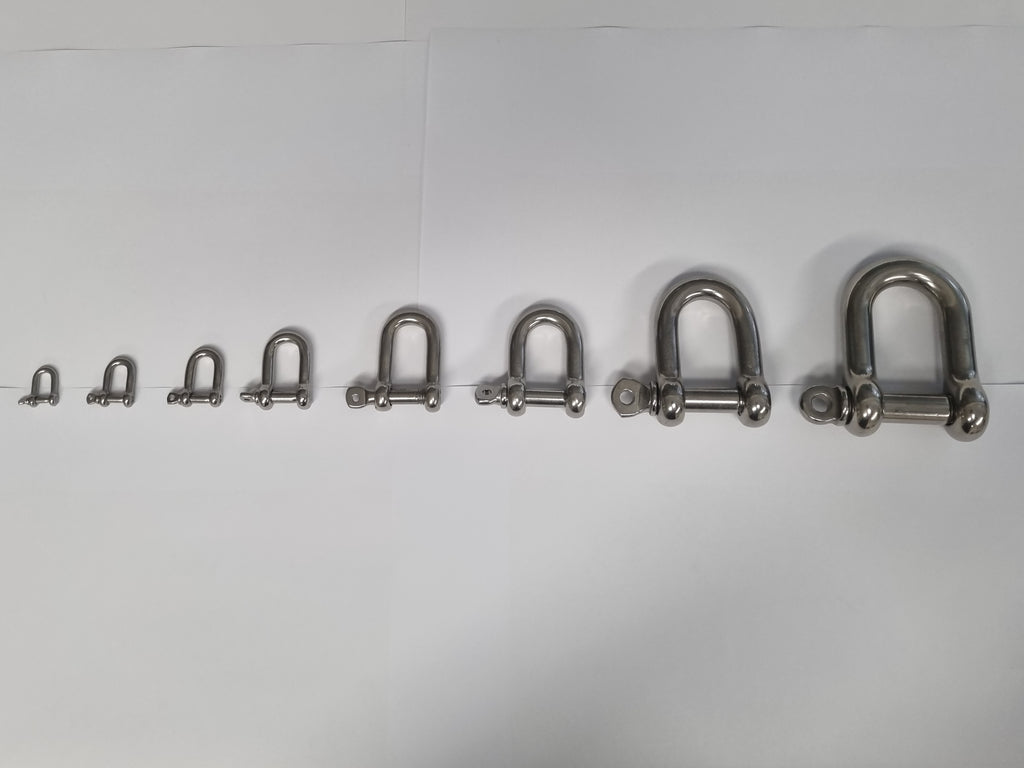

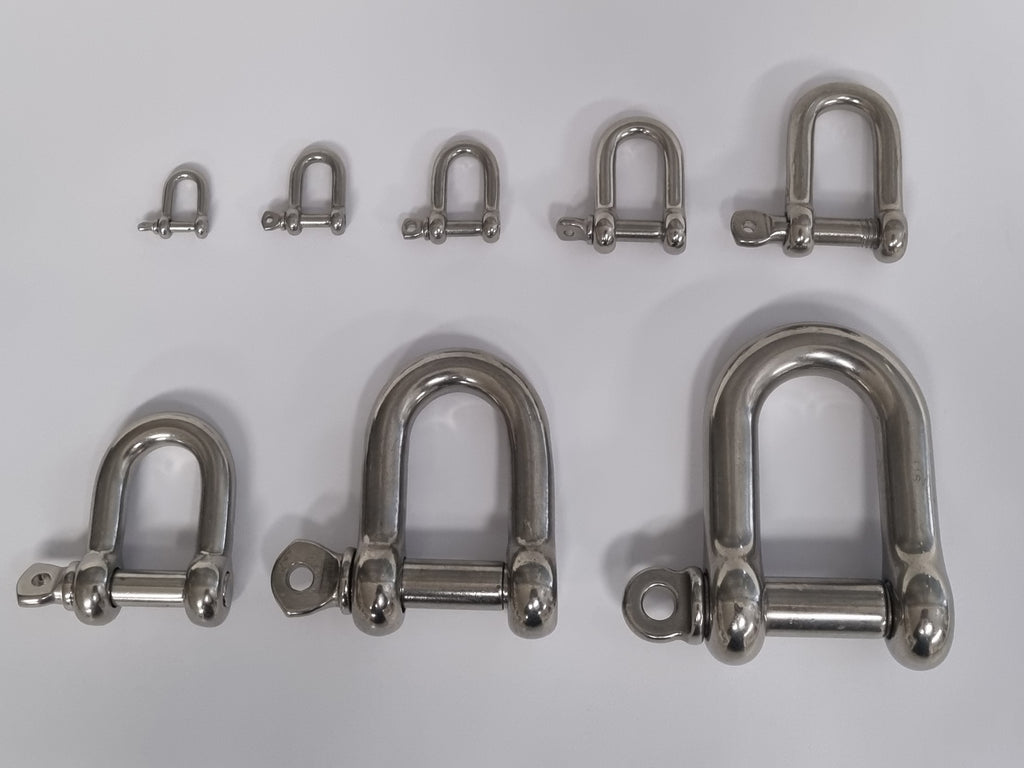

Dee Shackle Stainless Steel 4mm to 19mm
$6.96
(06115)

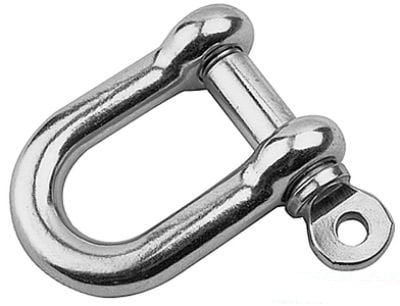

Rounded dee shackle 316 grade stainless steel with screw pin & rounded section.
Most shackles are sized by the diameter of the pin itself.
The Pin head has a convenient hole for lashing or seizing the pin so it can be made to not undo if necessary.
Pin diameter: Approx Breaking Strain: (not certified and not for human lift)
4mm 400kg
5mm 900kg
6mm 1600kg
8mm 2400kg
10mm 4000kg
12mm 5300kg
16mm 8700kg
19mm
Please note - breaking strains are approximate only.

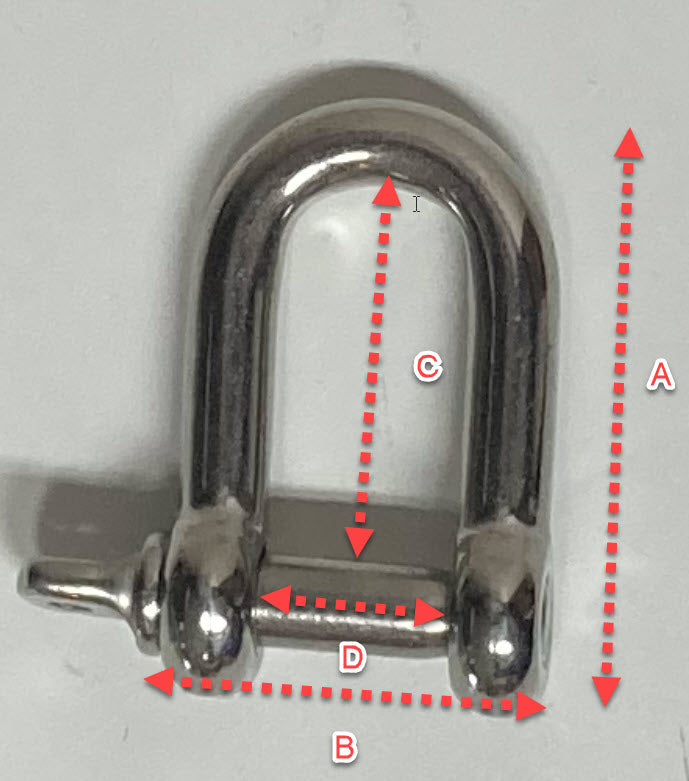

Dimensions (as per 4th photo):
4mm: A: 22mm B: 16mm C: 14mm D: 8mm
5mm: A: 27.5mm B: 20mm C: 17.5mm D: 10mm
6mm: A: 33mm B: 24mm C: 21mm D: 12mm
8mm: A: 44mm B: 32mm C: 28mm D: 16mm
10mm: A: 55mm B: 40mm C: 35mm D: 20mm
12mm: A: 69.5mm B: 48mm C: 44.5mm D: 24mm
16mm: A: 88mm B: 64mm C: 56mm D: 32mm
