Dickinson Newport Diesel Heater and Parts
$2,212.99
(15204)
Diesel Heater (15204)

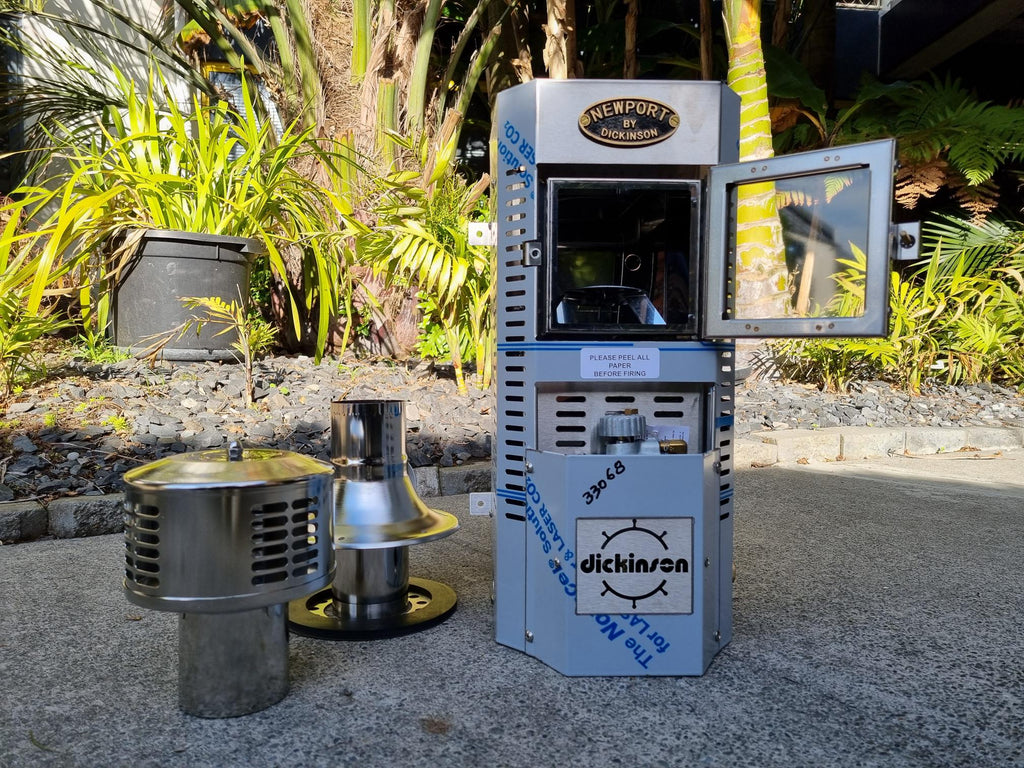

The Newport Bulkhead Mounted Heater is ideal for boats 30-35ft. Small, compact, and bulkhead mounted. An attractive, economical diesel burning heater, providing comfortable, dry heat.
- Requires 3” diameter chimney parts (15205 & 15206) pictured.
- Minimum 4ft or maximum 8ft of chimney is required, a 6ft straight run with no elbows work best.
- Chimneys 6ft or longer we highly recommend a barometric damper.
- Permanent fresh air vent needed in area of the unit.
- Decorative laser cut valve cover.
- Creates a dry heat to dry out moisture inside the vessel.
- In sailboat installations, this unit must face fore or aft, if facing port or starboard is desired, the valve would need to be mounted to the side of the unit so the gravity fed valve won’t starve the burner on heels up to 15 degrees.
- 12v draft assist fan included (can be converted to 24v and 32v). Used for start up and draft assistance on high fire.
- Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil.
- 1 turn hot water coil for 5-10 gal can be installed for water heating.
Width: 225mm (8.50″)
Height: 495mm (19.75″)
Depth: 263mm (10.50″)
Weight: 10KG (22 lbs)
Fuel Consumption / 24hr:
4.9L (1.29 gal) Low
12.5L (3.20 gal) High
Heat Output:
Low: 6500 BTU
High: 16250 BTU
Barometric Damper (15204A)
A chimney pipe with a crimp on one side for connecting, made of 304 stainless steel. The barometric damper is used as the first or second piece of pipe from the top of your heater or stove. The barometric damper helps decrease the draft on longer chimneys allowing the user to operate the unit on lower fuel settings.
Recommended on all installs or especially chimneys that are 6ft or taller.
3" x 7"
Thru Deck Flue Fitting 3" (15205)
Stainless Steel Thru deck fitting suitable for 3" Flue.
Flue Cap (15206)
Stainless Steel Draft Prevention Cap suitable for 3" Flue
Flue Guard (15206B)
Stainless Steel Guard for Flue 3" x 22"
