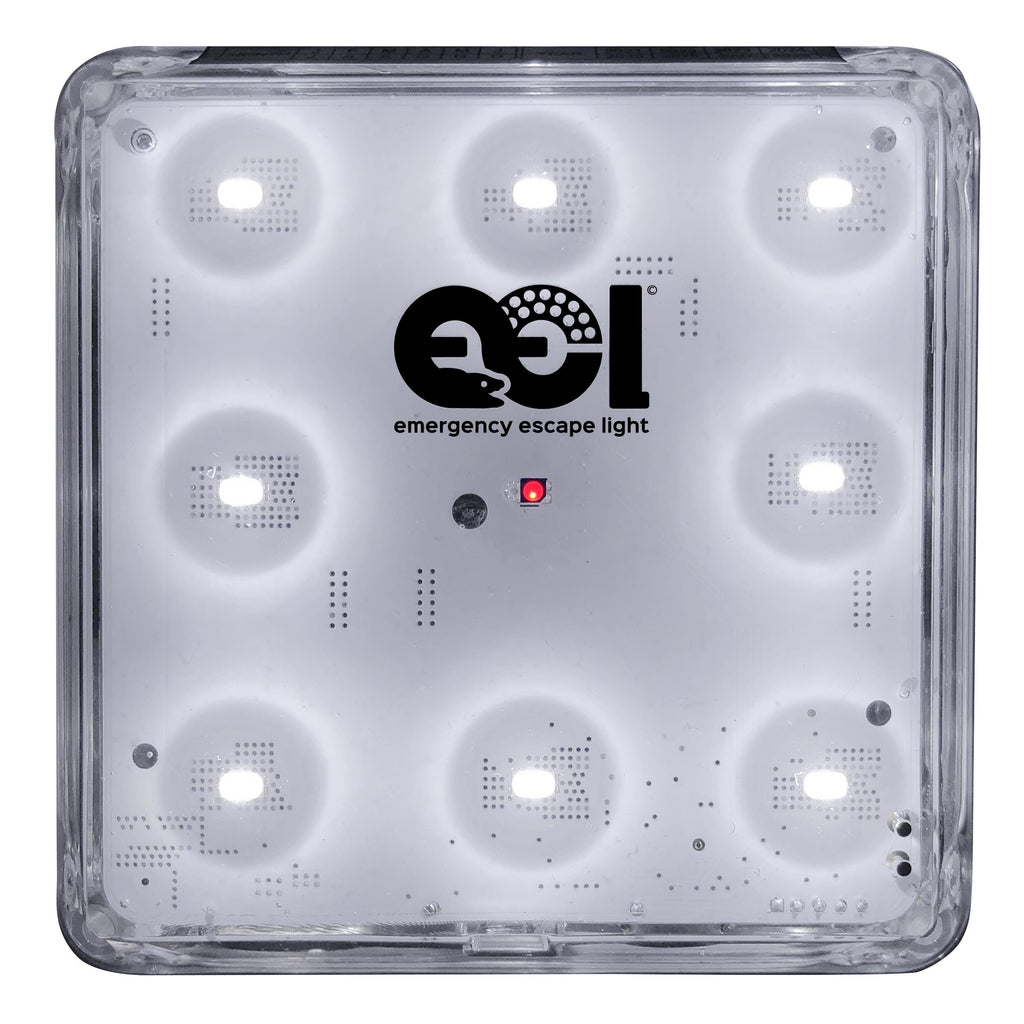

Emergency Escape Light
$576.29
(04512A)
There are few things more dangerous to crew than a sinking ship, with EEL (Emergency Escape Light) you can reduce your risk of tragedy.
FEATURES
The EEL Emergency Escape Light was created to help prevent loss of life at sea. When a vessel capsizes it can leave the crew or passengers in complete darkness, upside down and disoriented.

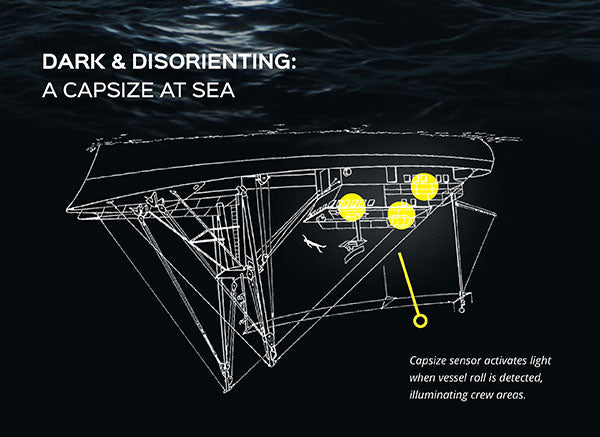

EEL’s control PCB registers when the vessel rolls over a certain degree, activating immediately with a powerful 300+ lumen output. The EEL is built with high quality components to withstand impact from fallen objects.
The unit has a minimum 6 hour battery life. EEL is IP67 rated, also activating on detection of water during flooding.
The EEL is designed to be installed fixed, or with an option of a bracket to remove if required, and has no external wiring for easy installation.
The product has a built in test mode and a 2 year standby battery life – which will be easily changed by registered service centres.
SPECIFICATIONS
Boat Size: | Suitable for any vessel with crew compartments. |
Fixture Lumens: | 300+ |
Battery: | Battery change recommended every 2 years, with exchange at a registered service centre. Minimum +6 hour battery life when in use. Inbuilt battery redundancy. |
Activation: | Vessel capsize roll detection via PCB sensor, water activation in event of flooding. |
Physical Dimensions: | 12.7cm x 12.7cm x 1.9cm |
Total Weight: | Approximately 230 grams |
Runtime: | 6+ Hours (minimum) |
Mounting Options: | Fixed. M4 Bolts or 6G screws. Hole pattern is 105mm square |
Installation: | To comply with NSCV Part C, section 5.14.2.2, install not more than 300mm above the deck at any point. Unit may be affixed at escape routes, route to assembly stations or evacuation routes to an embarktion point. |
Waterproofing: | IP67 |
Construction material: | Strong impact proof polymer capable of withstanding impacts from fallen objects. |
