Universal Tanks and Tank lids with Outlets & Inlets
$377.47
(05115B)

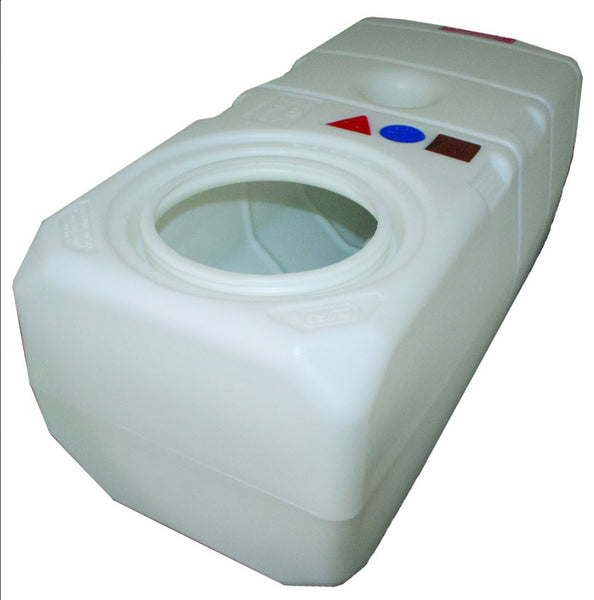

This tank is made of high density polyethylene, so it can be used for diesel, drinking water or waste. It is non-toxic, and fuel resistant. CE Approved.
Dimensions:
(05115B) 37L: 500mm long x 630mm wide x 230mm high
(05116) 48L: 650mm long x 360mm wide x 230mm high
(05117) 60L: 800mm long x 360mm wide x 230mm high
(05117B) 78L: 800mm long x 360mm wide x 305mm high
(05117A) 108L: 1100mm long x 360mm wide x 305mm high
The lid screws into the tanks:-
(05115) Blue lid/outlet fittings, roughly 100mm high to suit fresh water (Supplied complete with sealing gasket, 90 deg x 38mm barbed water inlet, 90 deg x 13mm barbed water outlet, 90 deg x 20mm barbed breather vent outlet. Also includes 2 x tank suction pipes 1 x 210mm length, 1 x 280mm length.)

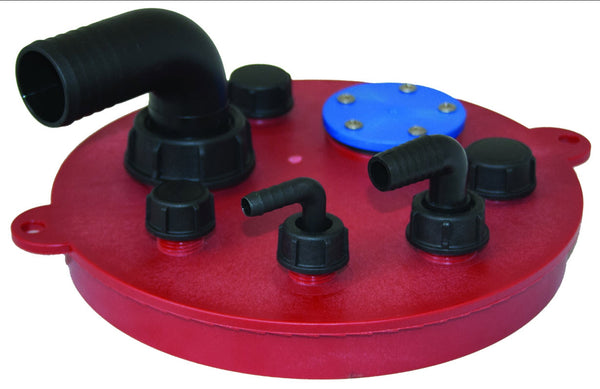

(05115A) Red lid/outlet fittings, roughly 100mm high to suit Fuel (supplied complete with sealing gasket, 90 deg barbed 38mm fuel inlet, 90 deg x 20mm barbed breather vent outlet, 90 deg x 10mm barbed fuel suction with 275mm length tank suction pipe, additional 1/2” threaded fuel suction with 275mm length tank suction pipe, plus an additional 2 x 3/4” threaded spare ports.)
(05114) Brown lid/outlet fittings, roughly 100mm high to suit Waste (Supplied complete with sealing gasket, 2 x 90 deg 25mm & 38mm barbed inlet / outlets with additional 20mm, 25mm & 38mm barbed connectors, 1 x 25mm barbed)
(05114A) White lid roughly 100mm high to suit any tank (Supplied complete with sealing gasket
