$32.21 NZD
M12183A

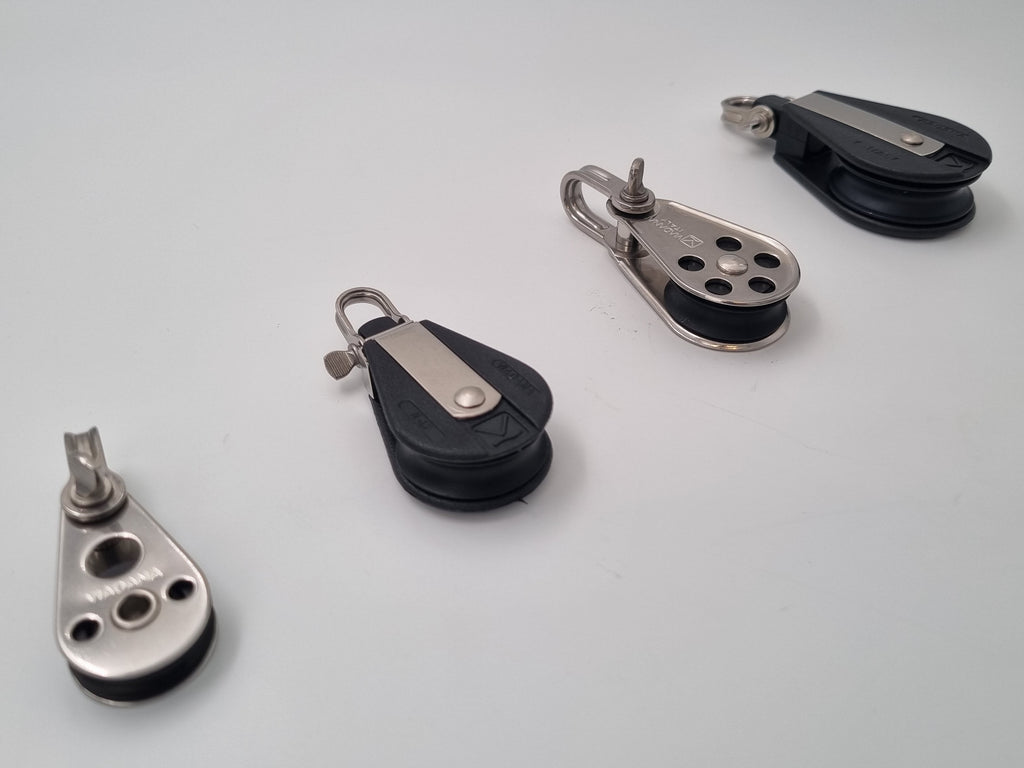

These wire pulleys have a hard anodised aluminium sheave designed to suit both rope and wire applications. All other metal components are stainless steel and the (M12183/M10153) have composite sides.

For easy removal of the wire or rope on the A and B model simply release the shackle which allows removal of the ferrule at the top of the pulley. This means you can attach the shackle to a pre existing wire or rope with out having to thread it through.

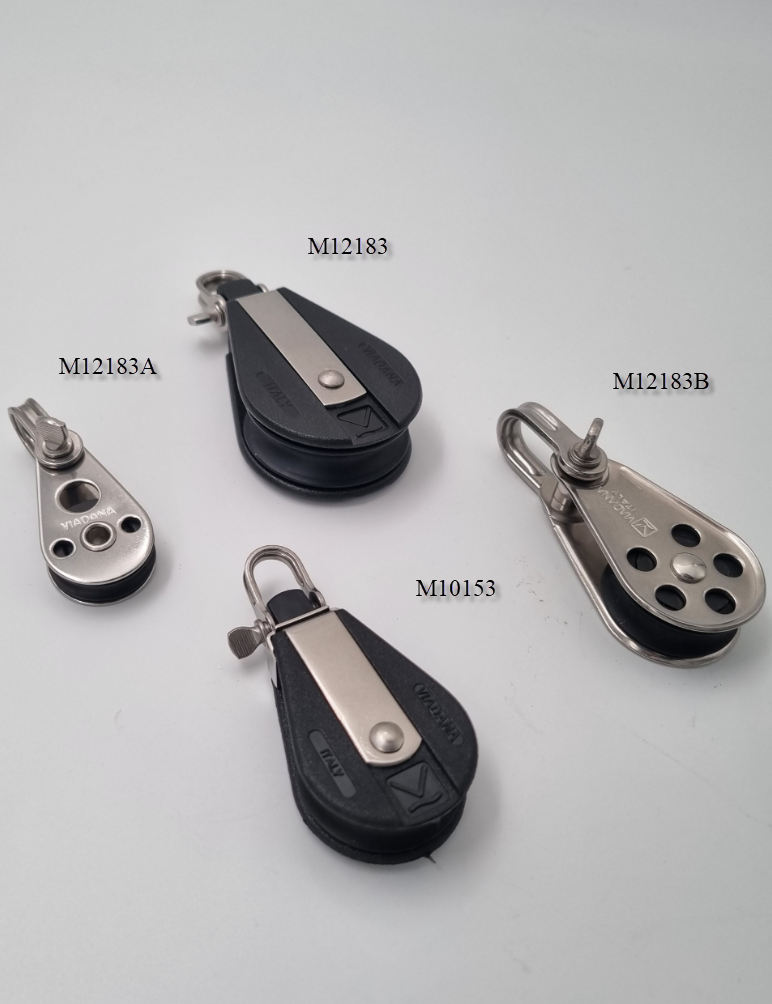

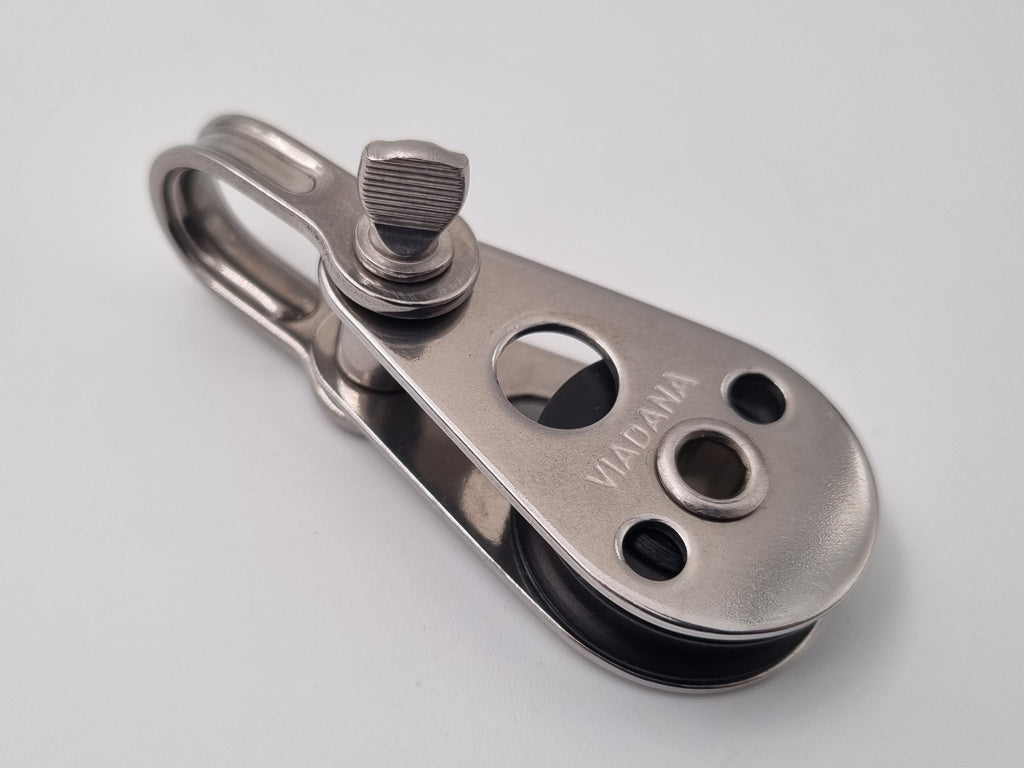

M12183A suits up to 3 mm wire or 4mm rope, breaking strain 600kg length over all (Without Shackle 45mm)

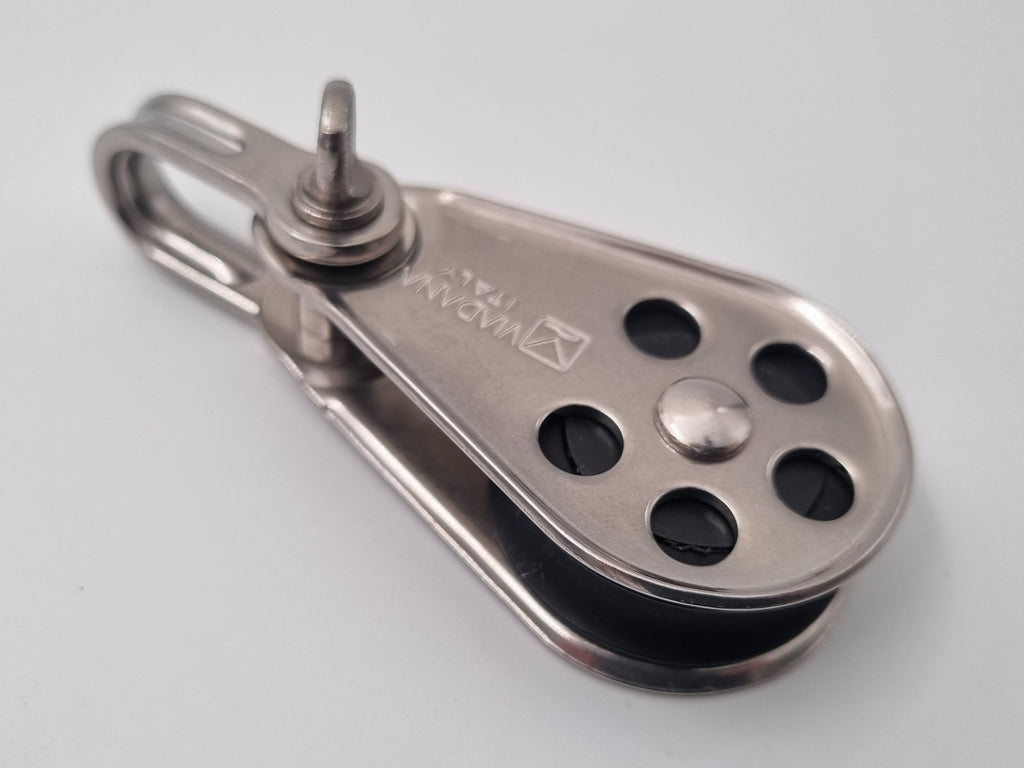

M12183B suits up to 5 mm wire or 6mm rope, breaking strain 1300kg length over all (Without Shackle 65mm)

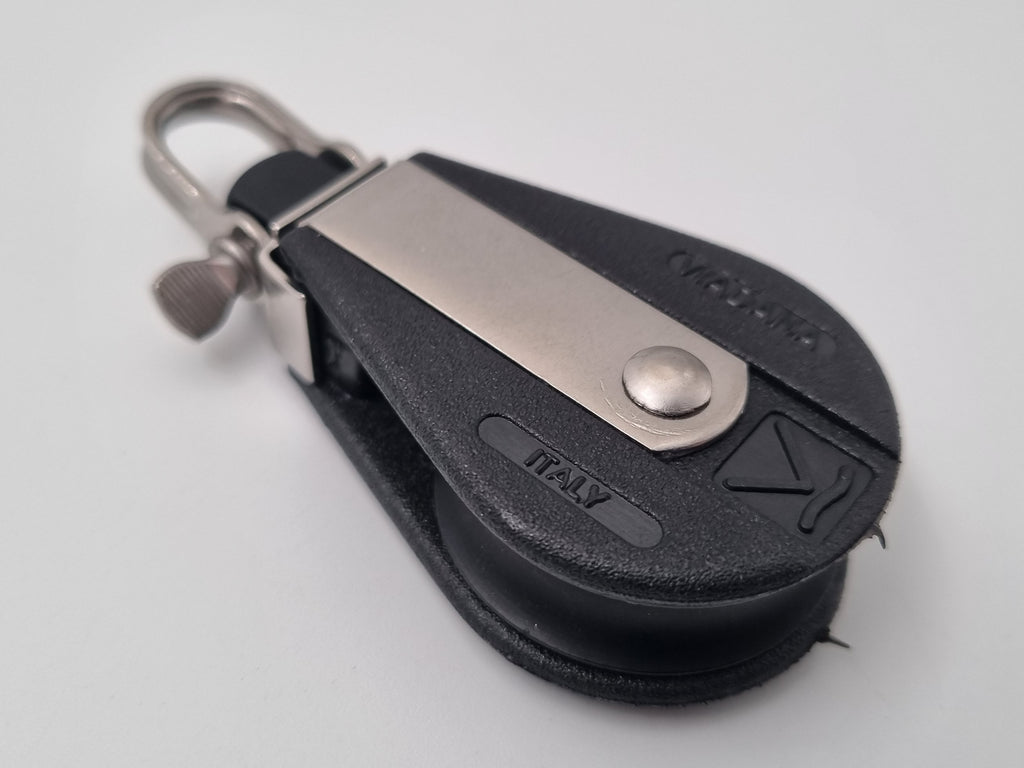

M12183 suits up to 4 mm wire or 6mm rope, breaking strain 700kg - this pulley can be fixed or swiveling length over all (Without Shackle 62mm)

M10153 suits up to 5mm wire or 6mm rope, breaking strain 950 kg-  this pulley can be fixed or swiveling length over all (Without Shackle 85mm).  This item is not pictured but is a bigger version of the M12183
