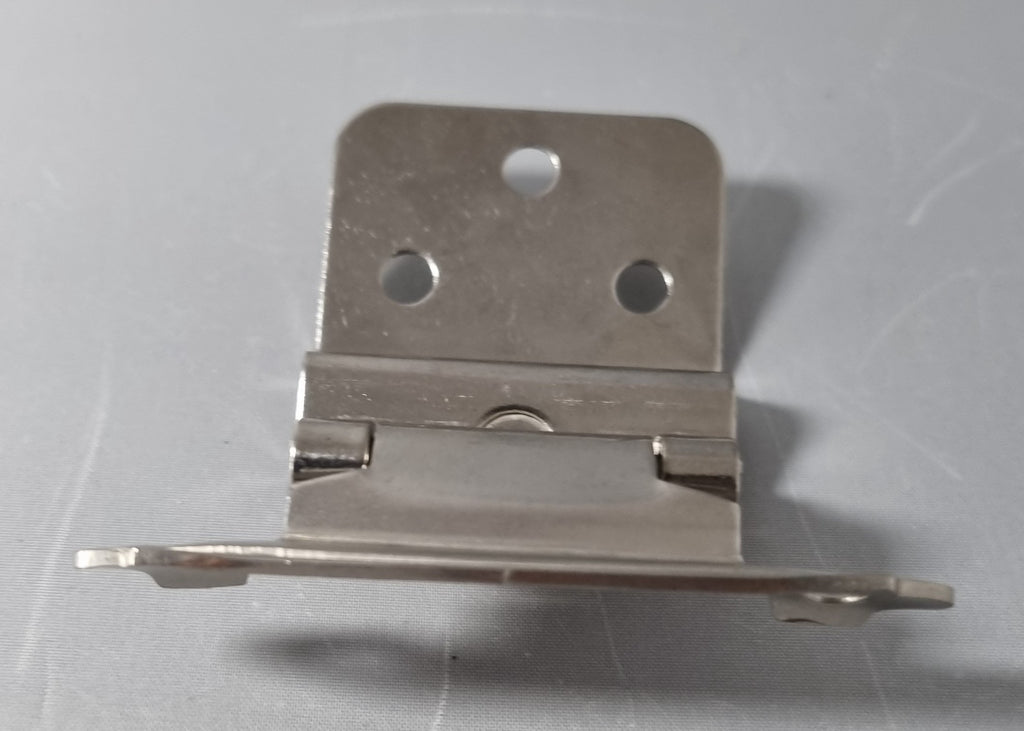

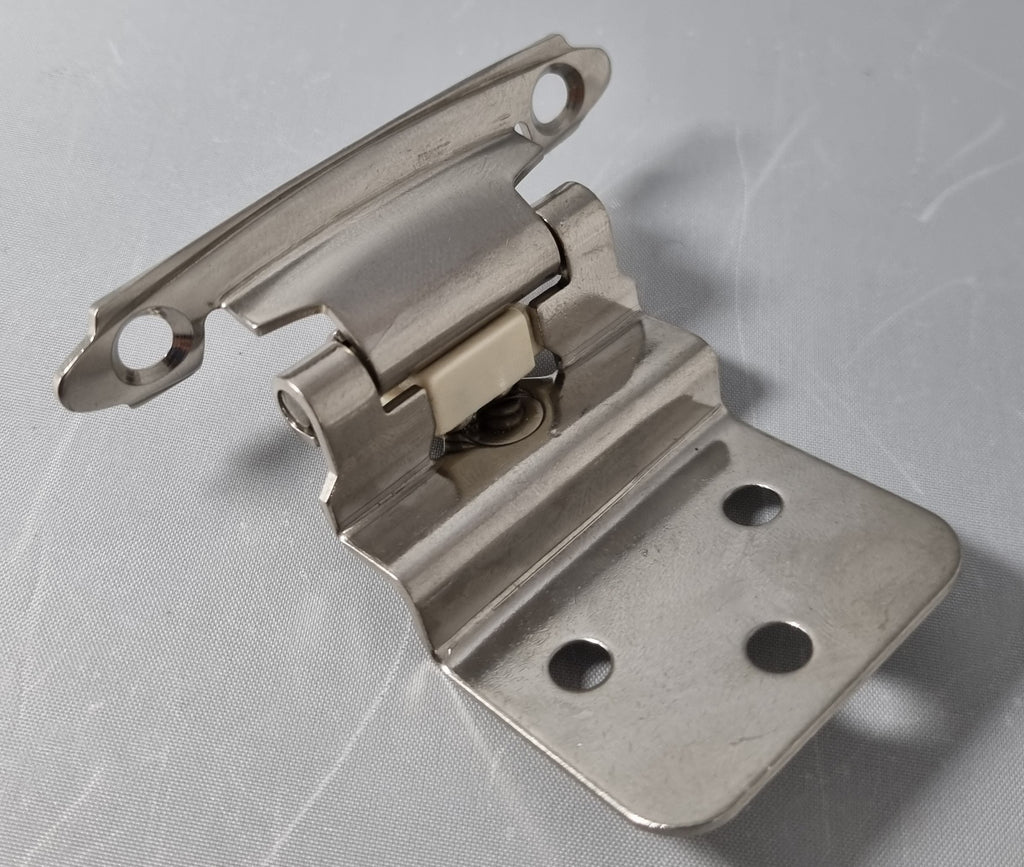

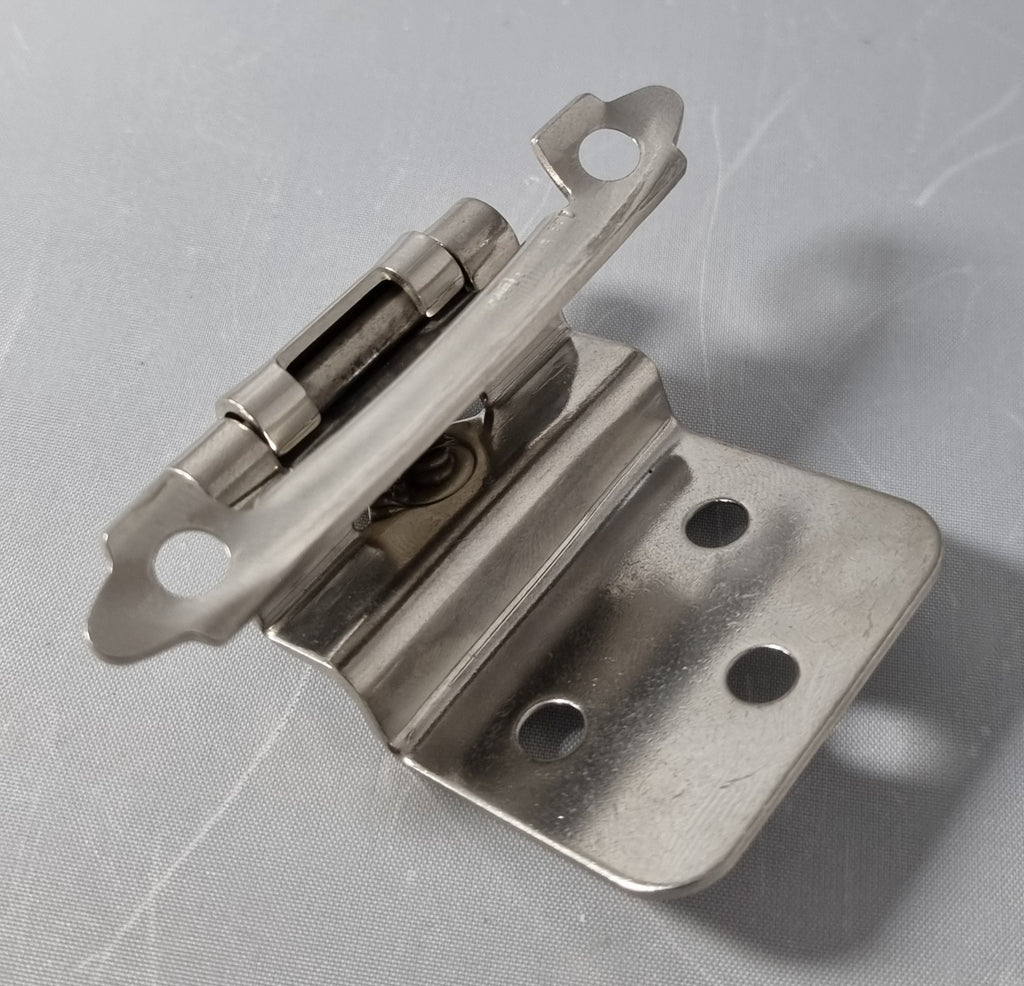

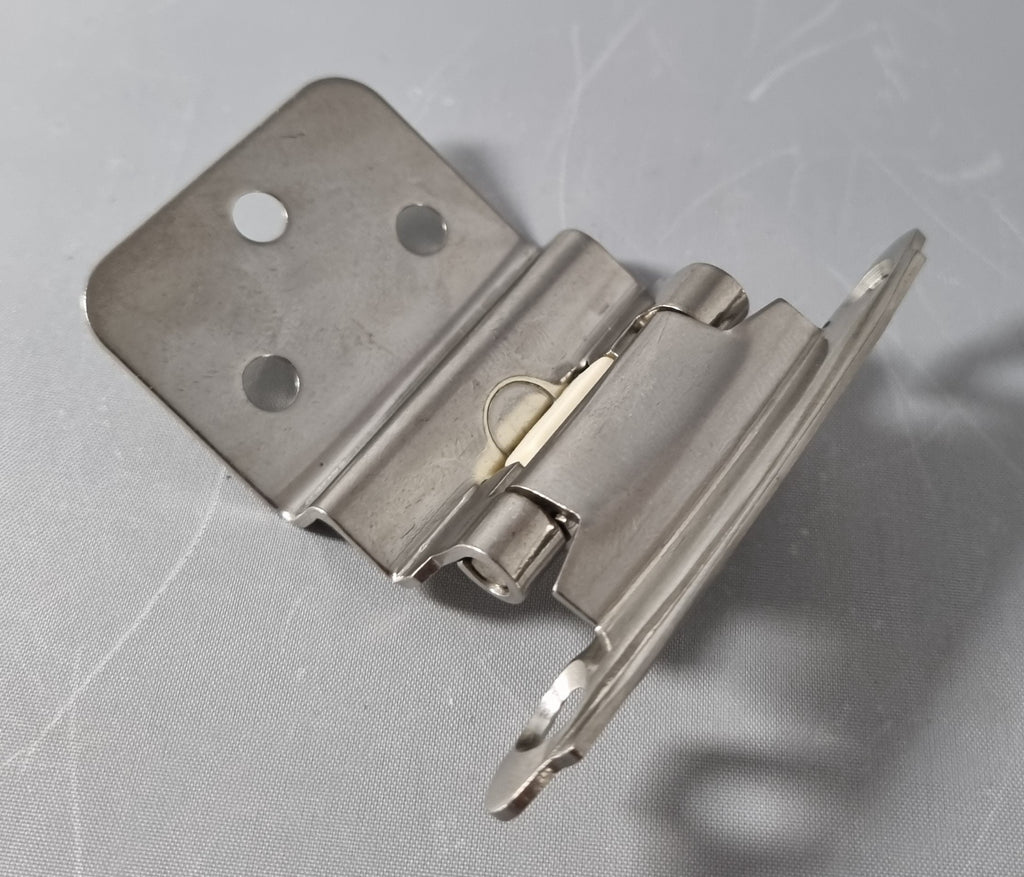

Offset Hinge stainless steel


  • Pressed Stainless Steel hinge that is partially concealed by the door front.  Used extensively on traditional vessels and in some cases steel versions were used. This ideal retro fit hinge matches many of the traditional earlier boats and in some American manufactured craft. These units being stainless steel perfectly replace many that were suppplied to the boats in steel.
  • Unique spring loaded action means a firm pull is required to open. That automatically retains the cupboard door shut, keeping plates and slightly heavier items within the cupboard.
Part No. (24205A)
Length 55mm
Width 70mm
No. Mount Holes 5
Mount Screws 5mm c/s
Offset 10mm
Type Offset Semi Concealed
Split 10mm / 45mm
Leaf Thickness 1mm
