Plug and socket removable 2 Pin Heavy Duty

Getting a decent heavy duty yet waterproofing plug and socket unit is essential for outdoor machinery and even the newer higher amperage power drain of electric fishing reels. This allows you to attach temporary (tiller autopilots, fishing gear and spotlights, davit lifting motors ) high drain items that are often not wanted to be left in the cockpit or their place of use. Having a waterproof plug and socket set designed in three sizes solves this.

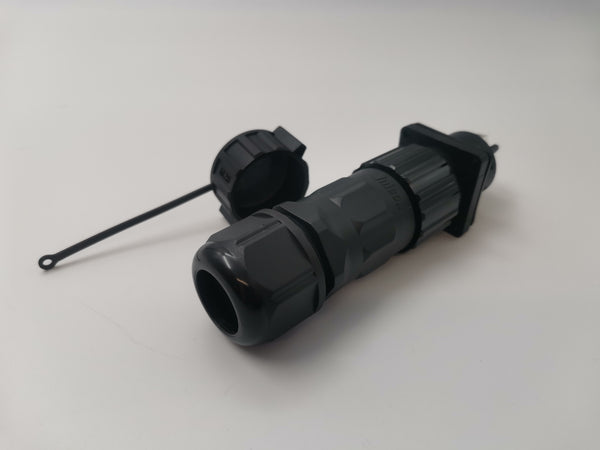

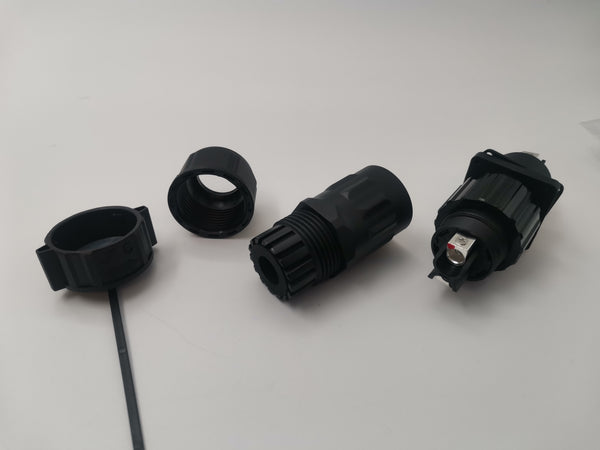

The unit accepts a firm push and pivot action to secure in the socket and then a slight turn outer nut holds the seal and keeps everything in the socket. The socket has a rubber bedding washer and fastenings in stainless are supplied with the unit for mounting the socket. The plug has an integral rubber cable gland that helps the incoming accessory wires to seal. Unlike many the wire securing terminals on these are large enough to take the larger matching wires needed.

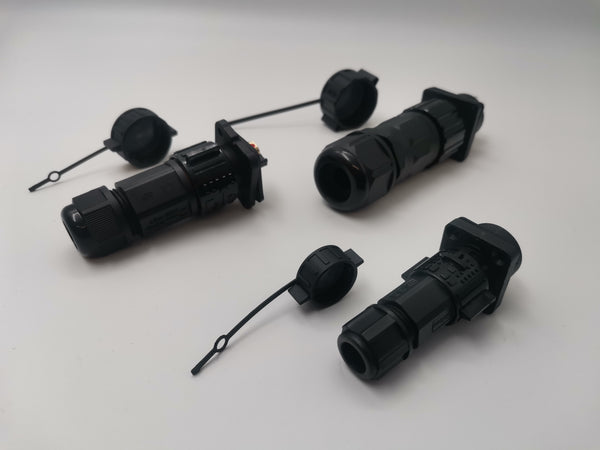

Three sizes to suit 10amp max, 60 amp max, 80 amp max.

Sml suits up to 10 amp 12v

Plug - Maximum Width of the 26mm, Overall length 60mm

Socket – Maximum Plate Size 32mm x 32mm

Capacity – 10 amp @12v – two pin

Mdm suits up to 60 amp 12v

Plug - Maximum Width of the 32mm, Overall length 75mm

Socket – Maximum Plate Size 34mm x 34mm

Capacity – 60 amp @12v

Large suits up to 80 amp on 12v

Plug - Maximum Width of the 36mm, Overall length 97mm

Socket – Maximum Plate Size 36mm x 36mm

Capacity – 80 amp @12v – two pin
