Pulley Block Stainless Single with Hook
$110.89
(10811F)

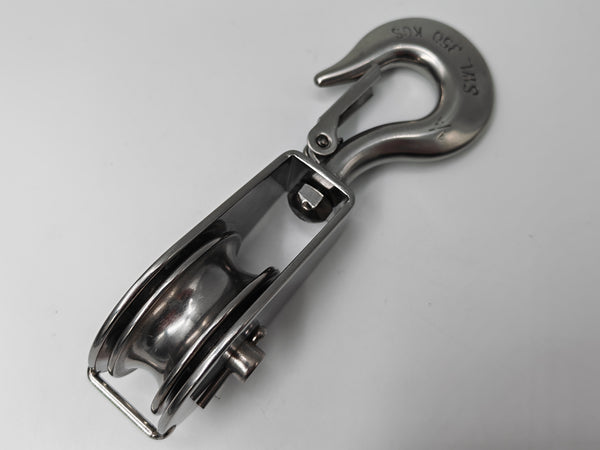

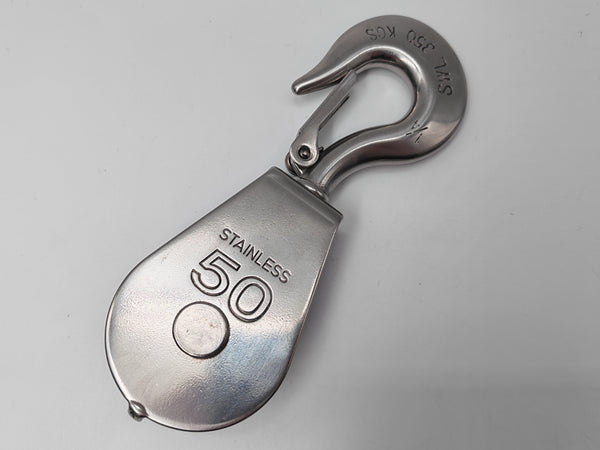

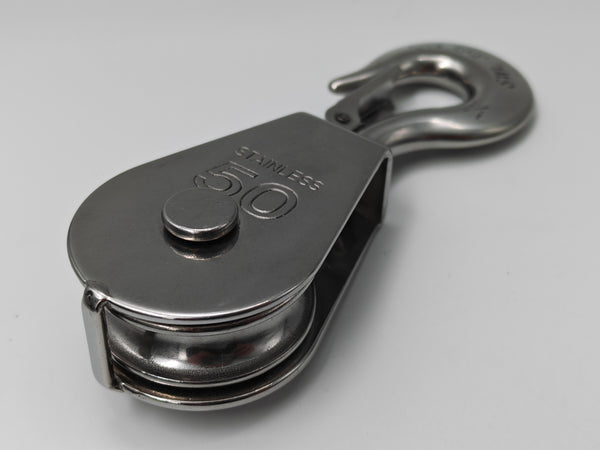

These all stainless (so will cope with wire or rope) single pulleys are ideal for immediate hook on to the vessel & then the rope threaded through.
If your rope is already attached at both ends then you can simply remove the sheave (undo split pin on the sheave shaft) slot your rope into the pulley and reinsert the pin + sheave.
Having a removable sheave is beneficial when attaching to existing installations.
As in all cases with the swiveling snap hooks, the pulley must be free to move + self align with your load or it simply pulls the hook into a position where it cannot swivel and is therefore unable to self align.
This unit measures just 160mm overall so is ideal for application where a working load is beneath 350kg.
160mm overall length (including hook) maximum width 52mm. Sheave size is 50mm dia x 18mm wide. Accepts up to 13.5mm dia. rope + generally 5mm dia. wire rope.
