Rigging Screw Toggle to Toggle (4 SIZES)
$39.08
(08705V)

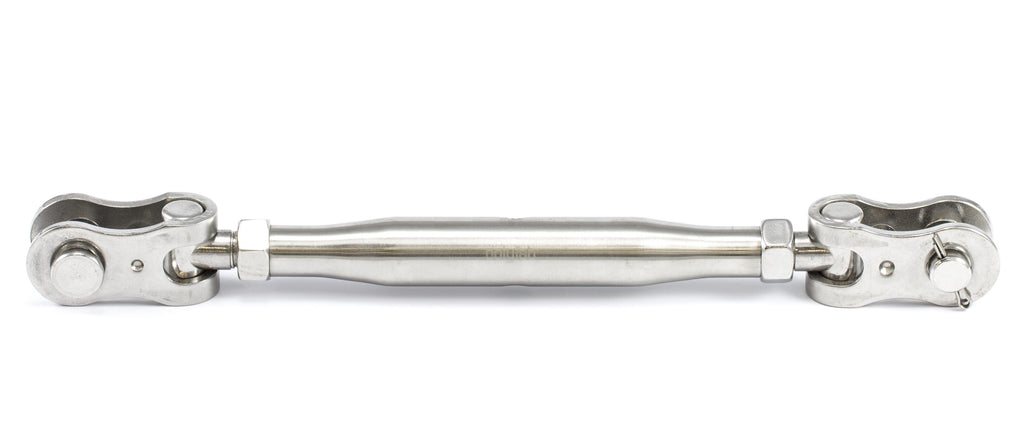

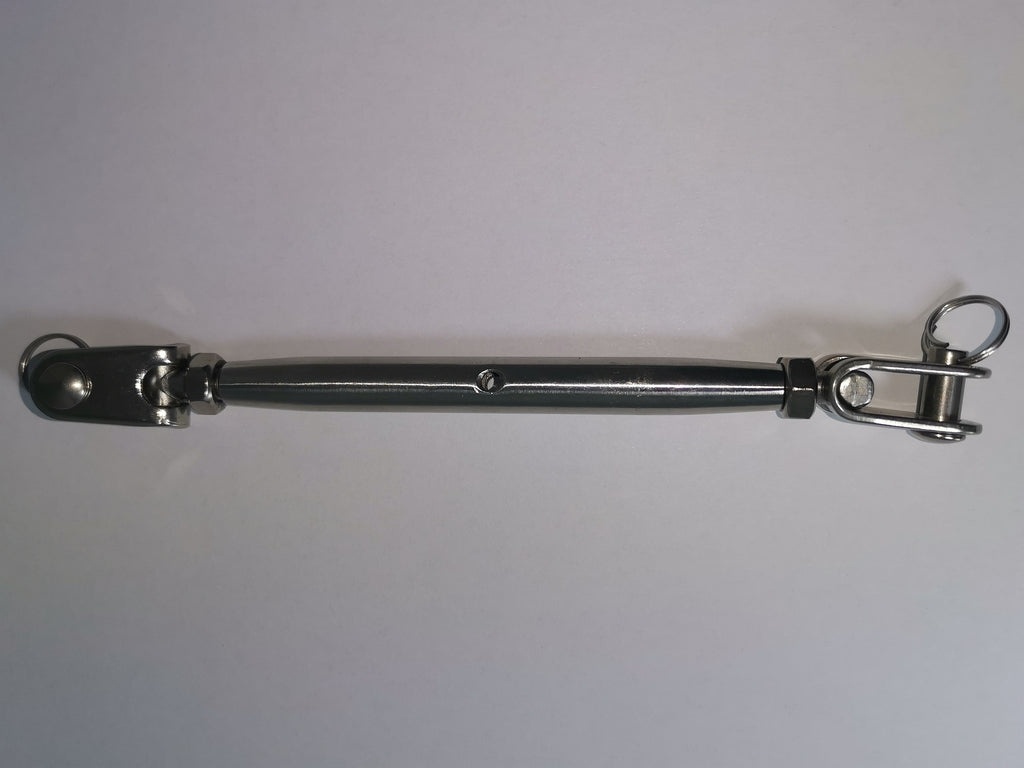

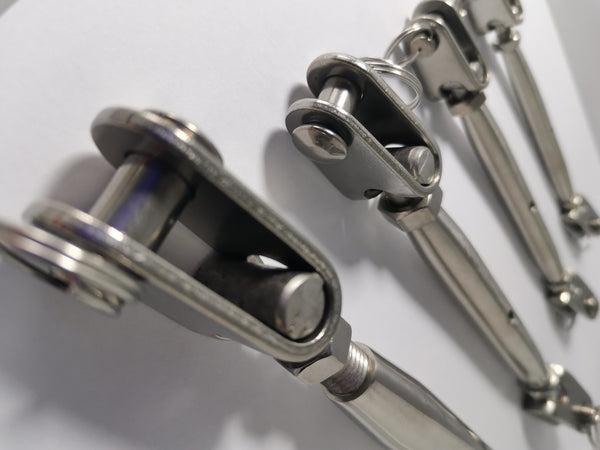

Rigging Screw Toggle to Toggle

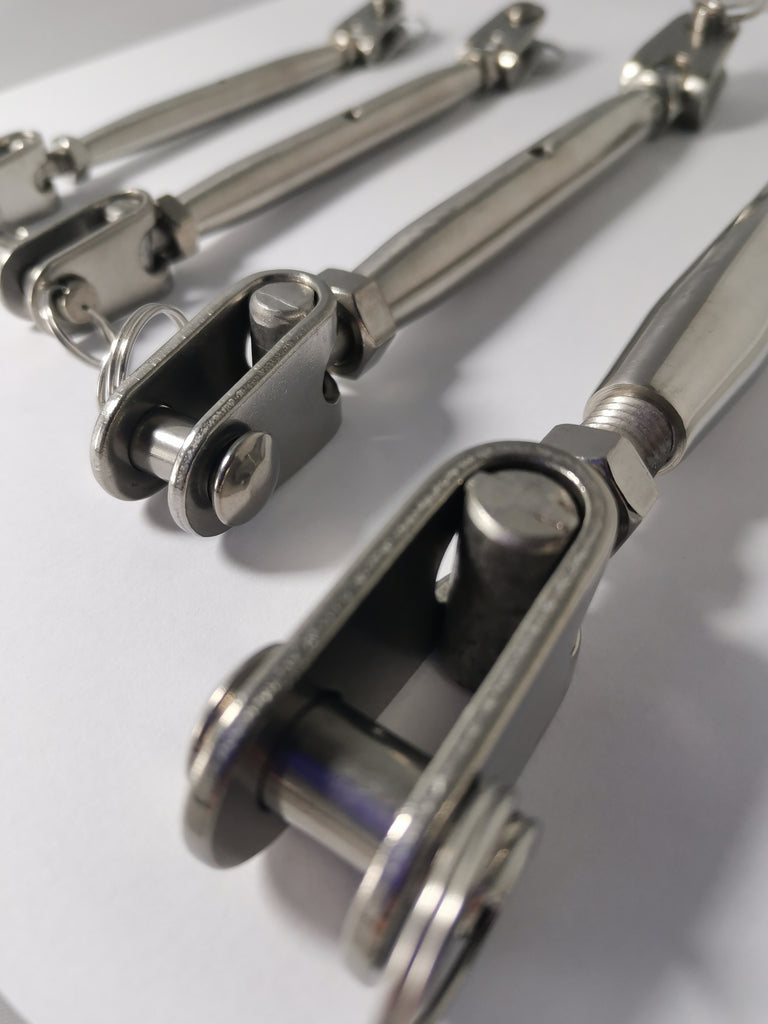

This all stainless steel rigging screw comes complete with toggles which acts as a universal joint and reduces strain on the turnbuckle. It also of course enables self alignment, and as stress comes on the wire or stay the knuckles allow the turnbuckle to self align and not bend as would a normal eye to eye configuration. The knuckle allows immediate connection to the eye end of your wire , so no shackle required.

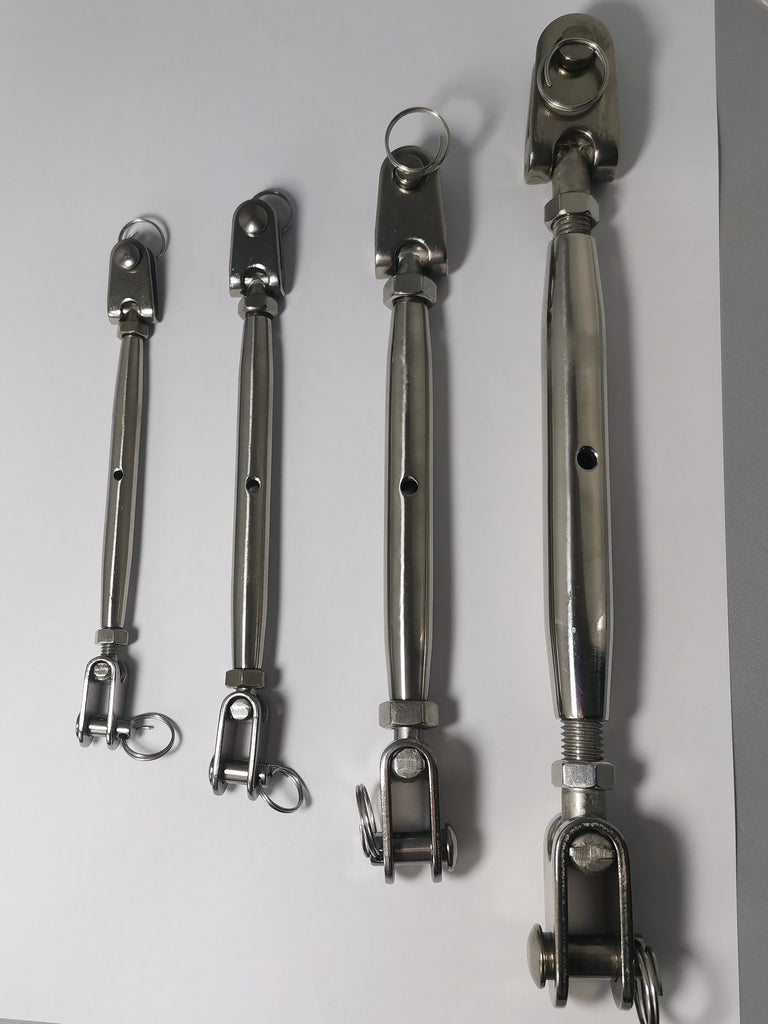

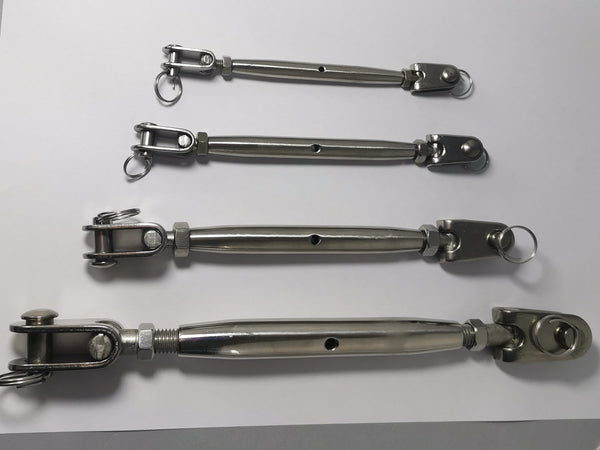

mm size = shaft diameter.

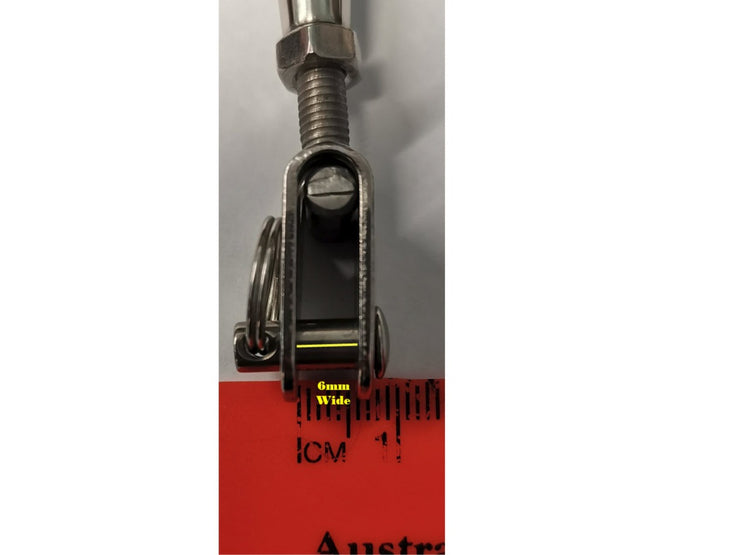

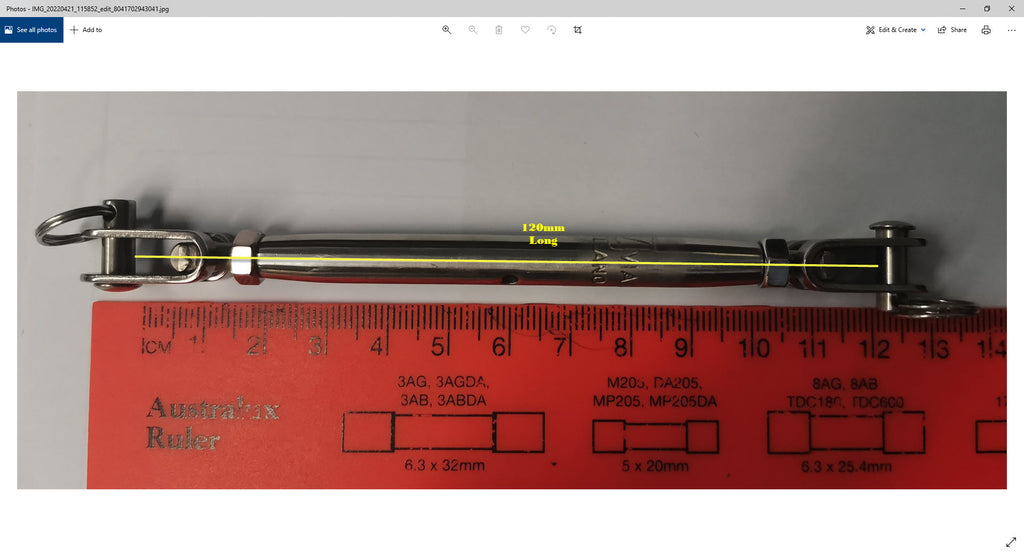

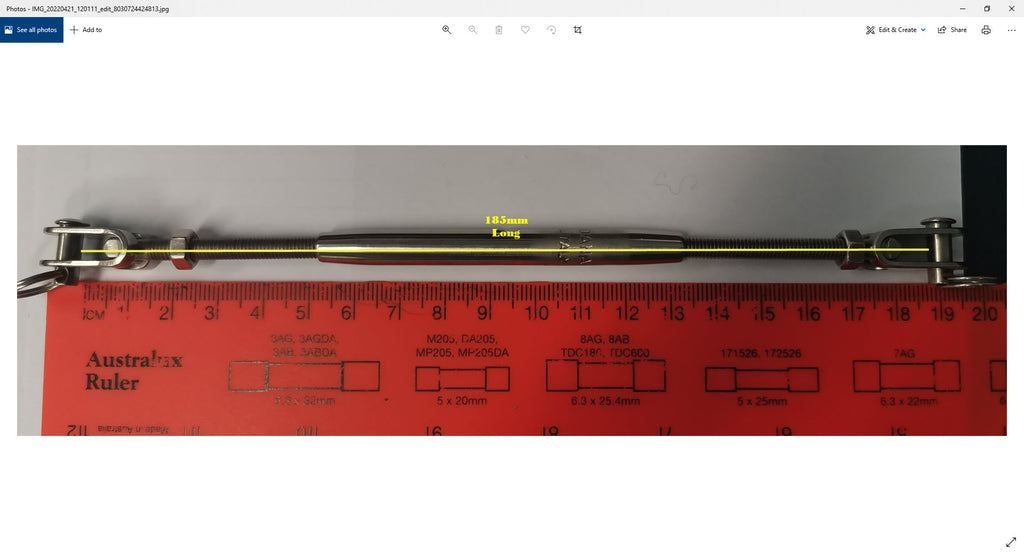

5mm (08705V) - 122mm long closed x 182mm long open 850Kg BL

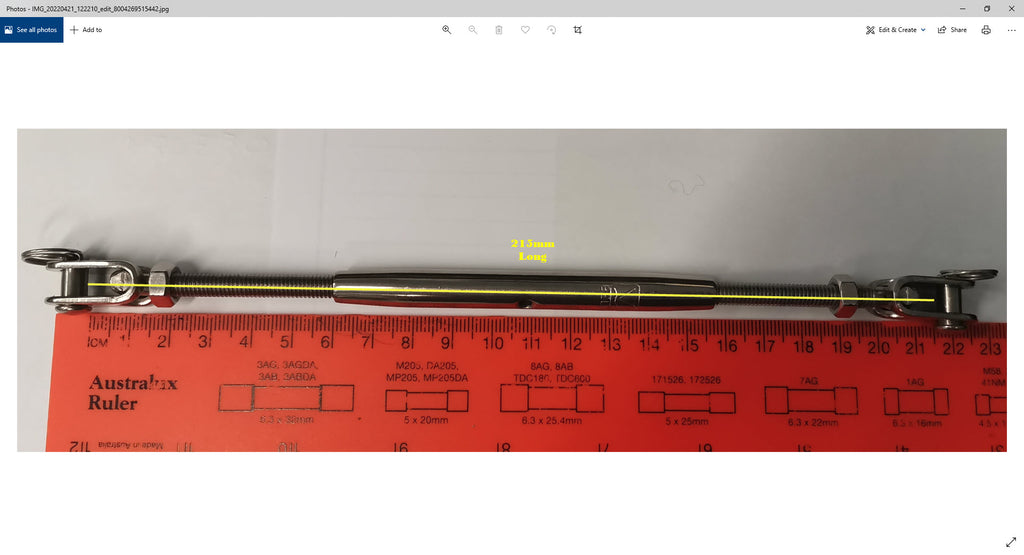

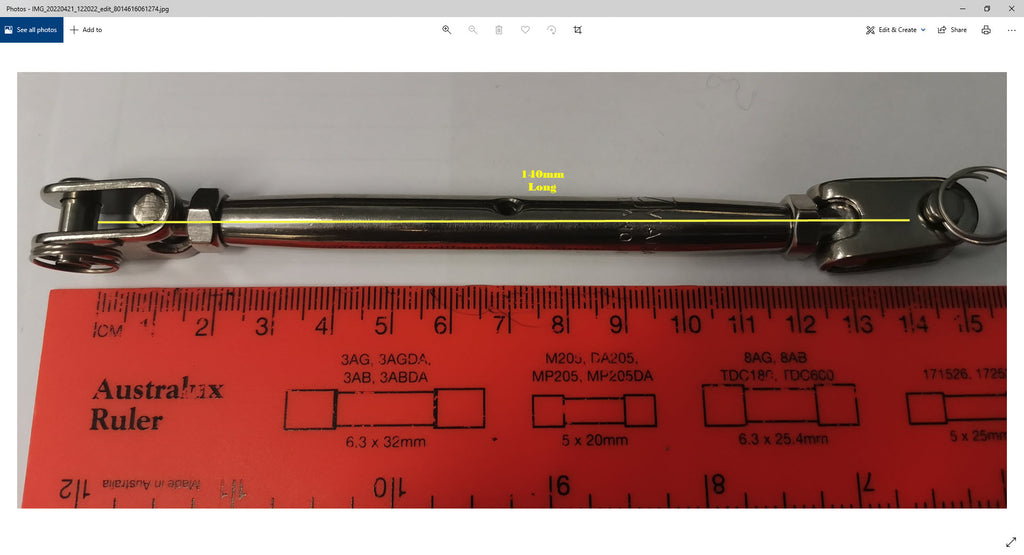

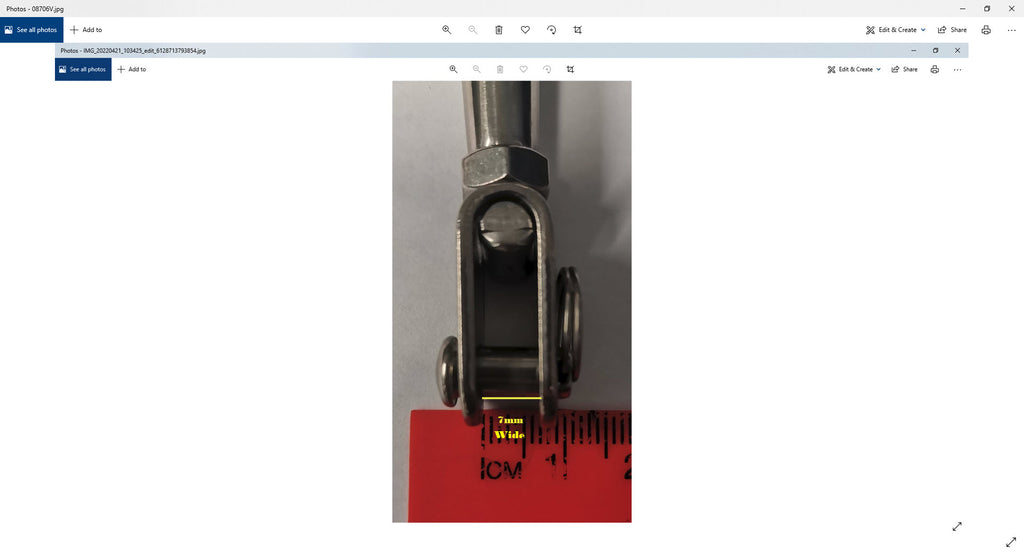

6mm (08706V) - 150mm long closed x 220mm long open 1500Kg BL

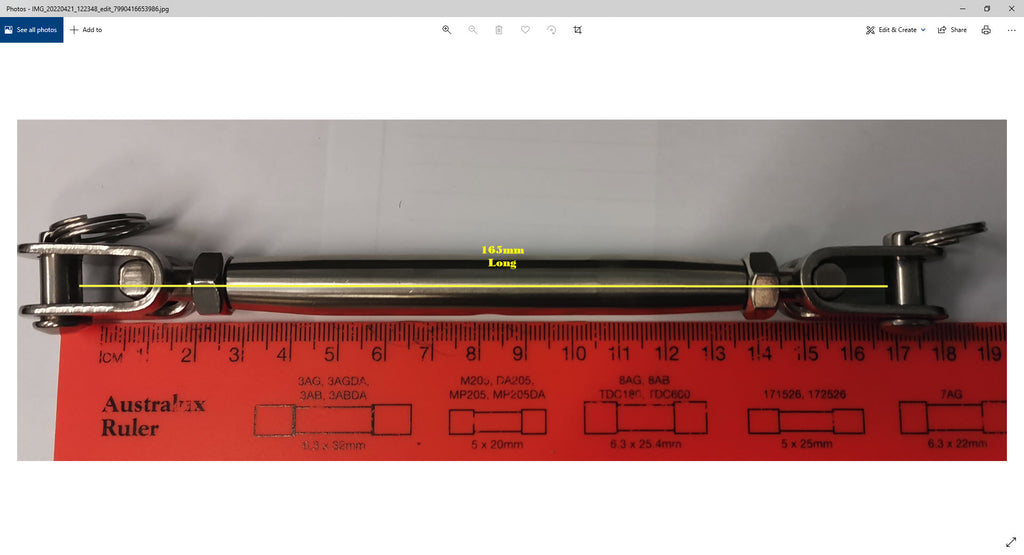

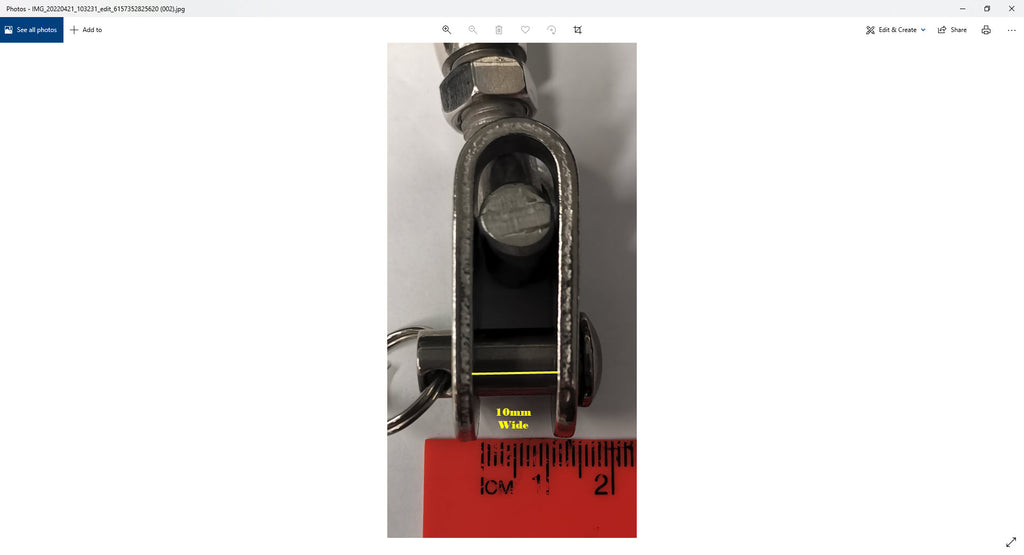

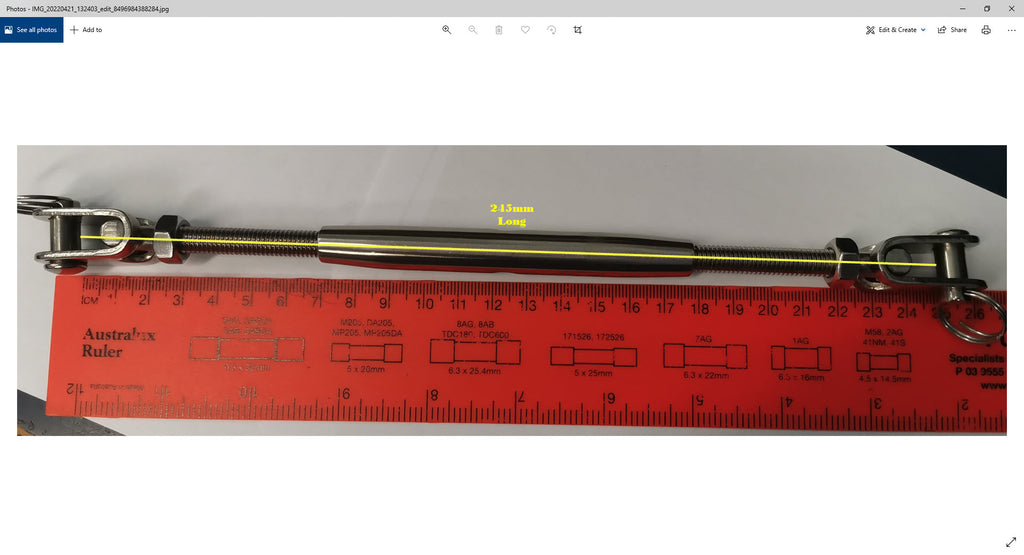

8mm (08707V) - 180mm long closed x 260mm long open 2200 KG BL

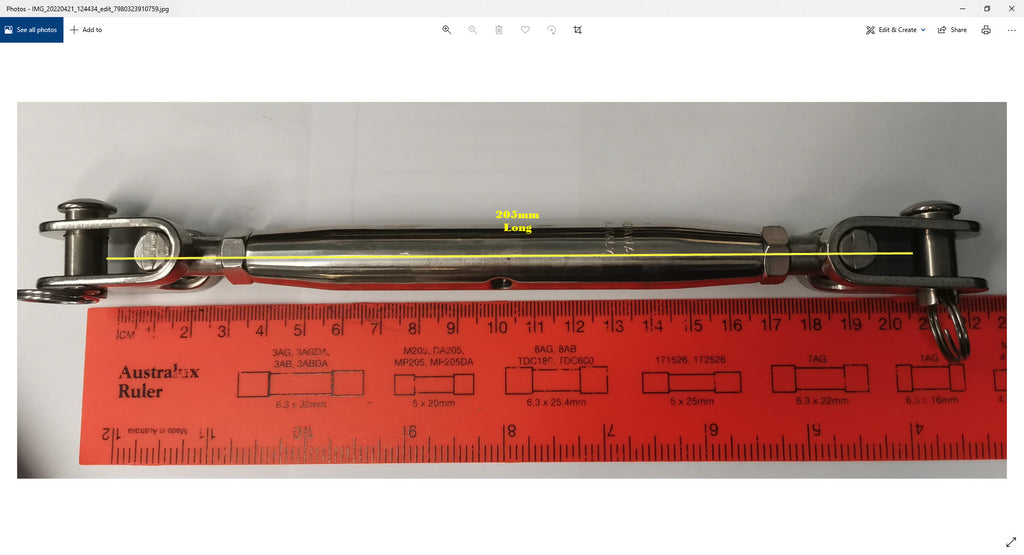

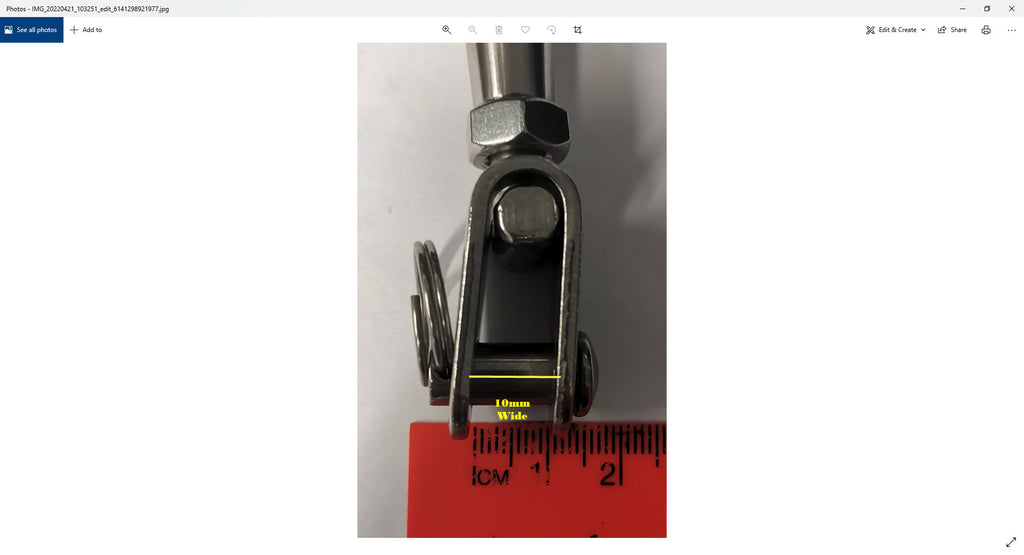

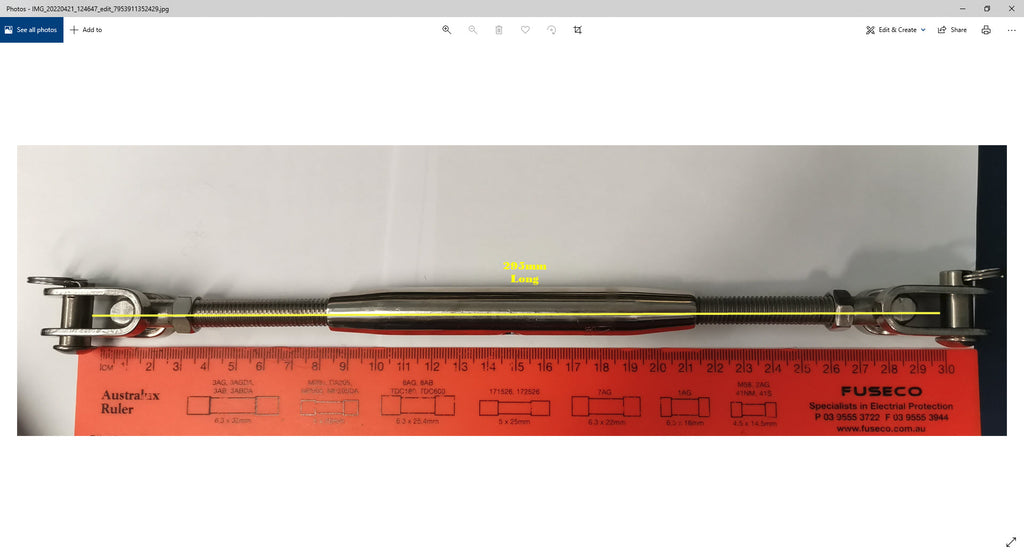

10mm (08708V) - 220mm long closed x 310mm long open 3300 Lg BL
