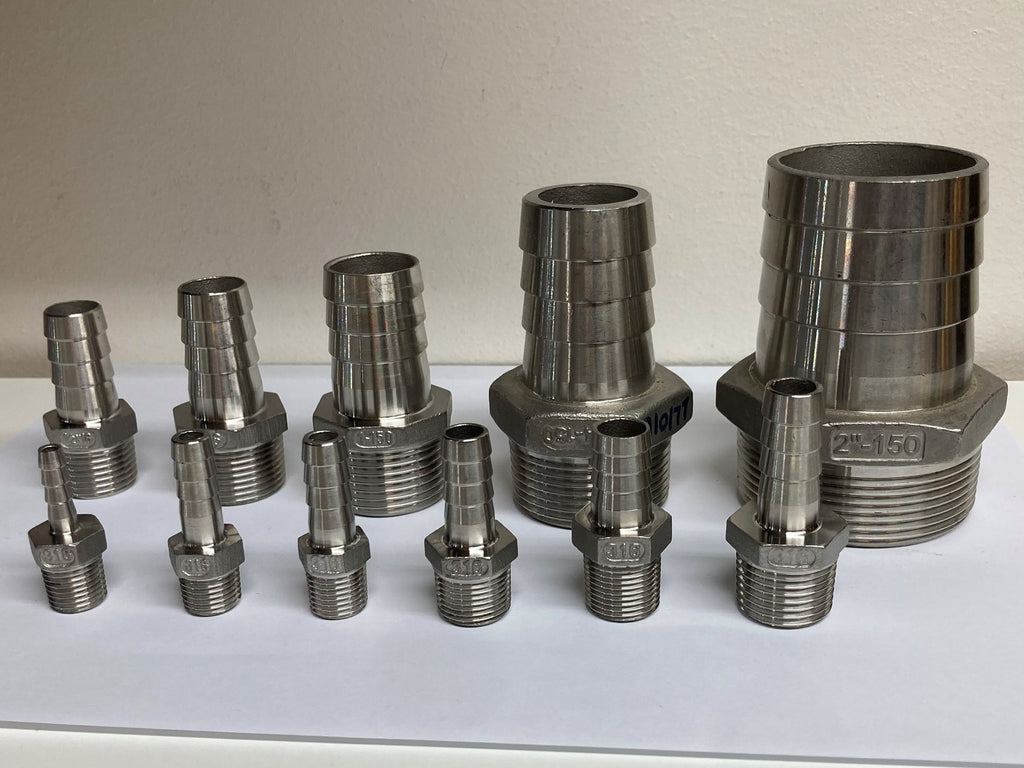

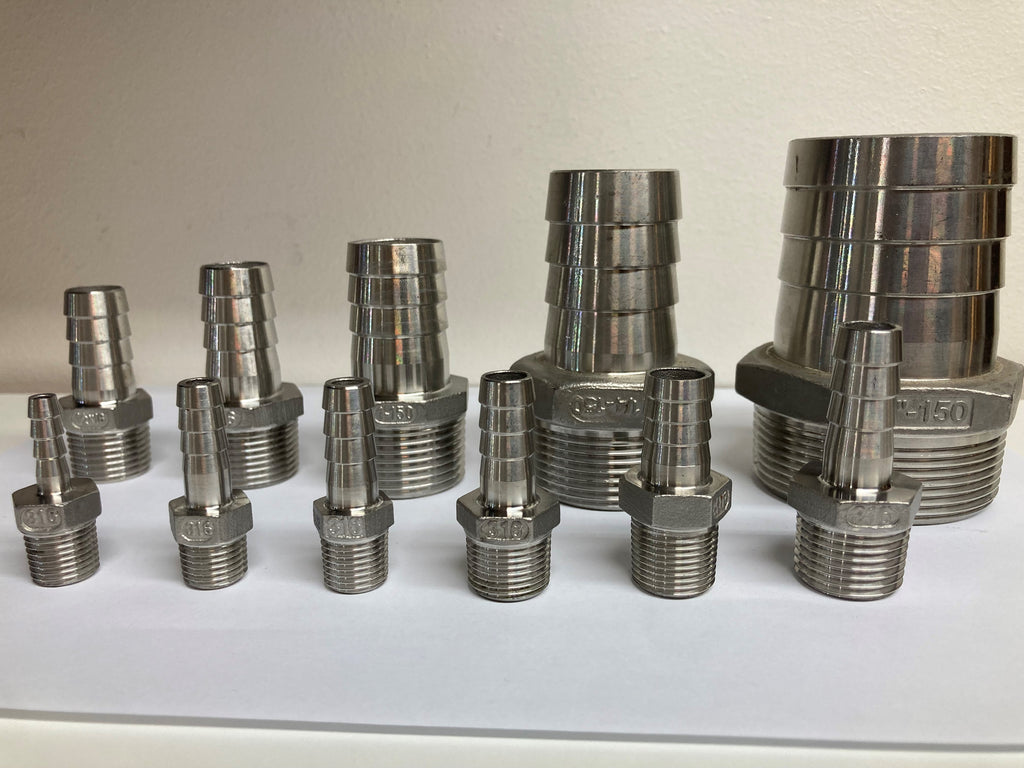

Hose Tail Stainless Steel (#316)


Stainless Steel Hose Tail bsp thread (matches all our ball valves and elbows) - these are normally used in our fuel lines and small water lines because of their smaller diameters. All are grade #316 s/s. A number of reducer enlargers are available to suit these also.

8 Sizes available:

M12109 - 1/4" bsp thread x 6mm Hose barb Tail (to suit 6mm internal dia hose)

M12109A - 1/4" bsp thread x 9mm Hose barb Tail (to suit 9mm internal dia hose)

M12109AA -1/4" bsp thread x10mm Hose barb Tail(to suit 10mm internal dia hose)

M12109B - 3/8"bsp thread x 10mm  Hose barb Tail (to suit 10mm internal dia hose)

M12109C - 1/2" bsp thread x12mm Hose barb Tail (to suit 12mm internal dia hose)

M12109CC -1/2" bsp thread x16mm Hose barb Tail (to suit16mm internal dia hose)

M12109D -3/4" bsp thread x18mm Hose barb Tail (to suit 18mm internal dia hose)

M12109E - 1" bsp thread x 25mm  Hose barb Tail (to suit 25mm internal dia hose)
