Skin Fitting, Ball Valve Load Collar

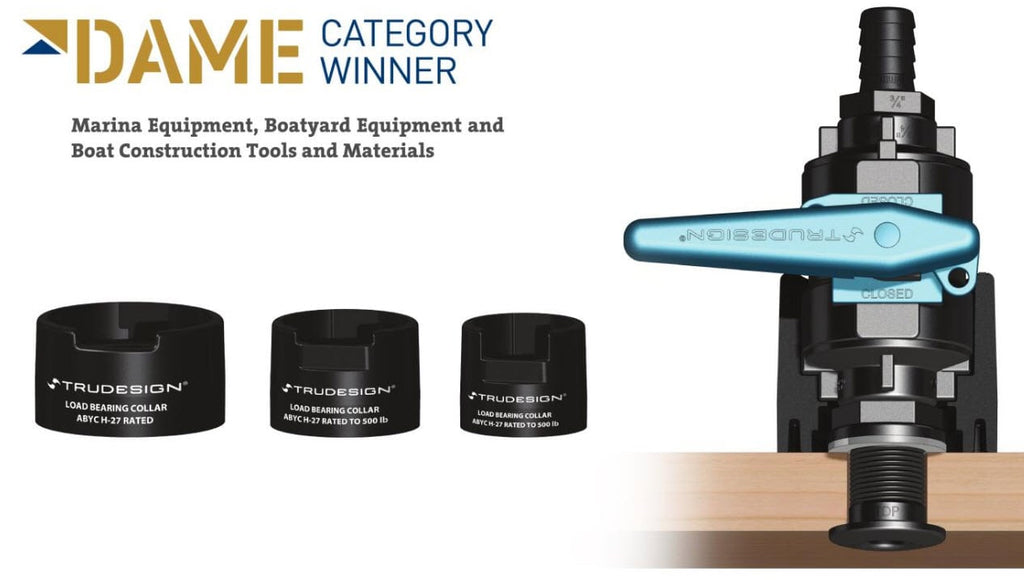

TruDesign Load Bearing Collars are designed for use with TruDesign Skin Fittings and Ball Valves.
With the Collar in place, the Skin Fitting-Ball Valve-Hose Tail assembly will withstand a 500 lb (227 kg) static force applied to the Hose Tail end of the assembly, for a minimum of 30 seconds – complying with North American ABYC H-27 standards.

Note: TruDesign 2" Skin Fittings meet the requirements of H-27 as standard (i.e. without a Large Collar installed). Adding a Large Collar to assemblies of this size increases the overall strength and protects the vulnerable exposed section of thread on the Skin Fitting.

Small Suits 3/4" (19mm) and 1" 25mm Skin Fittings (12901C)

Medium Suits 1 1/4" (32mm) 1 1/2" 38mm Skin Fitting (12903A)

Large Suit 2" 50mm skin fittings (12905C)
