Skin Fitting through hull with hose tail

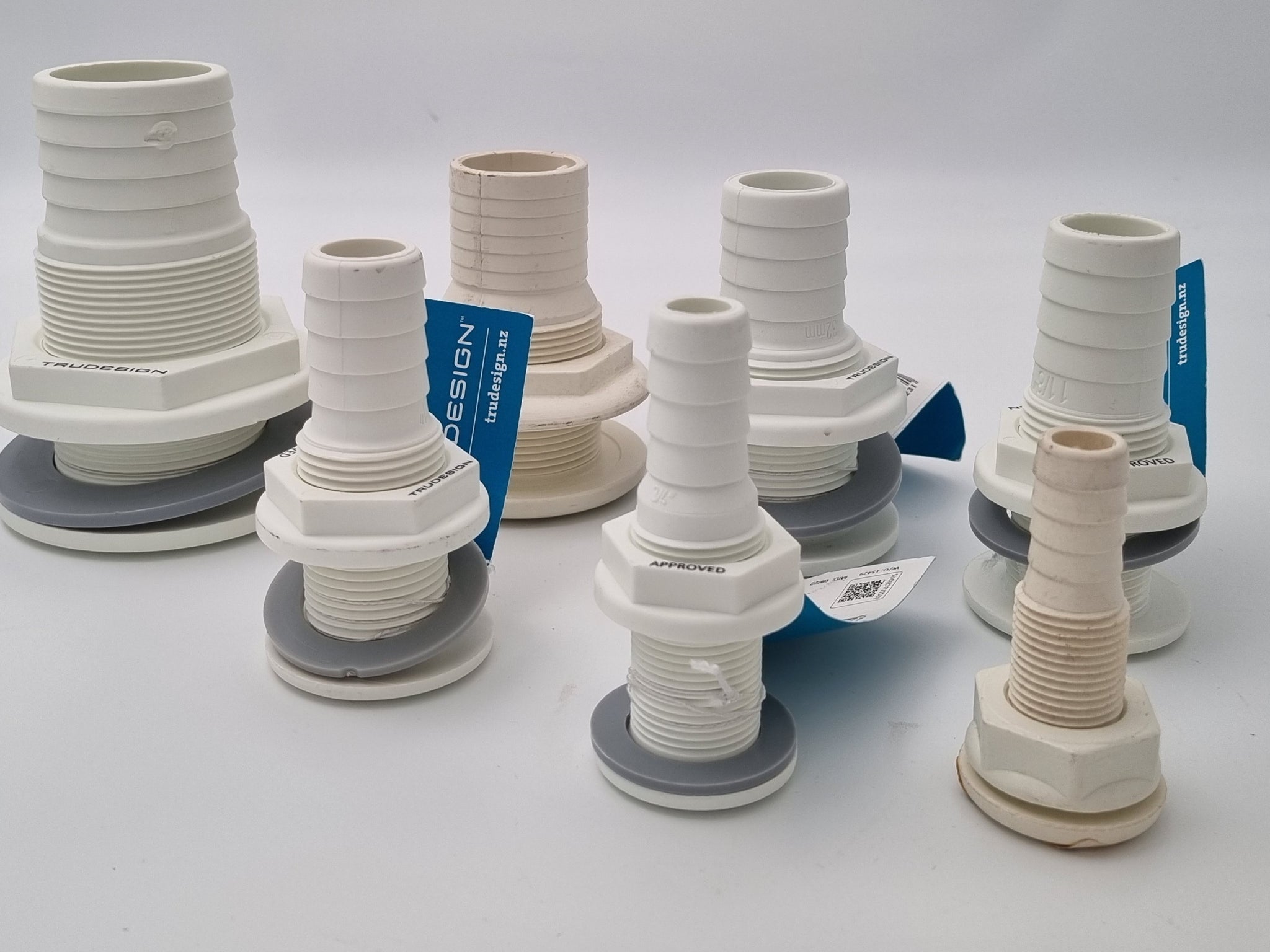

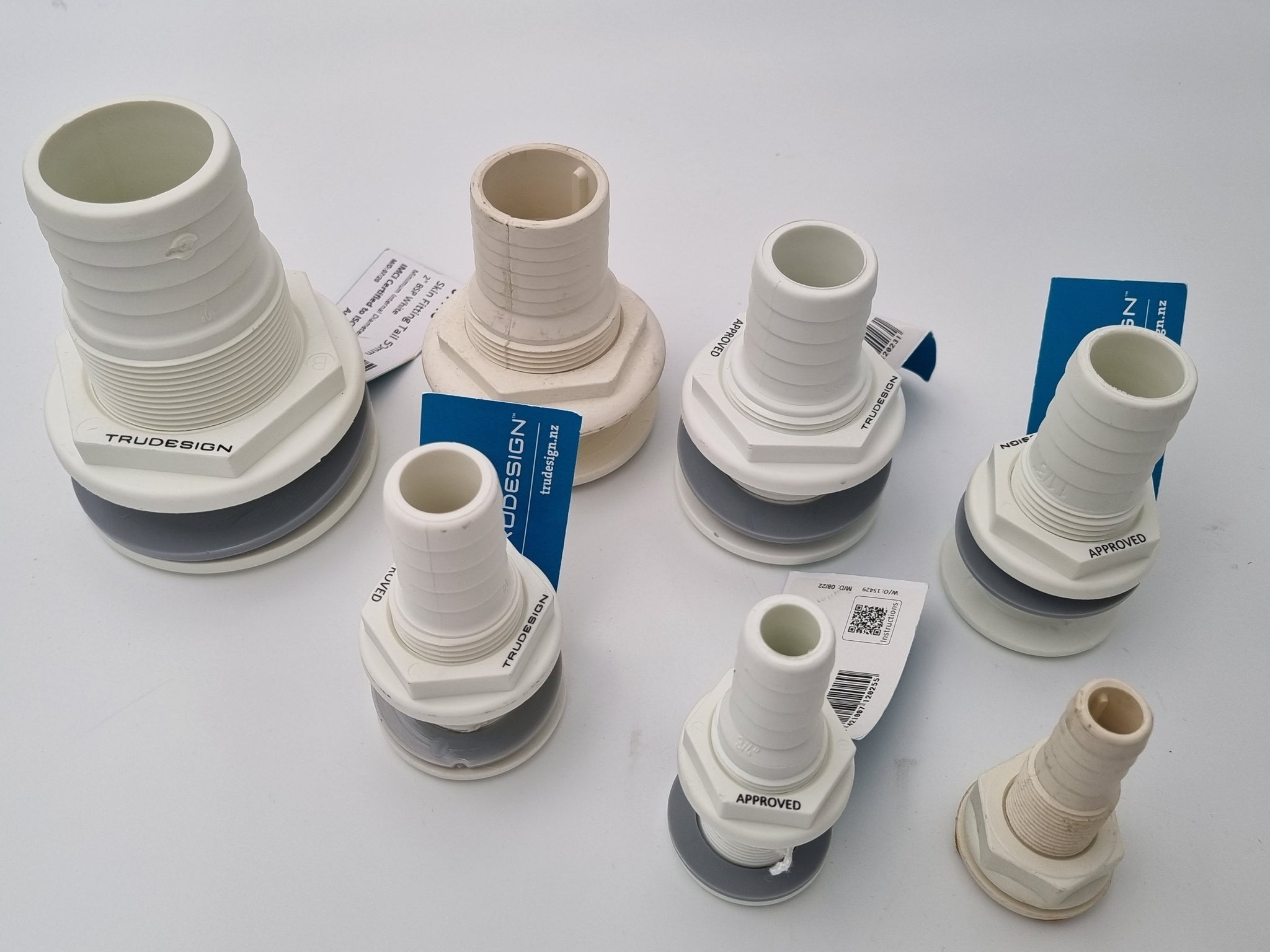

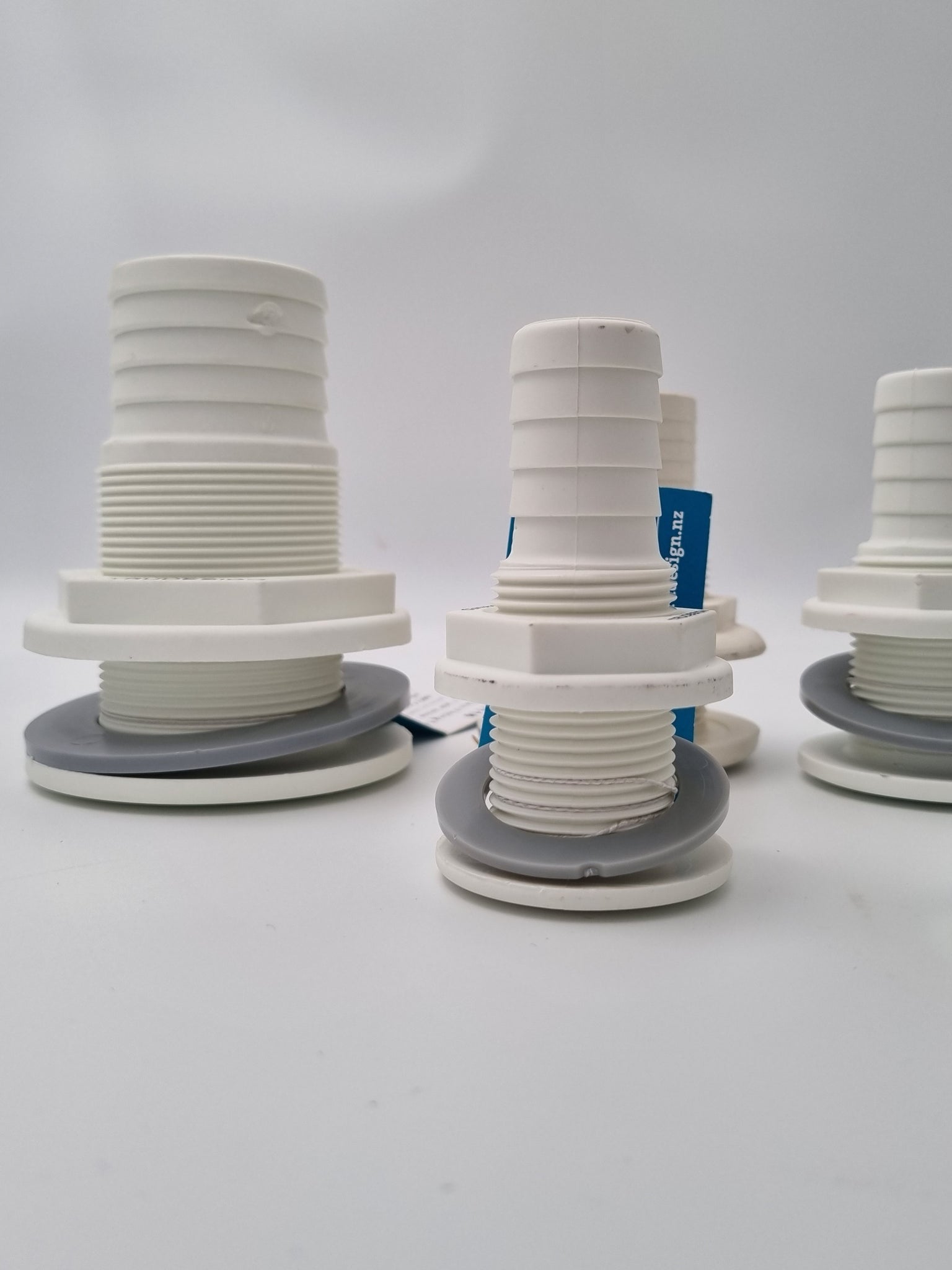

Skin Fitting with Hose Tail (7 sizes)

$6.83 NZD
12915

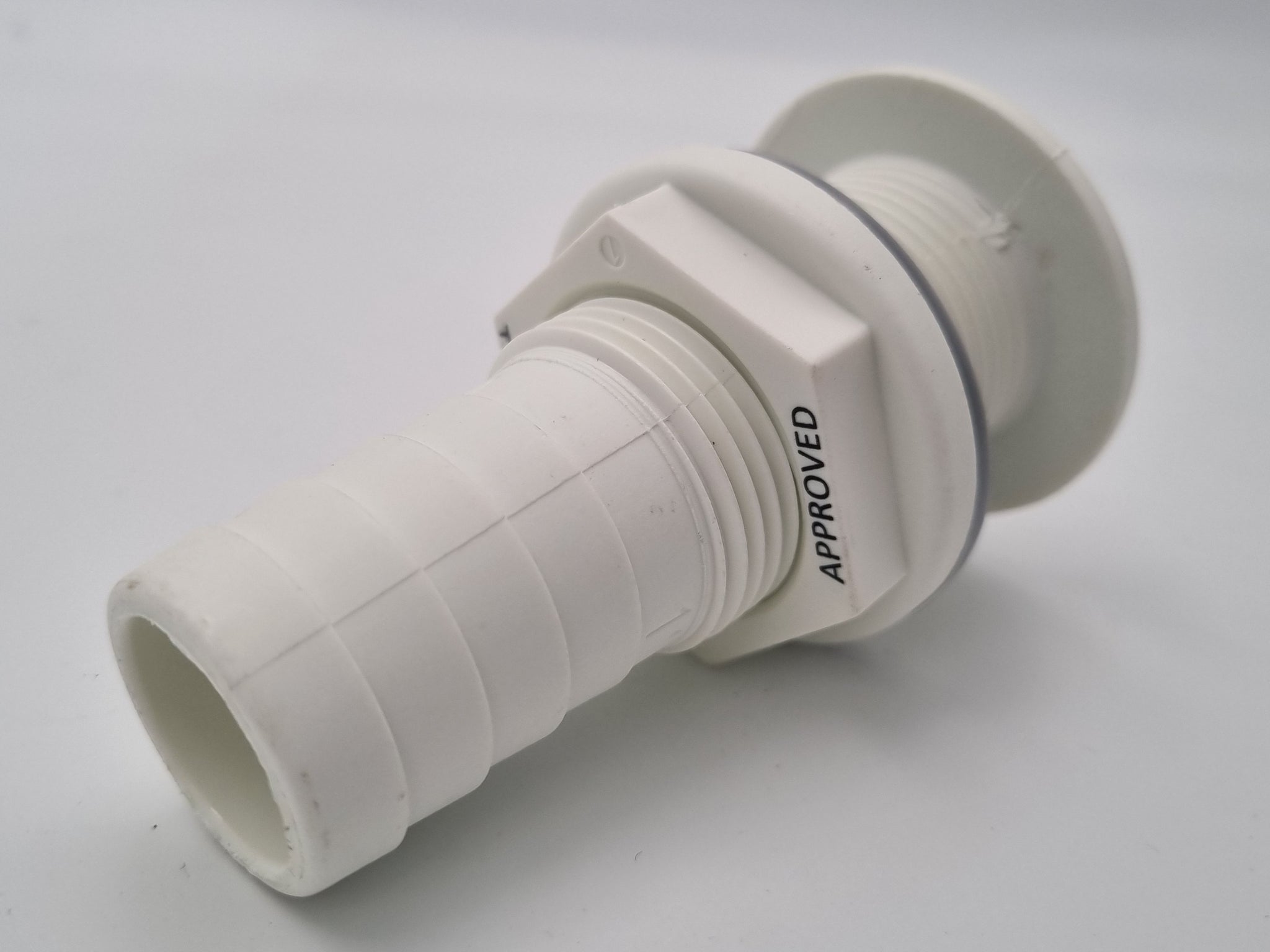

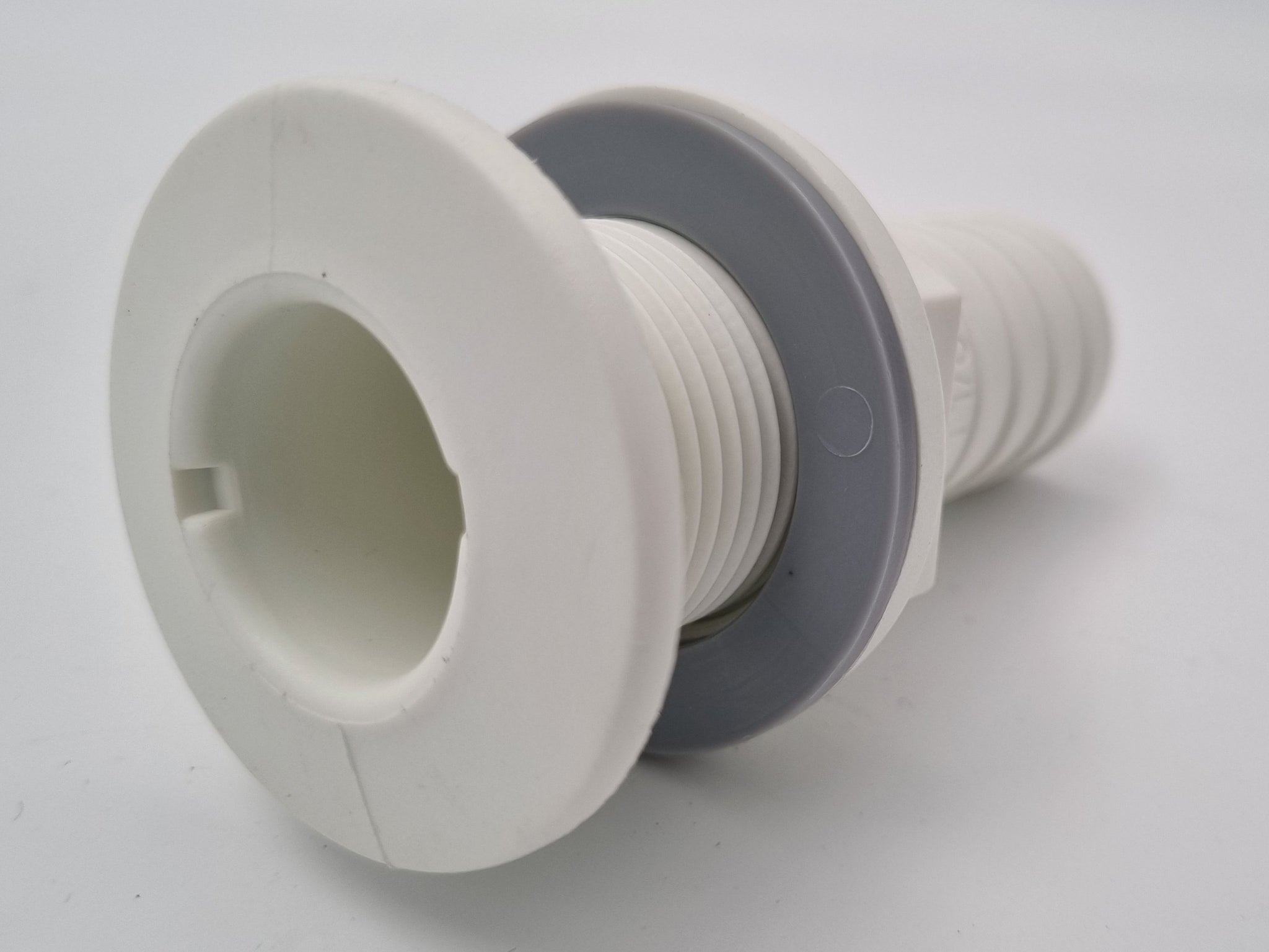

Skin Fitting with Tail

Manufactured from a glass reinforced nylon composite - High strength and light weight. Of course these produce no electrolysis problems associated with metal thru hull fittings.

Compatible with all hull types - Can be used on aluminium, steel, wood or GRP hulls

Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion

Chemical resistant - Impervious to diesel, petrol and paints

UV resistant - These fittings will not break down with ultraviolet light or discolour from the sun

High quality surface finish - Will not discolour with green film as similar bronze fittings do

Long Tail - Hose can be fitted with 2 hose clamps for a secure connection.

If in doubt as to your existing size, simply phone us with the outside diameter of your existing units and we can explain the BSP thread size. They have not changed in many,many years and while referred to by some people as metric (38/40mm etc) they remain in imperial sizes.

(1/2"bsp, 3/4"bsp, 1"bsp, 1 1/8" bsp, 1 1/4"bsp, 1 1/2"bsp, 2"bsp thread sizes)

A 1/2" bsp unit with a hose tail will accept a 1/2" internal diameter hose on the hose tail of the skin fitting. (sometimes referred to as 12 or 13mm) However, the hole size you drill in your hull for the 1/2" bsp skin fitting must be capable of taking the wider part where the thread is., in this case approx 22mm.

A 3/4" bsp unit with a hose tail will accept a 3/4" internal diameter hose on the hose tail of the skin fitting and so on with all sizes listed here. (sometimes referred to as 18 or 20mm) However, the hole size you drill in your hull for the 3/4" bsp skin fitting must be capable of taking the wider part where the thread is., in this case approx 28mm.

A 1" bsp unit with a hose tail will accept a 1" internal diameter hose on the hose tail of the skin fitting and so on with all sizes listed here. (sometimes referred to as 25mm) However, the hole size you drill in your hull for the 1" bsp skin fitting must be capable of taking the wider part where the thread is., in this case approx 34mm.

A 1 1/4" bsp unit with a hose tail will accept a 1 1/4" internal diameter hose on the hose tail of the skin fitting and so on with all sizes listed here. (sometimes referred to as 32mm) However, the hole size you drill in your hull for the 1 1/4" bsp skin fitting must be capable of taking the wider part where the thread is., in this case approx 44mm.

A 1 1/2" bsp unit with a hose tail will accept a 1 1/2" internal diameter hose on the hose tail of the skin fitting and so on with all sizes listed here. (sometimes referred to as 38mm) However, the hole size you drill in your hull for the 1 1/2" bsp skin fitting must be capable of taking the wider part where the thread is., in this case approx 49mm.

A 2" bsp unit with a hose tail will accept a 2" internal diameter hose on the hose tail of the skin fitting and so on with all sizes listed here. (sometimes referred to as 50mm) However, the hole size you drill in your hull for the 2" bsp skin fitting must be capable of taking the wider part where the thread is., in this case approx 60mm

1 1/8" (28mm) has been introduced to fit the american Rule bilge pumps

part numbers 12915,12916,12917,12917B,12918,12919,12920
