Stop Control Cable 11 sizes 3 styles

Diesel stop control cables / Choke cables / Fire extinguisher activation cables/heater flap controls.

Most likely you would use Model # 1 for where pulling only is required and your motor or the lever you are pulling has a pre built in spring that pulls the cable back after you have pulled it.  (such as a diesel control cable)

Or alternatively Model # 3 for instances where you need a solid core inner cable that has to pull and then push the lever you are activating back to its original position.

THREE MODELS

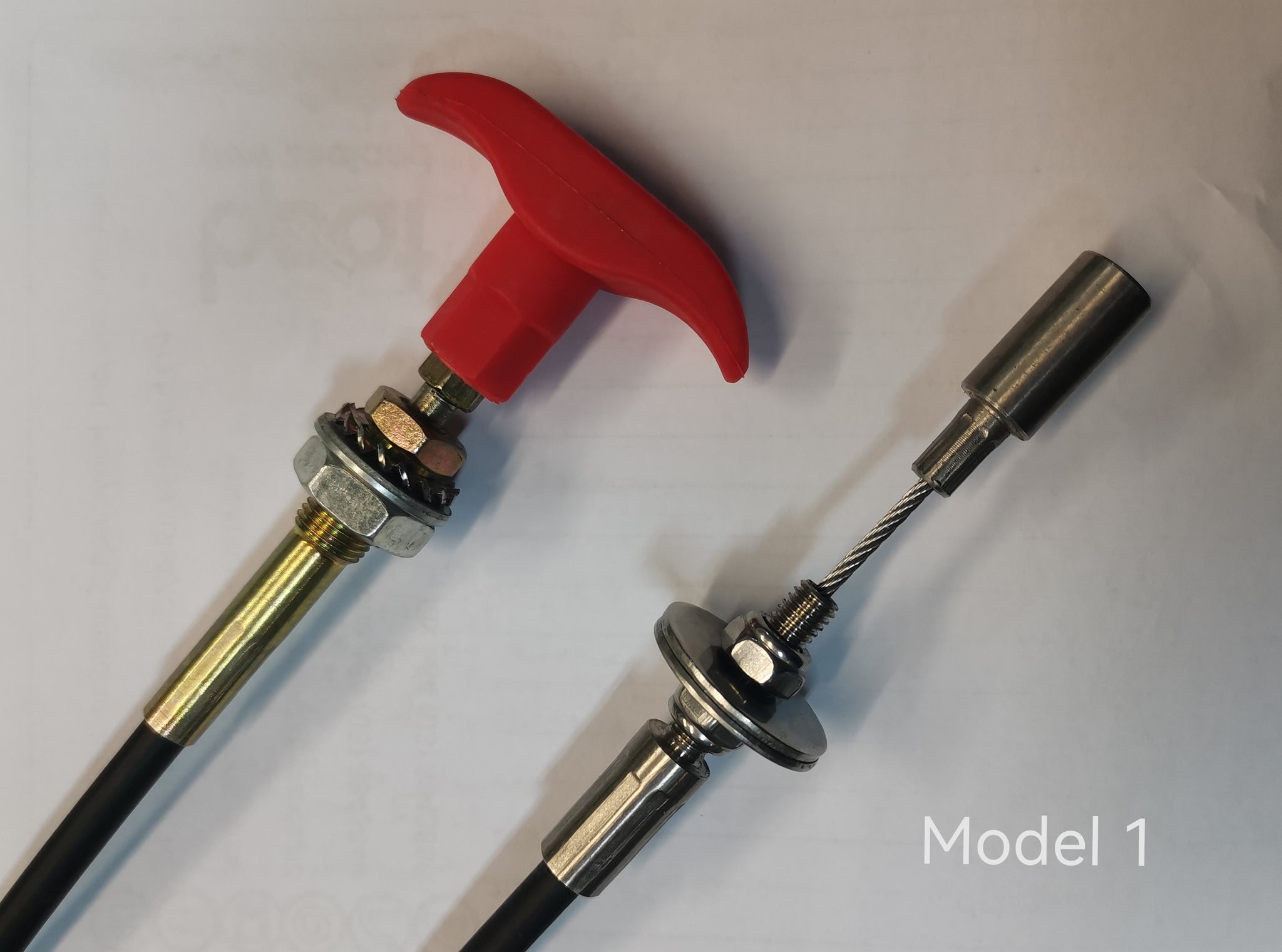

Model 1./

(19103A)- 5m

An integral tee handle (usually in black or red) is attached to the inner which consists of a flexible core stainless steel wire, (which allows pulling and the lever it is pulling would normally have a spring return).

Can be used as a choke control or anywhere a cable type operation to pull is required. (Often a diesel shut off cable).

Measurement is from the middle of the bulkhead where the handle is mounted to the end of the inner wire.

The end fitting differs in that it incorporates a female tube fitting that allows an 8mm bolt/stud/threaded rod to be screwed into the end.

OR

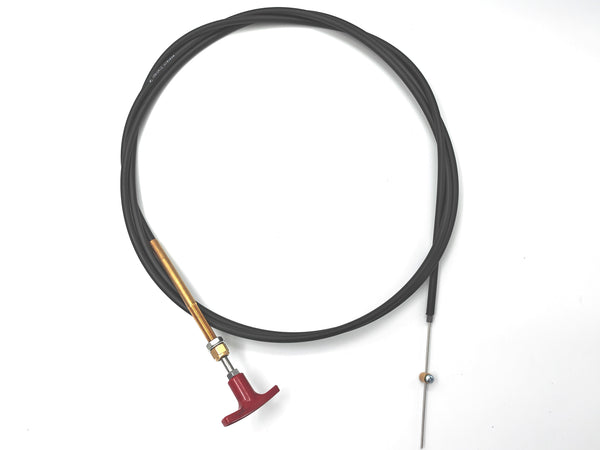

Model 2./

(19102X) - 1.3m

(19102W) - 3m

(19103) - 3.65m

(19103N) - 5.48m

(19103AB) - 6.5m

(19103P) - 6.7m

(19103Q) - 7.3m

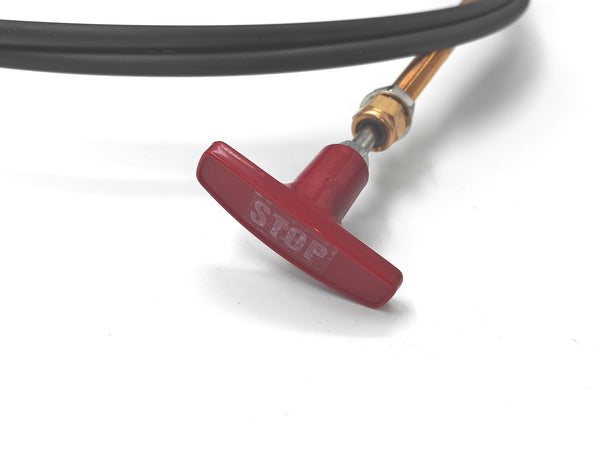

An integral tee handle (usually in black or red) is attached to the inner which consists of  a solid core stainless steel wire, (which allows pulling and pushing), so suitable for other uses and controls.

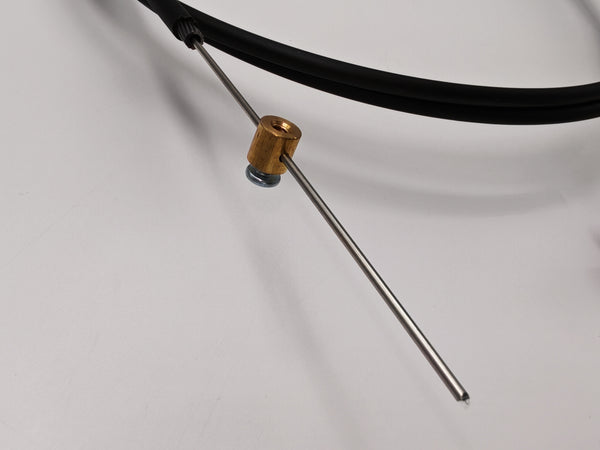

You can simply shorten the length of the inner cable by pulling the inner cable out and cutting to the correct length.

The tee handle is supported with a simple tube.

Also suits remote fire extinguisher control lines.

Allows a maximum of 75mm travel. Thread on the handle shaft allows for mounting in a bulkhead or panel.

Measurement is from the middle of the bulkhead where the handle is mounted to the end of the inner wire.

OR

Model 3./

(19102T) - 1.5m

(19102V) - 2.5m

(19103AC) - 6.5m

An integral tee handle (usually in black or red) is attached to the inner which consists of a flexible core stainless steel wire, (which allows pulling and the lever it is pulling would normally have a spring return).

Can be used as a choke control or anywhere a cable type operation to pull is required. (Often a diesel shut off cable).

Measurement is from the middle of the bulkhead where the handle is mounted to the end of the inner wire.

The end fitting differs in that it incorporates a female tube fitting that allows an 8mm bolt/stud/threaded rod to be screwed into the end.
