Toggle Switch On - Off - On - SPDT

$15.31
(20902A)

Toggle Switch On - Off - On - SPDT (Contacts Rated 20A @ 12V)




































































Unit of Measure EACH
Description Toggle Switch On - Off - On - SPDT (Contacts Rated 20A @ 12V)
Warranty 1Y
Number of Terminals 3
Power Rating (Amp) 20
Switch Action On - Off - On - SPDT
Voltage 12
Lamp Colour/s Not Applicable

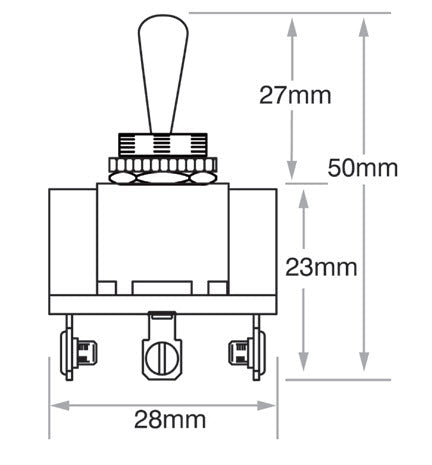

Mount Diameter 12mm
Mount Length 6mm
Number of Poles 1
Number of Positions 3
Switch Type Toggle
Weight .04kg
Switch Illumination Non Illuminated
Features • SPDT, silver contacts, screw terminals.
• Amperage rating 20A @12V, 10A @ 24V.
• Mounting opening12.5mm diameter.
• Panel mount.
