Jabsco Manual Toilet (2 bowl sizes)


Jabsco is the world's largest manufacturer of small craft marine toilet systems and have applied all their experience into our latest Manual Toilet refining the design that is used by Many boatbuilders worldwide.

For extra safety and peace of mind the intuitive, simple to use, Twist 'n' Lock action handle guards against syphonic flooding and waste backflow. With one easy 90° turn of the handle, the lock is applied. Turning the handle back to the natural operating position opens the lock again.

Model No.: 29090 and 29120
    • Twist 'n' Lock safety handle and flush control lever.
    • Powerful swirl action for efficient flushing.
    • Full sized external seal housing allows quick clean seal replacement and instant access to pump cylinder.
    • Powerful self-priming pump for above or below waterline installation.
    • Crevice free contours and smooth mouldings for added hygiene.
    • Automatic vacuum breaker for easier pumping.
    • Angled pump housing and long stroke for more comfortable operation.

Part Numbers 13503,13504

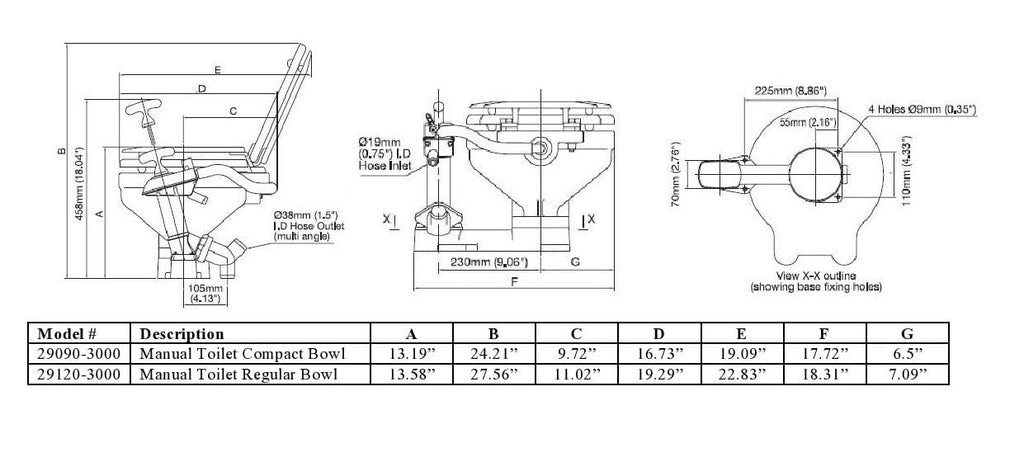

Compact Bowl 450mm W x 410mm D x 340mm H. 9.5kg.

Standard Bowl 470mm W x 480mm D x 350mm H. 11.7 kg
