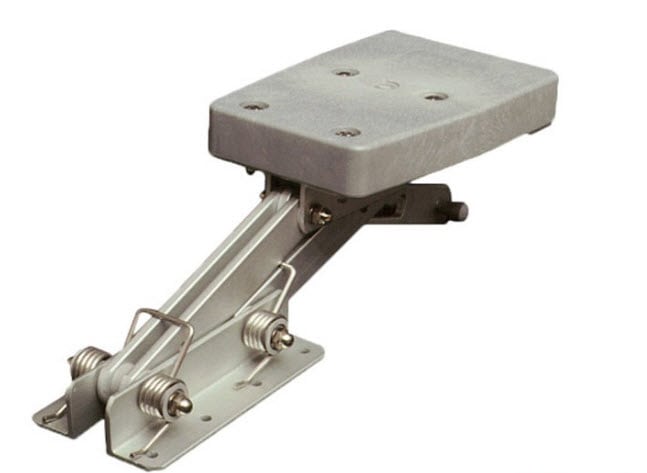

Transom Mount Auxilliary Bracket (Rise and Fall)

$616.97
(17304)

Three separate positions to suit your requirements, giving a total distance from rise to fall of 340mm.

Accepts outboards up to 10hp.

Simply bolt it to the transom and it provides absolute safety with a construction of marine grade aluminium with s/s fastenings.

Light duty application. Anodised aluminium. Black plastic clamp board.

10hp/7.5kw (2 stroke) or 38kg maximum (long shaft models 8hp max.).Five vertical adjustment positions

Vertical movement: 340mm.

Reach (set back): 320mm.

Mounting 133mm wide x 230mm high.

Supplied complete with stainless steel bolts (65mm long), nuts and washers.
