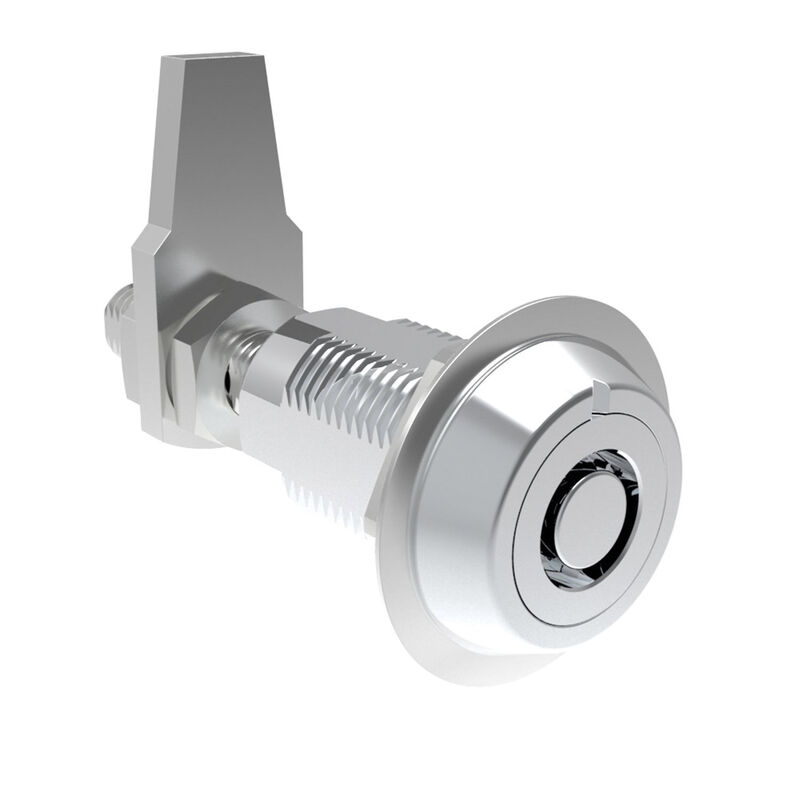

Compression latch Tubular Twist Handle Vise Action locking

$263.30
M14421C

VISE ACTION® Compression Latches provide mechanical advantage, ensuring tight, vibration resistant door closure to seal out water and dust, while allowing easy access with a choice of key and tool security options.

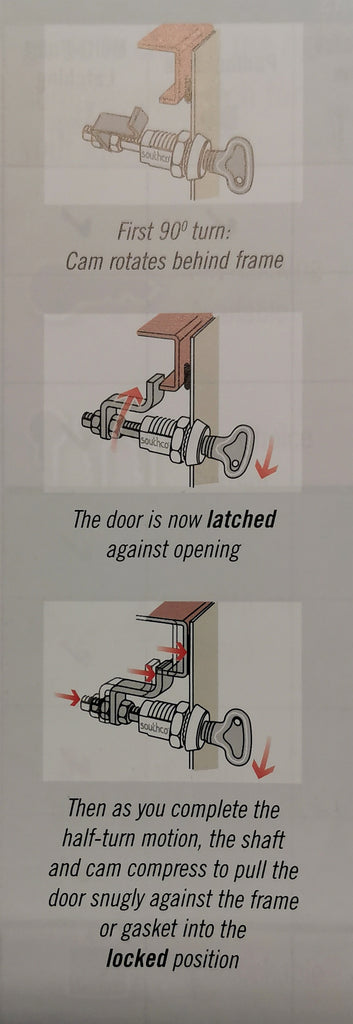

The smooth operation of the VISE ACTION® design aligns the cam behind the frame and draws it up tight with a single continuous half-turn motion.

Whole mechanism is water proof and all stainless steel,

So the first 1/4 turn of the key, turns the tab 90 degrees and locks it in place, while the last quarter turn compresses and pulls the tongue up firmly.

Easy grip adjustment. Simply the best locking compression latch in low profile we have.

Tool, or hand operated key is purchased separately and is part steel/ part s/s.

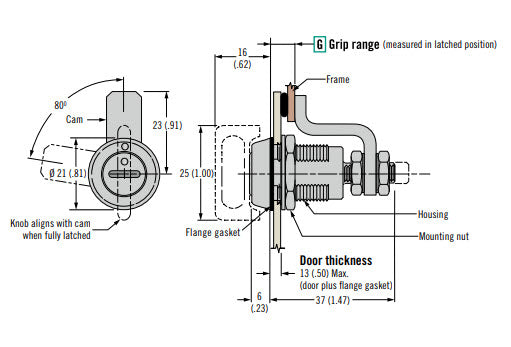

Max Outer Panel Thickness (mm) 18.00 mm
Grip - Minimum (mm) 16.40 mm
Grip - Maximum (mm) 32.20 mm
Grip - Minimum (Cam Reversed) (mm) 71.30 mm
Grip - Maximum (Cam Reversed) (mm) 81.20 mm

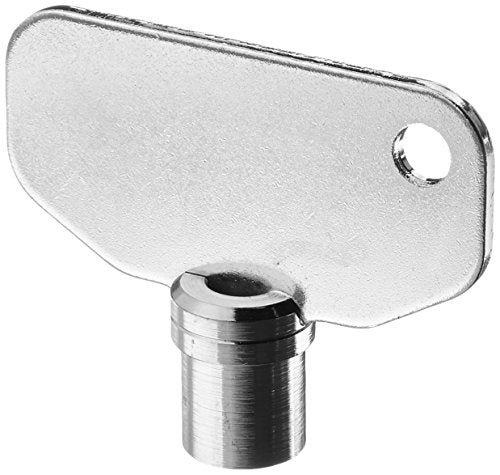

Suits  Tubular Key (M14421D)
