Automatic Bilge Switch auto-off-manual 12V/24V


Bilge Switch To Operate an automatic bilge pump.

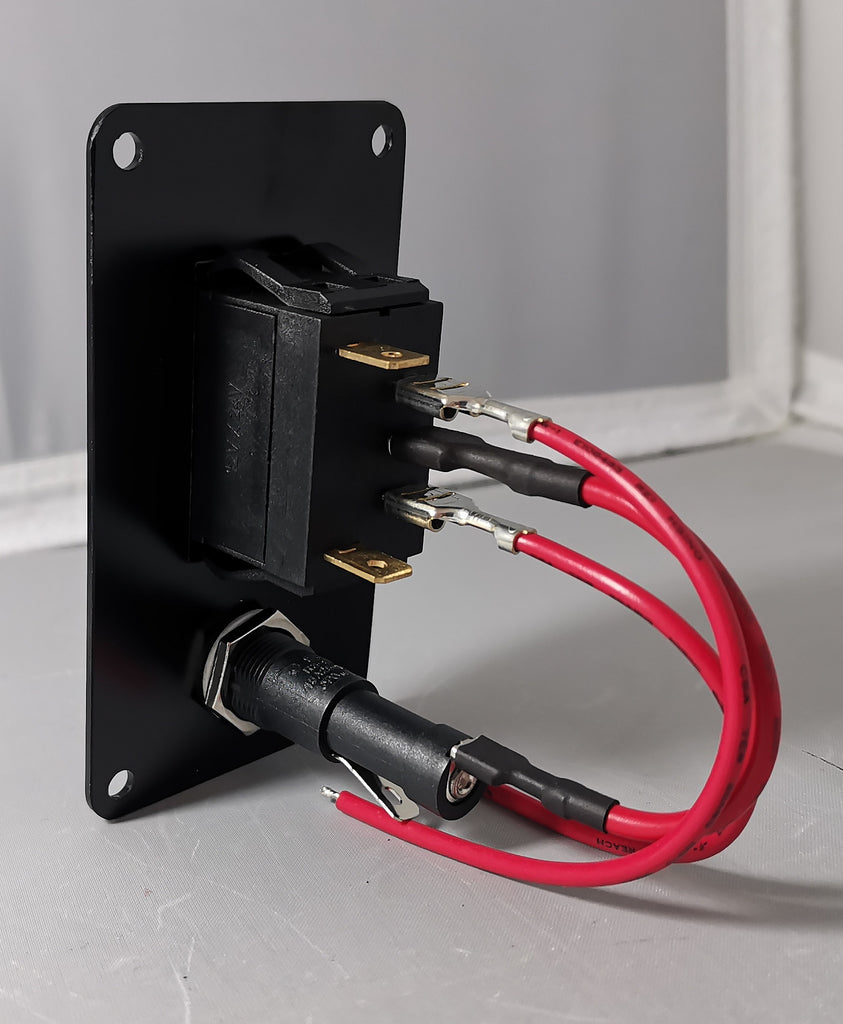

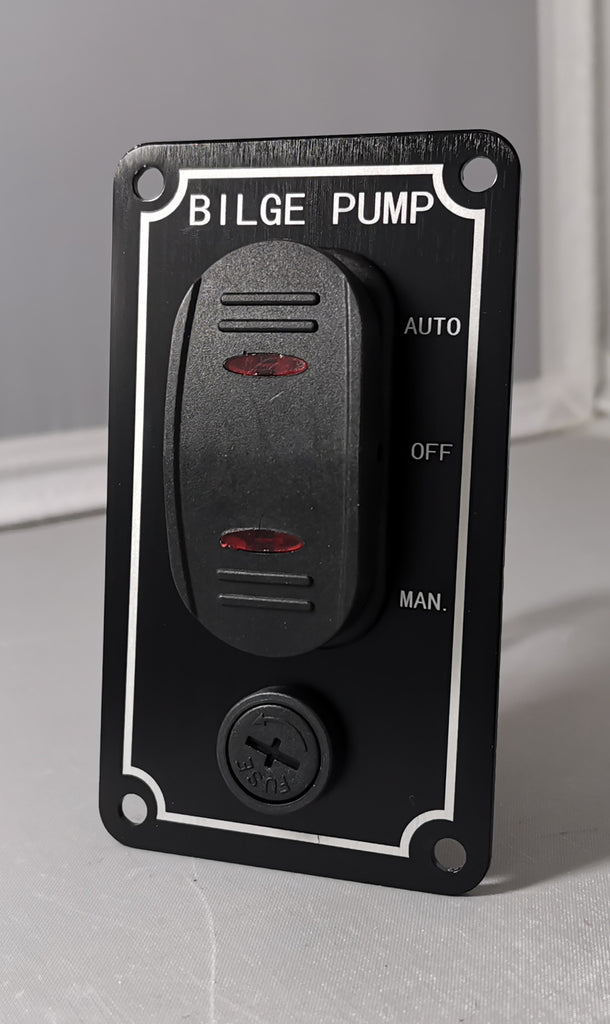

This Bilge Pump Switch is a black textured alloy switch panel for use in controlling bilge pumps. Three position illuminated waterproof rocker switch for auto, off and spring return manual setting. suits both 12 and 24 volt systems. 60mm depth required behind panel. Vertical configuration.

The unit can be used with a submersible bilge pump and float switch to switch the your pump from automatic to manual, to off. Alternatively used in conjunction with a submersible bilge pump that has an integral float switch built into it.

An integral fuse holder (fuse supplied) allows quick checking of faults and or swapping of fuse when necessary

Size: Outside black panel measures 50mm x 88mm, while the hole in the dash needs to be 28mm x 69mm.
